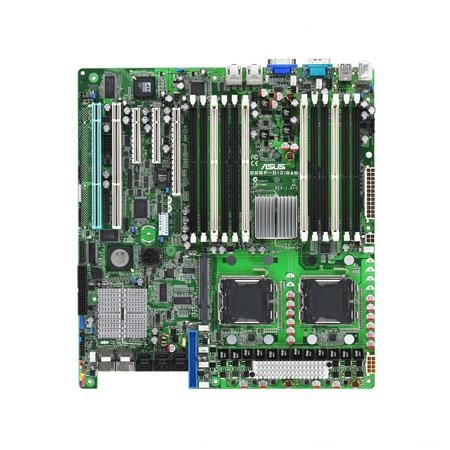

ASUS DSBF-D12/SAS Dual/Quad Core Intel®Xeon®
Model DSBF-D12/SAS Dual/Quad Core Intel®Xeon®Part no. DSBF-D12/SASEAN 610839143122
28 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- RAID levels0, 1
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- RAID levels
- 0, 1
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- DSBF-D12/SAS Dual/Quad Core Intel®Xeon®
- Part numbers
- DSBF-D12/SAS, 90-MSVAU0-G0UAY00T
- EAN / UPC
- 610839143122, 4719543143124
- Also known as
- ASUS DSBF-D12/SAS Dual/Quad Core Intel®Xeon® Intel® 5000P LGA 771 (Socket J) SSI EEB
Specifications
28 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 48 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82563EB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® 5000P |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Other features
| Specification | Value |
|---|---|
| RAID controller type | Intel 6321 ICH |
