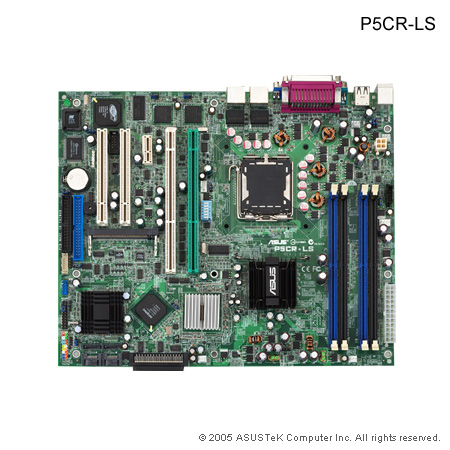

ASUS Desktop Board P5CR-LS Retail
Model Desktop Board P5CR-LS RetailPart no. 13556
29 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Maximum graphics card memory8 MB
- Motherboard form factorATX
- Storage temperature (T-T)-40 - 70 °C
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Maximum graphics card memory
- 8 MB
- Motherboard form factor
- ATX
- Storage temperature (T-T)
- -40 - 70 °C
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- Desktop Board P5CR-LS Retail
- Part number
- 13556
- Also known as
- ASUS Desktop Board P5CR-LS Retail LGA 775 (Socket T) ATX
Specifications
29 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x Broadcom PCI-Express BCM5721 GB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Compatible operating systems | Windows: - Win 2000 Server SP4 - Microsoft Win 2003 - Microsoft Windows Server 2003 Enterprise Server EMT64 Edition - Microsoft Windows 2000 Server - Win 2003 Ent SP1 x32 - Win 2000 Adv Server SP4 - Win 2003 Std SP1 x32 Unix / Linux: - Red Hat Enterprise Linux AS 3.0 - Red Hat Enterprise Linux AS 3. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x 64bit/100MHz PCI-X 1 x PCI-E 2 x 32bit/33MHz PCI |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 241 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| Graphics controller | ATI RAGE-XL |
| I/O ports | 1 x Floppy Connector 1 x MiniPCI Socket 6 x Fan 3 x SMBus 1 x Chassis Instruction 2 x Front LAN LED |
