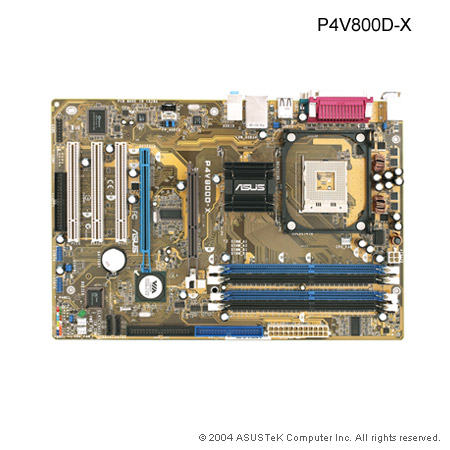

ASUS Desktop Board P4v800d-x
Model Desktop Board P4v800d-xPart no. 14107
30 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, JBOD
- Networking featuresRealtek 10/100 Mbps Ethernet LAN
- Motherboard form factorATX
- BIOS memory size32 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, JBOD
- Networking features
- Realtek 10/100 Mbps Ethernet LAN
- Motherboard form factor
- ATX
- BIOS memory size
- 32 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- Desktop Board P4v800d-x
- Part number
- 14107
- Also known as
- ASUS Desktop Board P4v800d-x Socket 478 ATX
Specifications
30 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Pentium® 4 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 10/100 Mbps Ethernet LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Compatible operating systems | Windows: - Win 2000 Server SP4 - Microsoft Win 2003 - Microsoft Windows Server 2003 Enterprise Server EMT64 Edition - Microsoft Windows 2000 Server - Win 2003 Ent SP1 x32 - Win 2000 Adv Server SP4 - Win 2003 Std SP1 x32 Unix / Linux: - Red Hat Enterprise Linux AS 3.0 - Red Hat Enterprise Linux AS 3. |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X 1 x PCI Express x16 (x4 mode only) 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 208 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | - Drivers - ASUS PC Probe - Anti-Virus |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
