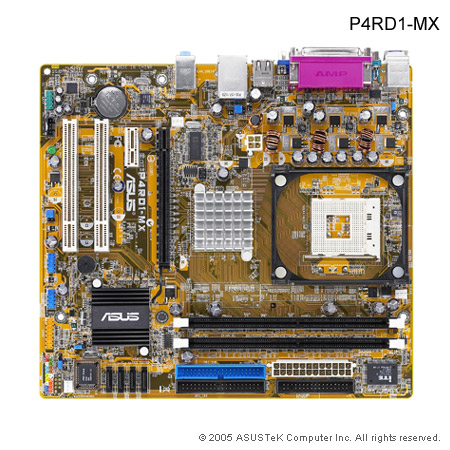

ASUS Desktop Board P4rd1-mx
Model Desktop Board P4rd1-mxPart no. 14112
41 specifications
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1, 0+1, JBOD
- Maximum graphics card memory128 MB
- USB 2.0 ports quantity4
- Networking featuresReltek RLC8201CL 10/100
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, JBOD
- Maximum graphics card memory
- 128 MB
- USB 2.0 ports quantity
- 4
- Networking features
- Reltek RLC8201CL 10/100
- Brand
- ASUS
- Category
- Motherboard
- Model
- Desktop Board P4rd1-mx
- Part number
- 14112
- Also known as
- ASUS Desktop Board P4rd1-mx Socket 478 micro ATX
Specifications
41 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Compatible processor series | Intel® Pentium® 4 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 128 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | No |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Reltek RLC8201CL 10/100 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 98, 2000, Me, XP, 2003 Linux |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | PCI Express x16 PCI Express x1 PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 218.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus |
Other features
| Specification | Value |
|---|---|
| Audio output | ADI AD1986A |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Graphics controller | ATI Radeon X300 |
