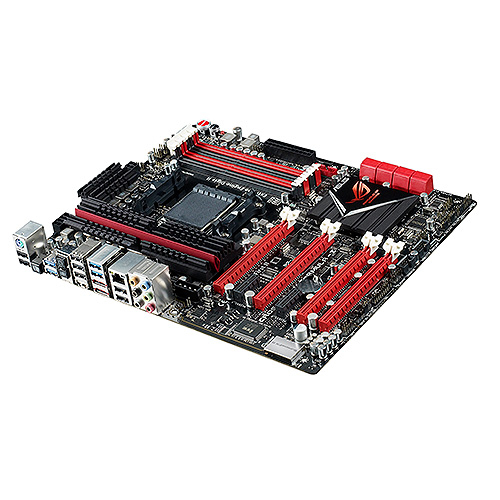

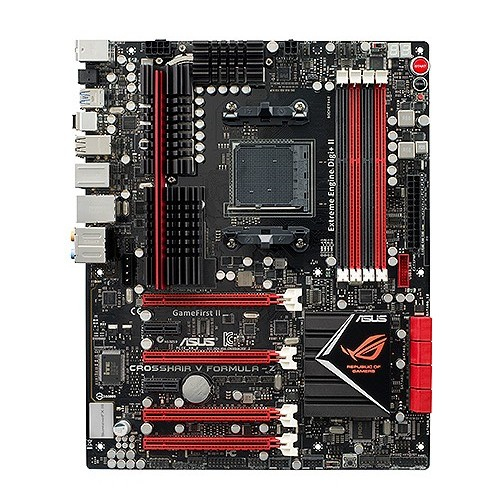

ASUS Crosshair V Formula-Z

ASUS Crosshair V Formula-Z

Model Crosshair V Formula-ZPart no. 90-MIBFM0-G0EAY0VZEAN 610839188628

64 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics cardNo
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card
No
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
Crosshair V Formula-Z
Part numbers
90-MIBFM0-G0EAY0VZ, 90-MIBJ70-G0EAY0VZ
EAN / UPC
610839188628, 112840337724, 4058154178607, 4719543188620 +3 more
Also known as
ASUS Crosshair V Formula-Z AMD 990FX Socket AM3+ ATX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3+
Compatible processor seriesAMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors1
System bus rate5.2 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1800,2000,2133,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI, Quad-GPU SLI
On-board graphics cardNo
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

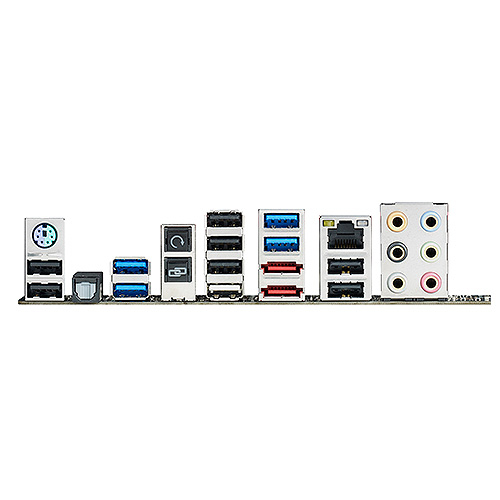

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Overclocking featuresROG Connect Digi+ II GameFirst iROG Extreme Tweaker COP EX ASUS C.P.R.

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots4
PCI Express configurations2x1, 2x16+2x8
PCI Express slots version2.0

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedCrossFire, SATA
Drivers includedYes
Bundled softwareGameFirst II Kaspersky Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z ASUS WebStorage ASUS Utilities

Other features

Controller 2nd interface typeASMedia ASM1061
Controller interface typeAMD SB950
Audio output6
Quick installation guideYes
