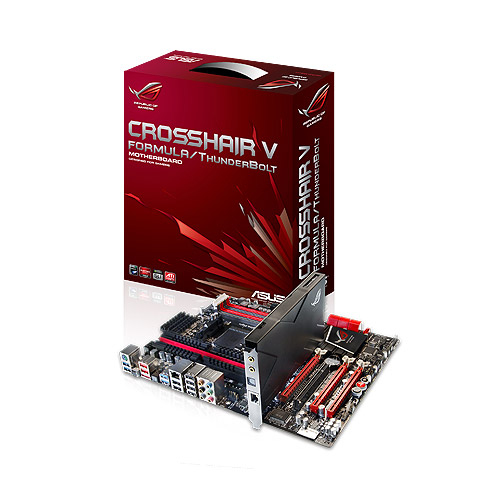

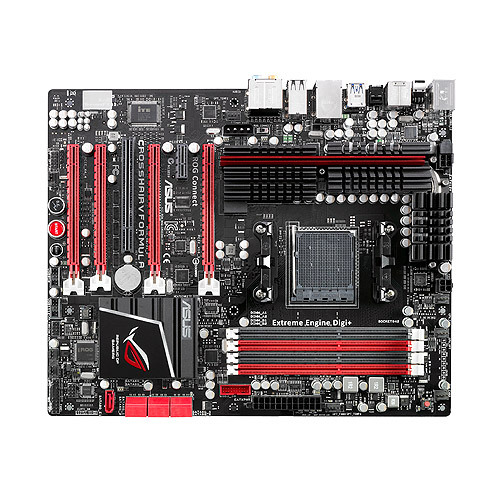

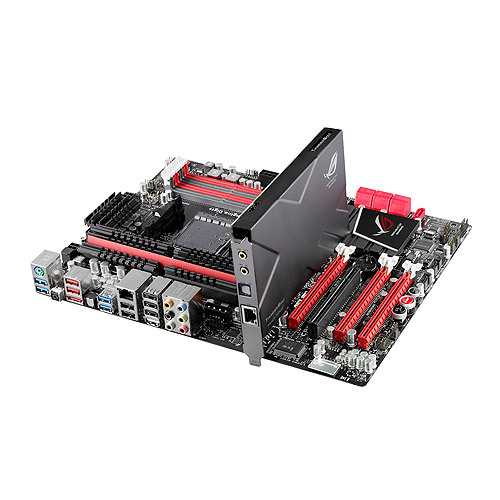

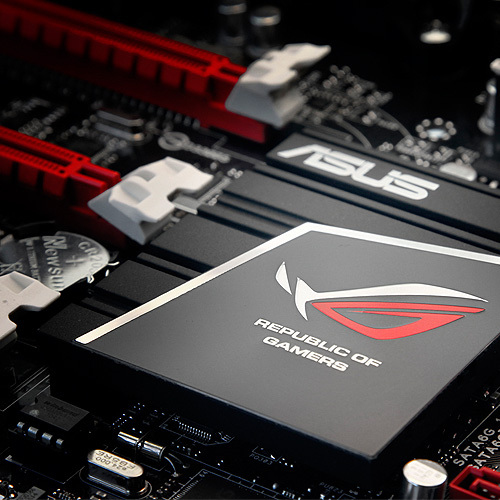

ASUS Crosshair V Formula/ThunderBolt

ASUS Crosshair V Formula/ThunderBolt

Model Crosshair V Formula/ThunderBoltPart no. 90-MIBFM1-G0EAY00ZEAN 3610170562801

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support3-Way SLI
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
3-Way SLI
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
ASUS
Category
Motherboard
Model
Crosshair V Formula/ThunderBolt
Part number
90-MIBFM1-G0EAY00Z
EAN / UPC
3610170562801, 4719543181775
Also known as
ASUS Crosshair V Formula/ThunderBolt AMD 990FX Socket AM3 ATX

Specifications

58 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1800,2000,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors7
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors3

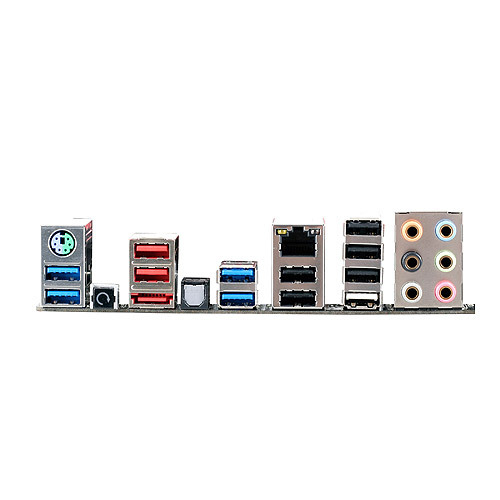

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 990FX
Motherboard southbridgeAMD SB950
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots4
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller 2nd interface typeASM1061
Controller interface typeSB950
EZ plug connectorYes
