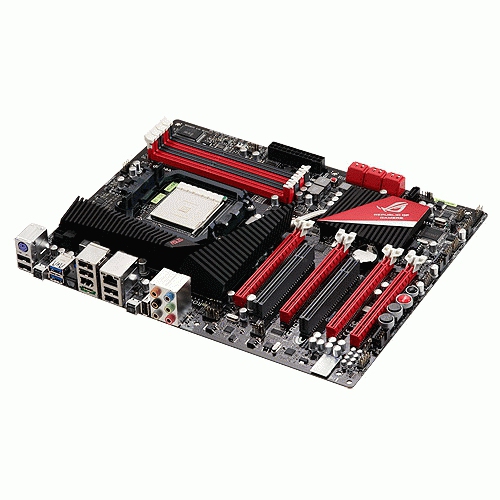

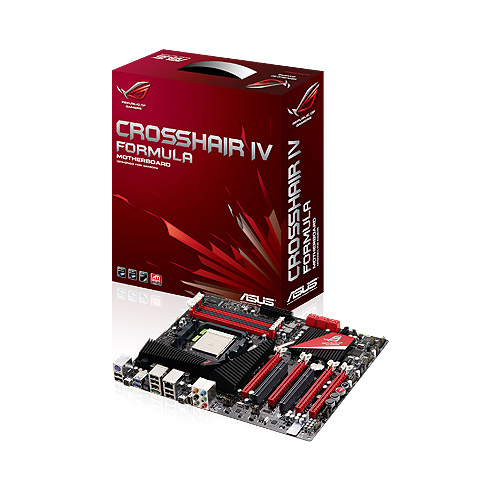

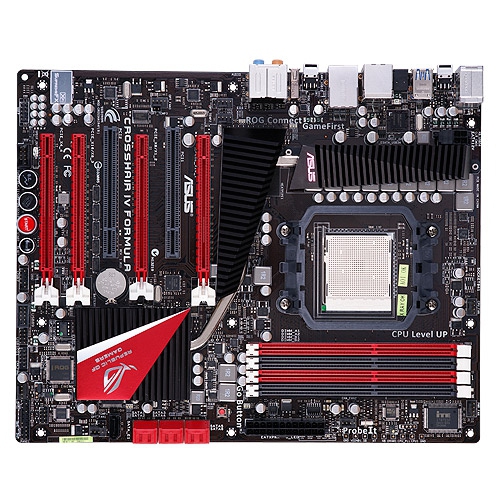

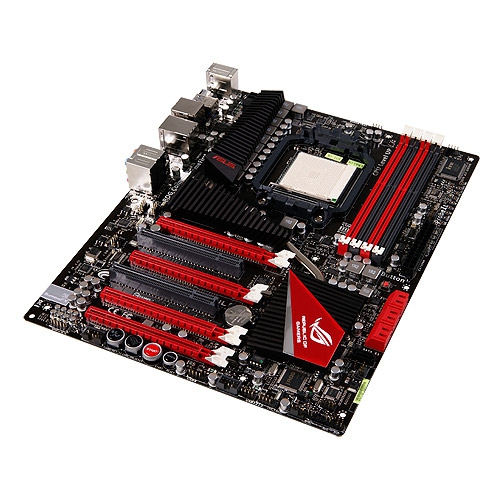

ASUS Crosshair IV Formula

ASUS Crosshair IV Formula

Model Crosshair IV FormulaPart no. 90-MIBCN0-G0EAY00ZEAN 610839175871

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors3
  • USB 2.0 ports quantity7
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
3
USB 2.0 ports quantity
7
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
Crosshair IV Formula
Part numbers
90-MIBCN0-G0EAY00Z, CROSSHAIR4
EAN / UPC
610839175871, 4719543175873
Also known as
ASUS Crosshair IV Formula AMD 890FX Socket AM3 ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333,1600,1800,2000 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors1
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
Number of IEEE1394 connectors1

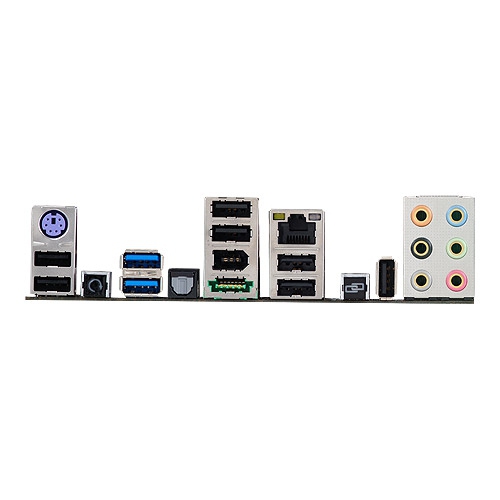

Rear panel I/O ports

USB 2.0 ports quantity7
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerMarvell 88E8059

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 890FX
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x4 slots1
PCI Express x16 slots3
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth245 mm

Packaging content

Drivers includedYes

Other features

Manageability featuresWOL by PME,WOR by PME,PXE
