ASUS CROSSBLADE RANGER

ASUS CROSSBLADE RANGER

Model CROSSBLADE RANGERPart no. 90MB0JQ0-M0MAY0EAN 7734322923909

50 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • Parallel processing technology support3-Way CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
Parallel processing technology support
3-Way CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
CROSSBLADE RANGER
Part numbers
90MB0JQ0-M0MAY0, 90MB0JQ0-M0EAY0, 90MB0JQ0-M0AAY0
EAN / UPC
7734322923909, 886227812967, 4053162745742, 4055895949589 +6 more
Also known as
ASUS CROSSBLADE RANGER A88X Socket FM2+ ATX

Specifications

50 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2200,2250,2400,2666 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10, JBOD

Graphics

Parallel processing technology support3-Way CrossFireX

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors10
Number of SATA connectors8
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes

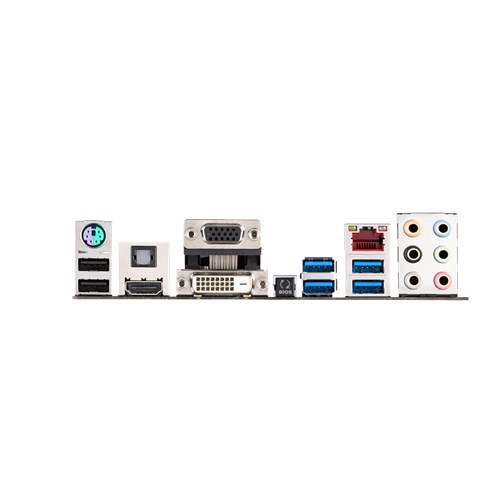

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetA88X
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2
PCI slots2

BIOS

BIOS typeUEFI
ACPI version5.0a
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm
