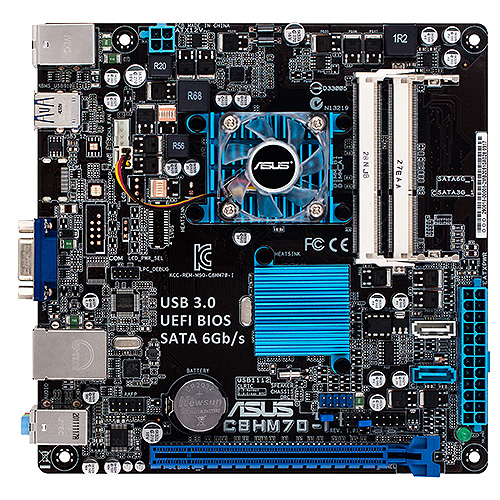

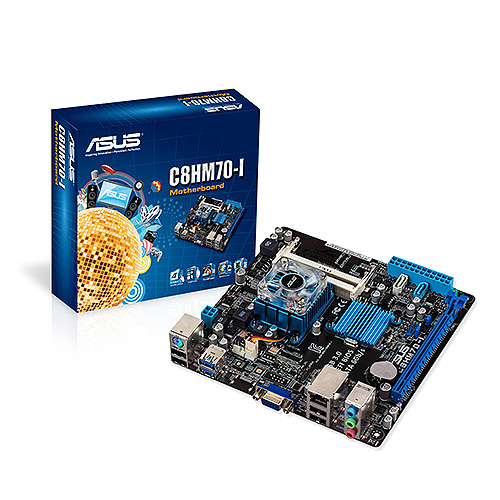

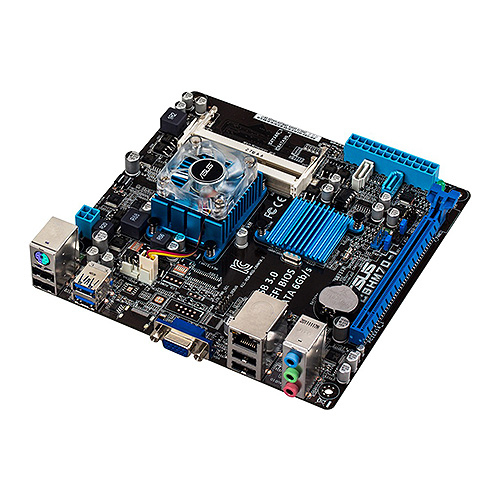

ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX
Model C8HM70-IPart no. 90MB0DJ0-M0EAY0EAN 610839182299
65 specifications
- Processor847
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Processor
- 847
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- C8HM70-I
- Part number
- 90MB0DJ0-M0EAY0
- EAN / UPC
- 610839182299, 886227284399, 4716659284390, 8862272843998
- Also known as
- ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX
Specifications
65 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1023 |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
| Intel Celeron series | 400 |
| Processor model | 847 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Maximum resolution | 2048 x 1536 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

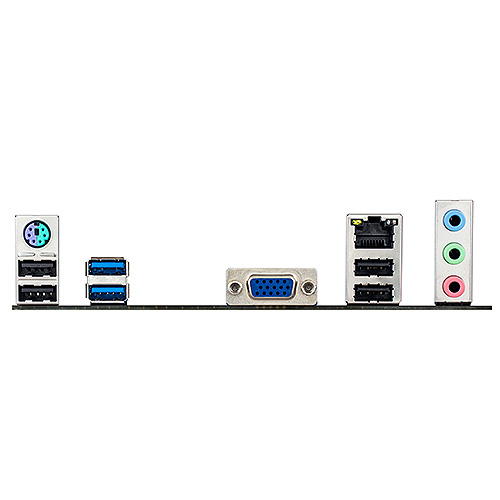

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111F |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® HM70 Express |
| Audio chip | Realtek ALC887-VD |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 8 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
Processor special features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 2 |
| Number of processors supported | 1 |
| PCI Express slots quantity | 1 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX
No reviews yet
Be the first to tell others how ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX
All motherboard comparisons- ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX vsASUS F2A85-V AMD A85X Socket FM2 ATXCompare specs
- ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX vsASUS Maximus V Formula + Assassins Creed IIICompare specs
- ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX vsASUS P8B75-M LX PLUSCompare specs

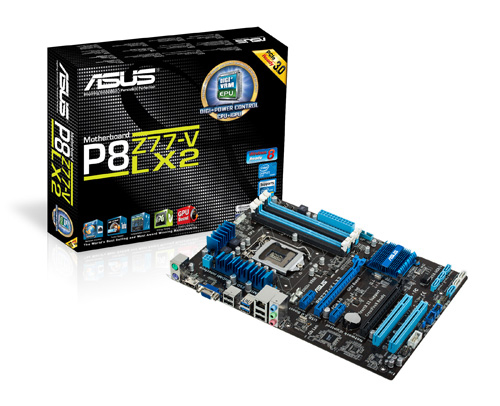

- ASUS C8HM70-I Intel® HM70 Express BGA 1023 mini ITX vsASUS P8Z77-V LX2Compare specs
