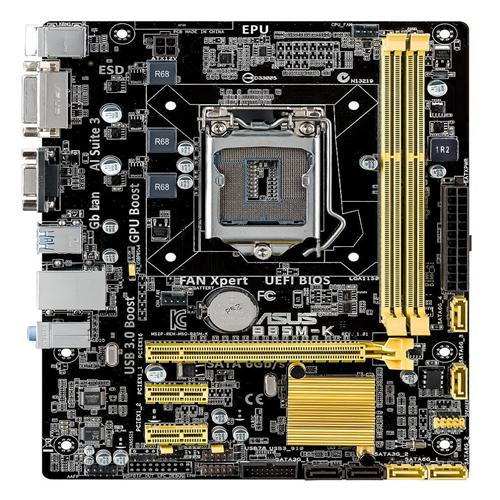

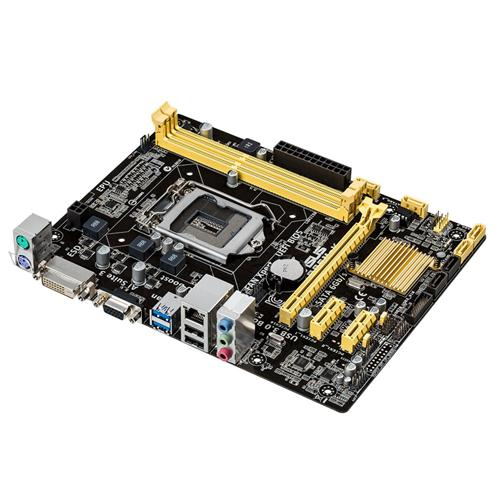

ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX
Model B85M-KPart no. 90MB0HR0-M0EAY5EAN 886227625369
59 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- B85M-K
- Part number
- 90MB0HR0-M0EAY5
- EAN / UPC
- 886227625369, 4716659625360, 4716659625377
- Also known as
- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX
Specifications
59 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |

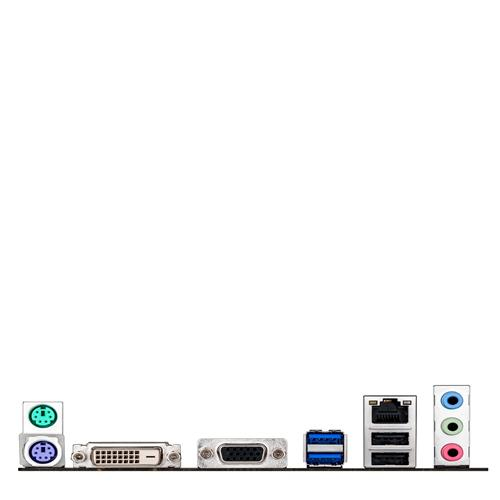

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 175 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS GRYPHON Z97 ARMOR EDITIONCompare specs
- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS B85M-D PLUSCompare specs
- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS B85M-G R2.0Compare specs

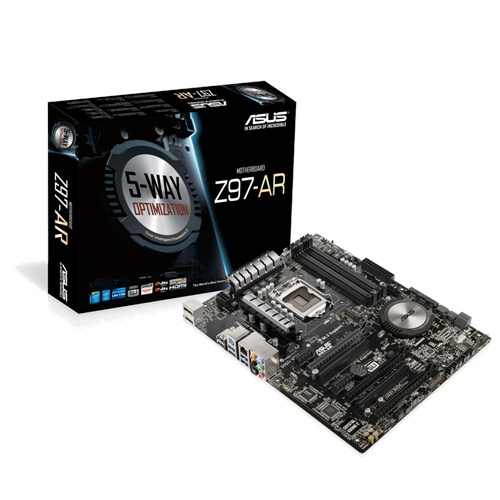

- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS Z97-AR Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs
- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-H81M-D3H (rev. 1.0)Compare specs

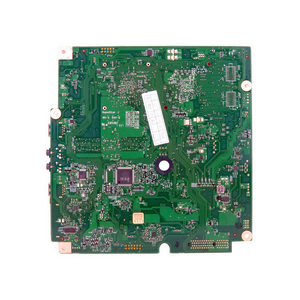

- ASUS B85M-K Intel® B85 LGA 1150 (Socket H3) micro ATX vsLenovo 90004022 motherboardCompare specs
