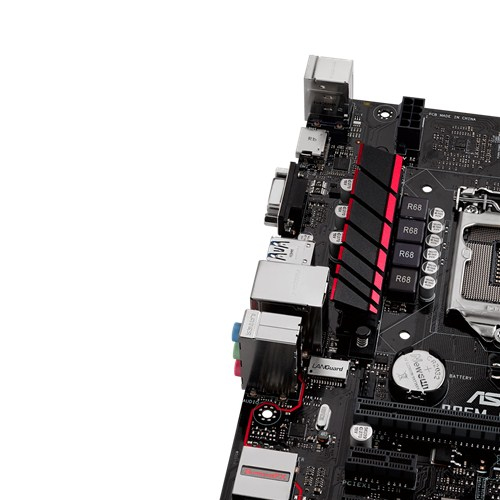

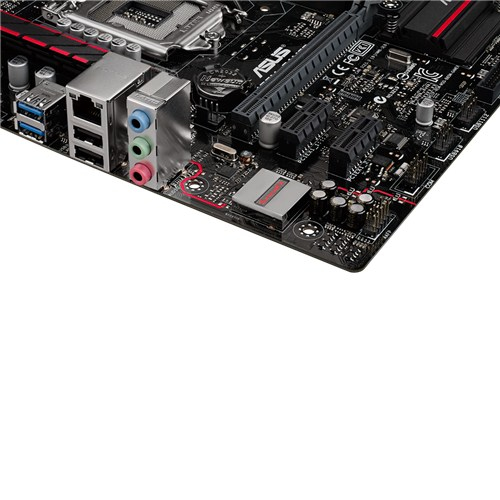

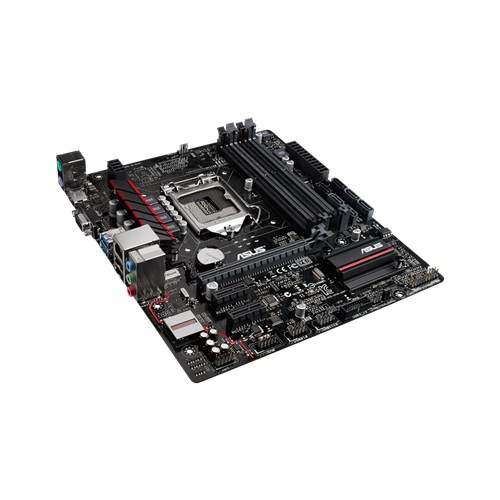

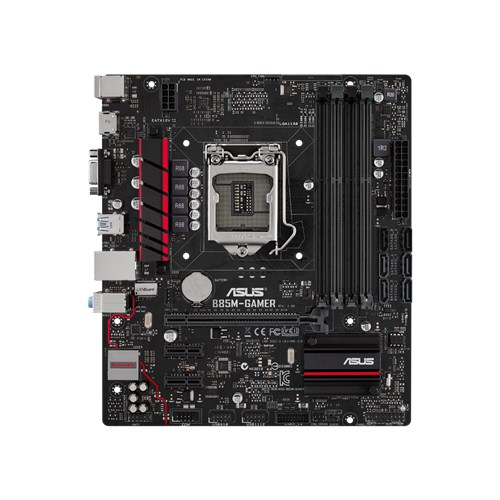

ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX
Model B85M-GAMERPart no. 90MB0LJ0-M0EAY0EAN 4716659995302
55 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- B85M-GAMER
- Part number
- 90MB0LJ0-M0EAY0
- EAN / UPC
- 4716659995302, 4053162745889, 4058829152369, 5054629993125 +1 more
- Also known as
- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX
Specifications
55 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |

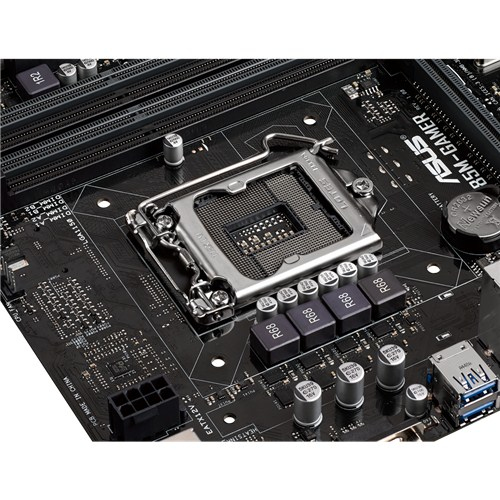

| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i5-4xxx, i7-4xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 8GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

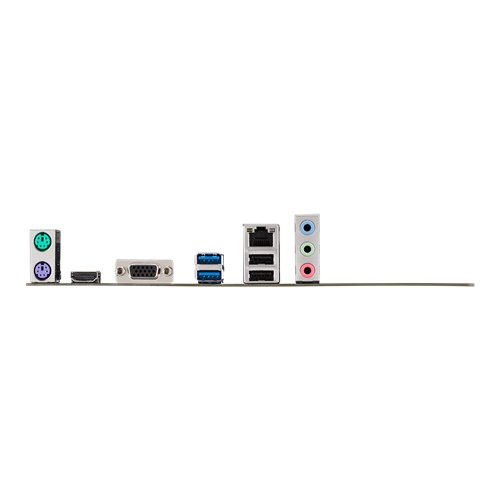

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B85 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 4.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 233 mm |
| Depth | 206 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX

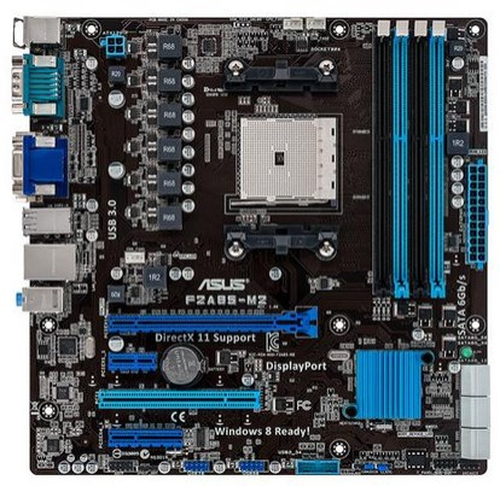

All motherboard comparisons- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS F2A85-M2 motherboard AMD A85X Socket FM2 micro ATXCompare specs

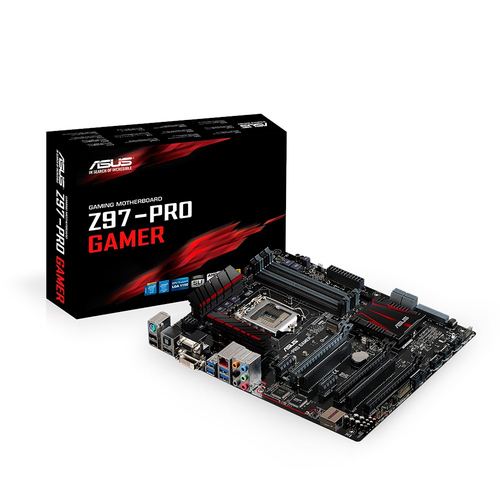

- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS Z97-PRO GgamerCompare specs

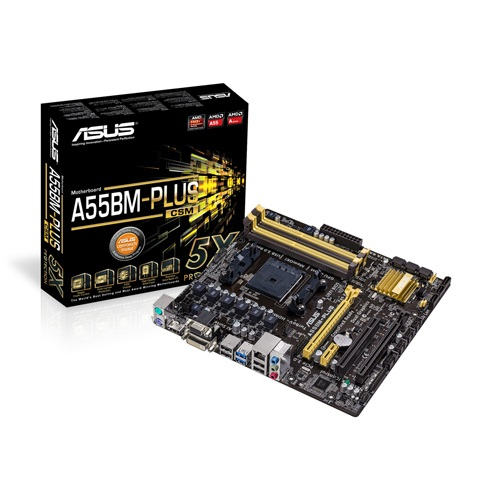

- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS A55BM-PLUS/CSM AMD A55 FCH Socket FM2+ micro ATXCompare specs

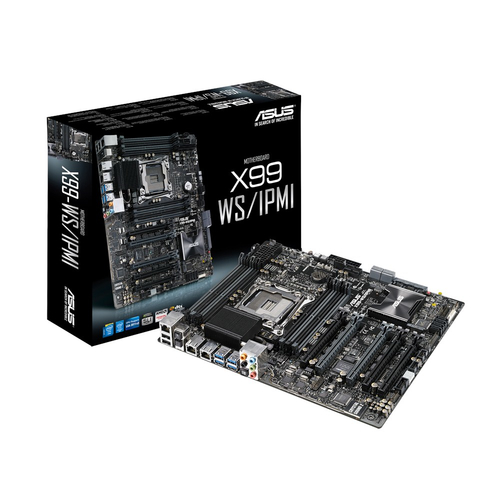

- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsASUS X99-WS/IPMI Intel® X99 LGA 2011-v3 ATXCompare specs
- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-Z97-HD3P motherboard Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs

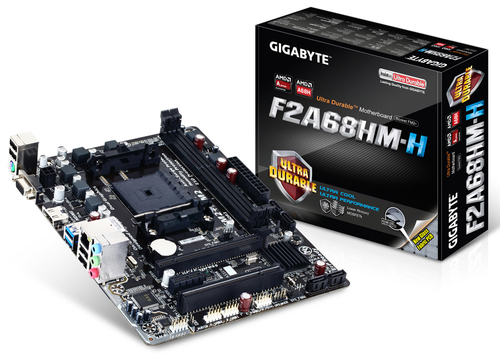

- ASUS B85M-GAMER Intel® B85 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-F2A68HM-H motherboard AMD A68H Socket FM2+ micro ATXCompare specs
