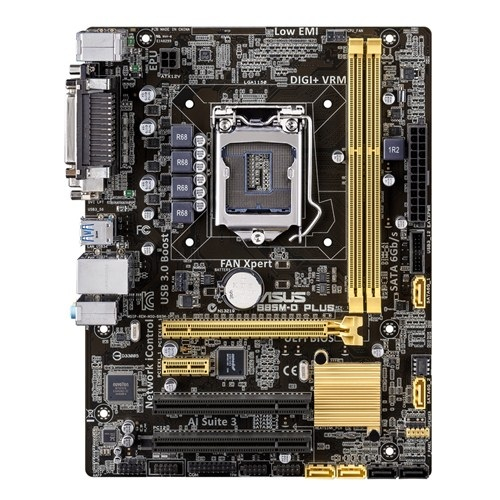

ASUS B85M-D PLUS

ASUS B85M-D PLUS

Model B85M-D PLUSEAN 846829881518

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
B85M-D PLUS
Part number
B85M-D PLUS
EAN / UPC
846829881518, 886227762521, 8862277625216
Also known as
ASUS B85M-D PLUS motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Celeron® Dual-Core, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
TPM connectorYes

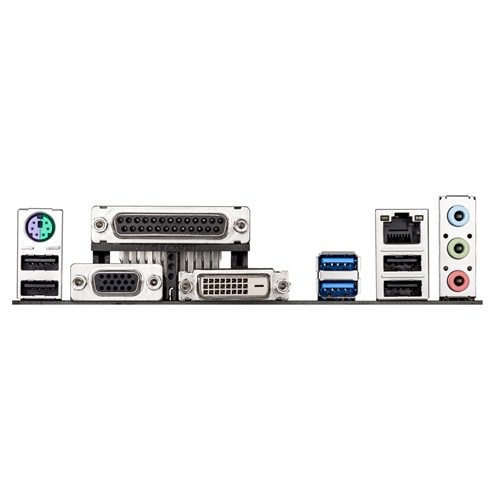

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111GR

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio chipRealtek ALC887-VD2
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots2

BIOS

BIOS typeAMI
BIOS memory size128 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width224 mm
Depth188 mm

Packaging content

Drivers includedYes
