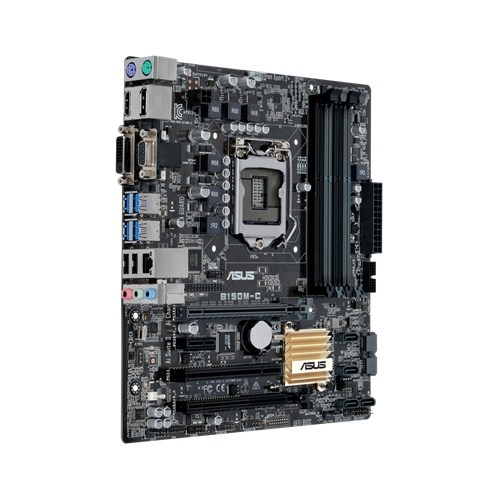

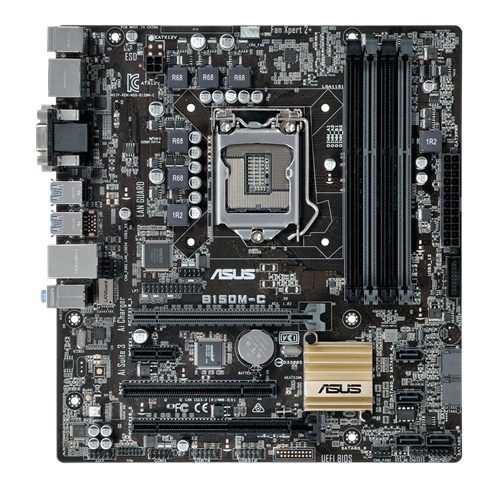

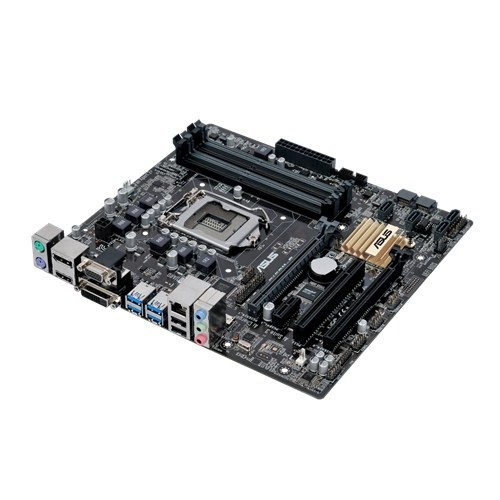

ASUS B150M-C/CSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Model B150M-C/CSMPart no. 90MB0P00-M0EAYCEAN 4712900774689
57 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardNo
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- B150M-C/CSM
- Part numbers
- 90MB0P00-M0EAYC, B150M-C/CSM
- EAN / UPC
- 4712900774689, 889349198063, 889349198070, 4058154218228 +1 more
- Also known as
- ASUS B150M-C/CSM motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111F |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
