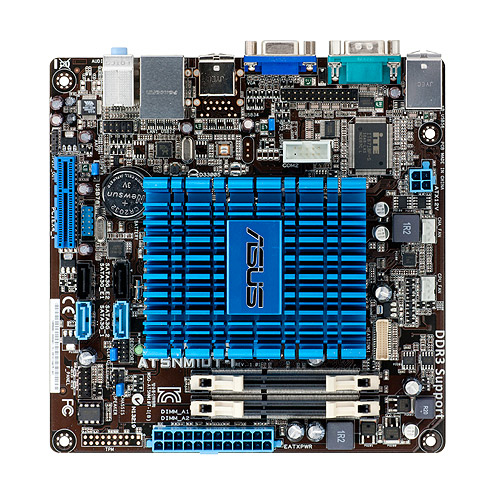

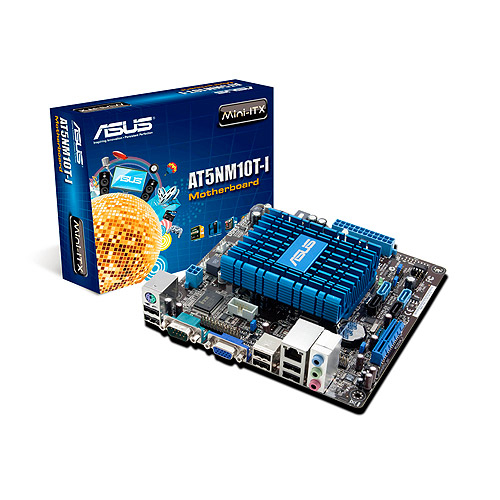

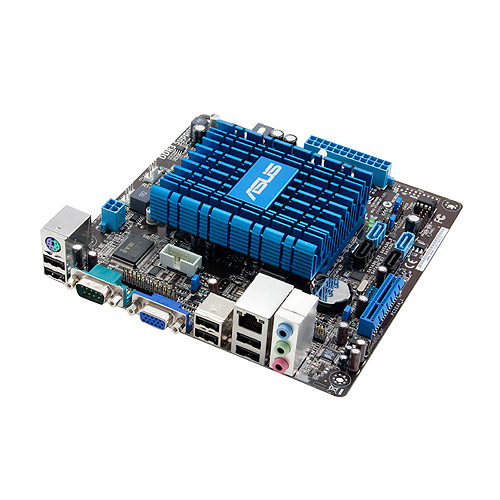

ASUS AT5NM10T-I motherboard Intel® NM10 Express mini ITX

ASUS AT5NM10T-I motherboard Intel® NM10 Express mini ITX

Model AT5NM10T-IPart no. 90-MIBFF1-G0UBY0KZEAN 5711045163296

48 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
  • USB 2.0 ports quantity6
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
1
USB 2.0 ports quantity
6
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
AT5NM10T-I
Part numbers
90-MIBFF1-G0UBY0KZ, AT5NM10T-I
EAN / UPC
5711045163296, 610839179077, 4719543179093, 4719543179079
Also known as
ASUS AT5NM10T-I motherboard Intel® NM10 Express mini ITX

Specifications

48 specifications in 11 groups

Processor

Processor manufacturerIntel
Compatible processor seriesIntel Atom®

Memory

Number of memory slots2
ECC сompatibilityNon-ECC
Supported memory clock speeds800 MHz
Maximum internal memory4 GB
Supported memory module capacities4GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors1
Number of Parallel ATA connectors2
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
TPM connectorYes

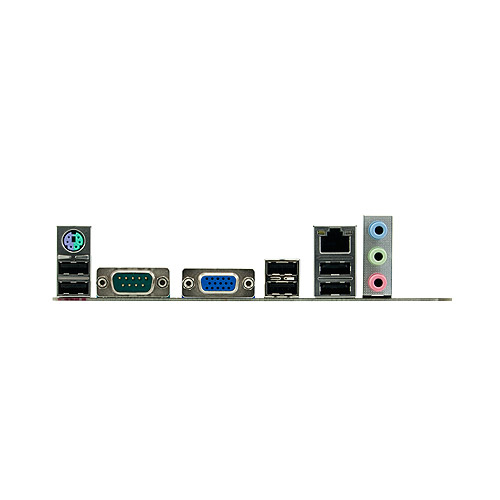

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
COM ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipsetIntel® NM10 Express
Audio chipVIA VT1705S
Audio output channels5.1 channels
Power source typeATX

Expansion slots

PCI Express x4 slots1

BIOS

BIOS typeAMI
BIOS memory size64 Mbit

Weight & dimensions

Width170 mm
Depth170 mm

Other features

S/PDIF in connectorYes
