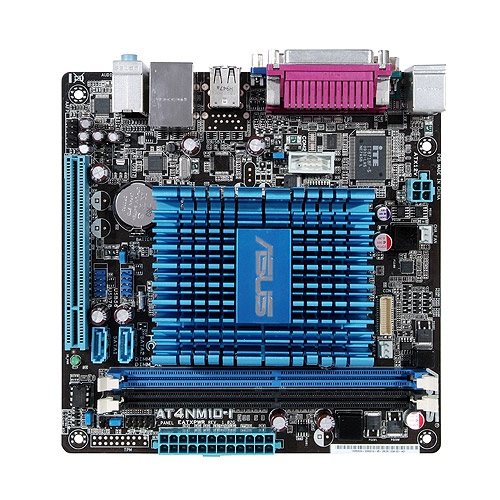

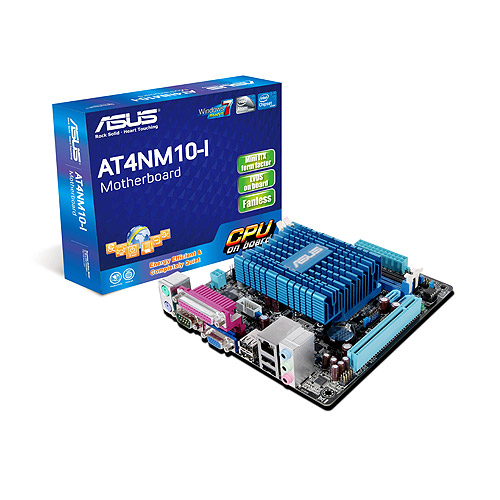

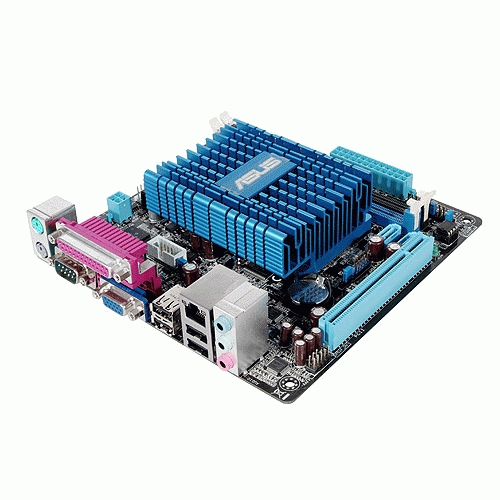

ASUS AT4NM10-I BGA 559 mini ITX
Model AT4NM10-IPart no. 90-MIBD30-G0EAY0KZEAN 4719543175569
40 specifications
- ProcessorD410
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory256 MB
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
Overview
- Processor
- D410
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 256 MB
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- AT4NM10-I
- Part numbers
- 90-MIBD30-G0EAY0KZ, AT4NM10-I
- EAN / UPC
- 4719543175569, 1401019868190
- Also known as
- ASUS AT4NM10-I BGA 559 mini ITX
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 559 |
| Maximum number of SMP processors | 1 |
| Processor model | D410 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

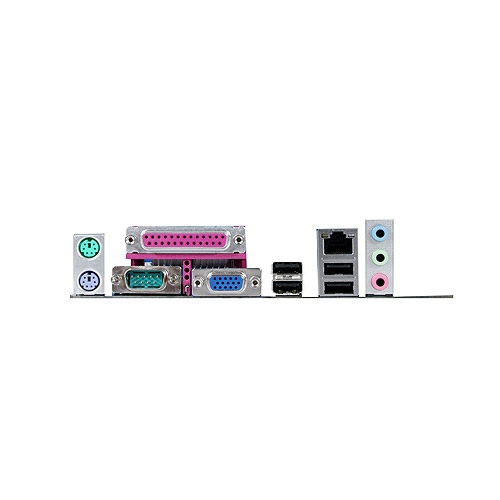

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA 3 Gb/s |
