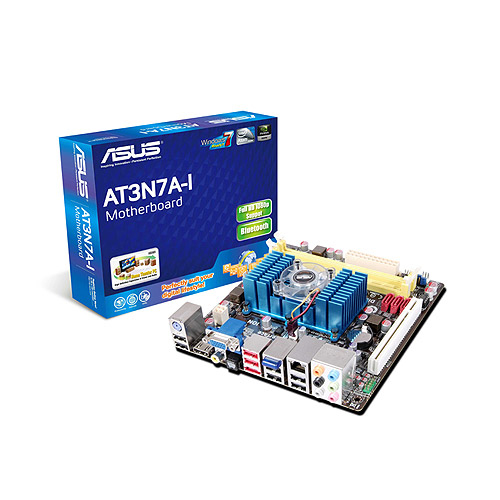

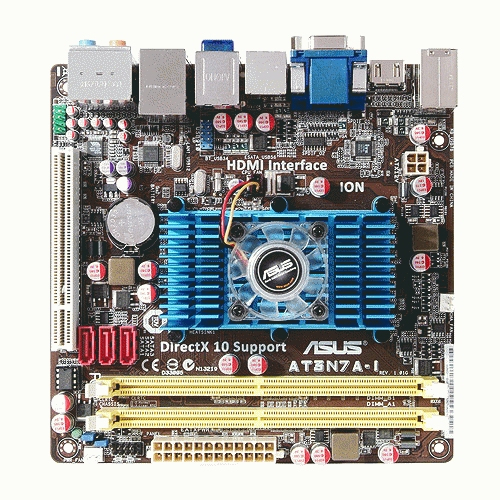

ASUS AT3N7A-I NA (integrated CPU) mini ITX
Model AT3N7A-IPart no. 90-MIBAN0-G0EAY0KZEAN 4719543172353
40 specifications
- Processor330
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 connectors1
- USB 2.0 ports quantity8
- Networking featuresGigabit Ethernet
Overview
- Processor
- 330
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 8
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- AT3N7A-I
- Part numbers
- 90-MIBAN0-G0EAY0KZ, AT3N7A-I, 90-MIABN0-G0EAY0KZ
- EAN / UPC
- 4719543172353, 610839172351
- Also known as
- ASUS AT3N7A-I NA (integrated CPU) mini ITX
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Maximum number of SMP processors | 1 |
| Processor model | 330 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

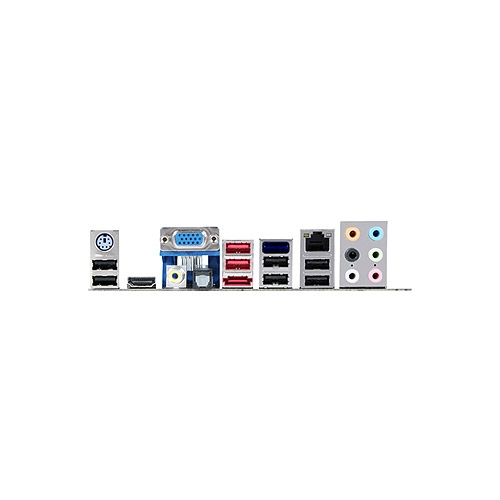

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 171 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA 3 Gb/s |
| I/O ports | 1 x Mini DIN 1 x BlueTooth |
What people say
Reviews & ratings
ASUS AT3N7A-I NA (integrated CPU) mini ITX
No reviews yet
Be the first to tell others how ASUS AT3N7A-I NA (integrated CPU) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS AT3N7A-I NA (integrated CPU) mini ITX
All motherboard comparisons- ASUS AT3N7A-I NA (integrated CPU) mini ITX vsASUS P6TD DeluxeCompare specs

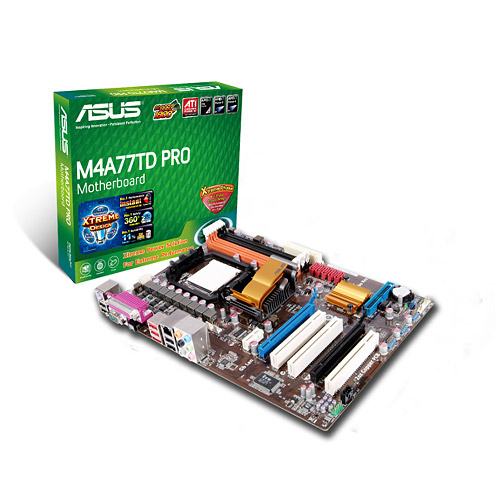

- ASUS AT3N7A-I NA (integrated CPU) mini ITX vsASUS M4A77TD PROCompare specs
