ASUS AT3IONT-I NA (integrated CPU) mini ITX
Model AT3IONT-IPart no. 90-MIBCT0-G0EAY0GZEAN 5052179348747
30 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity6
- Motherboard form factormini ITX
- PCI Express x16 slots1
- Width171 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- mini ITX
- PCI Express x16 slots
- 1
- Width
- 171 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- AT3IONT-I
- Part numbers
- 90-MIBCT0-G0EAY0GZ, 90-MIBCT0-G0EAY0KZ, AT3IONT-I
- EAN / UPC
- 5052179348747, 4719543175019, 610839175017, 4054317997207
- Also known as
- ASUS AT3IONT-I NA (integrated CPU) mini ITX
Specifications
30 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 533 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

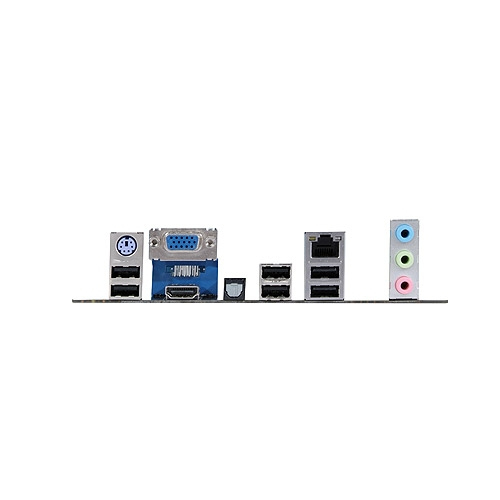

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 171 mm |
