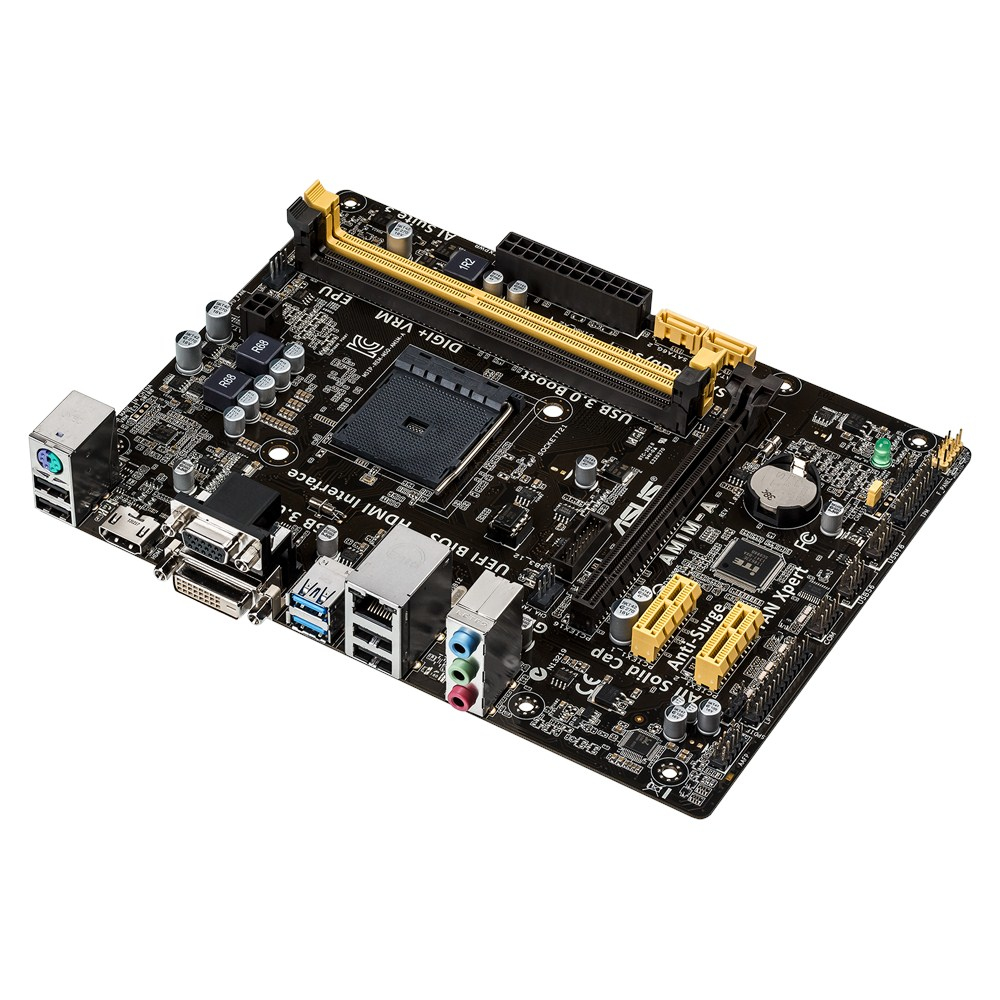

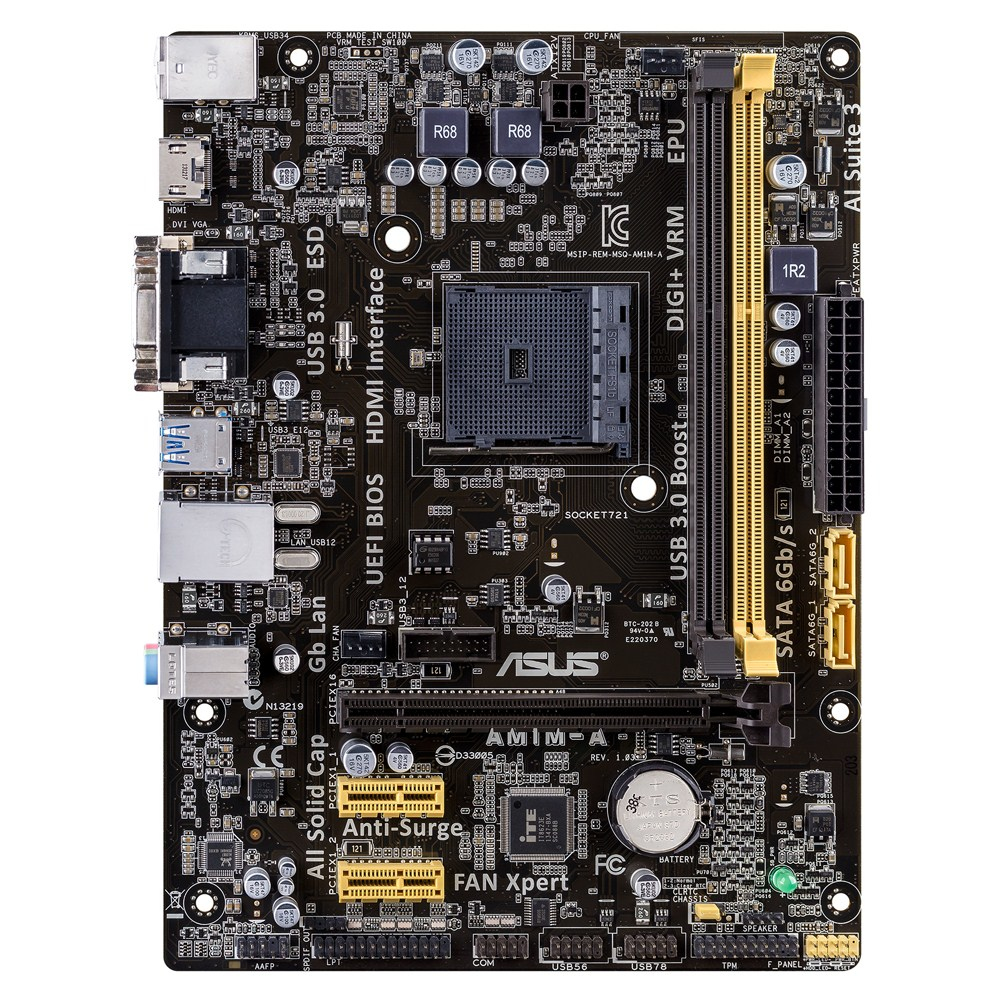

ASUS AM1M-A Socket AM1 micro ATX

ASUS AM1M-A Socket AM1 micro ATX

Model AM1M-APart no. 90MB0IR0-M0EAY0EAN 8862277139744

60 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
AM1M-A
Part number
90MB0IR0-M0EAY0
EAN / UPC
8862277139744, 886227713974, 4053162750586, 4053162934344 +8 more
Also known as
ASUS AM1M-A Socket AM1 micro ATX

Specifications

60 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM1
Compatible processor seriesAMD Athlon, AMD Sempron
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsSingle-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB, 4GB, 8GB
Unbuffered memoryYes
Flash memory64 MB

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Parallel processing technology supportNot supported
Graphics card familyAMD
HDCPYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors0
Number of SATA connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
TPM connectorYes

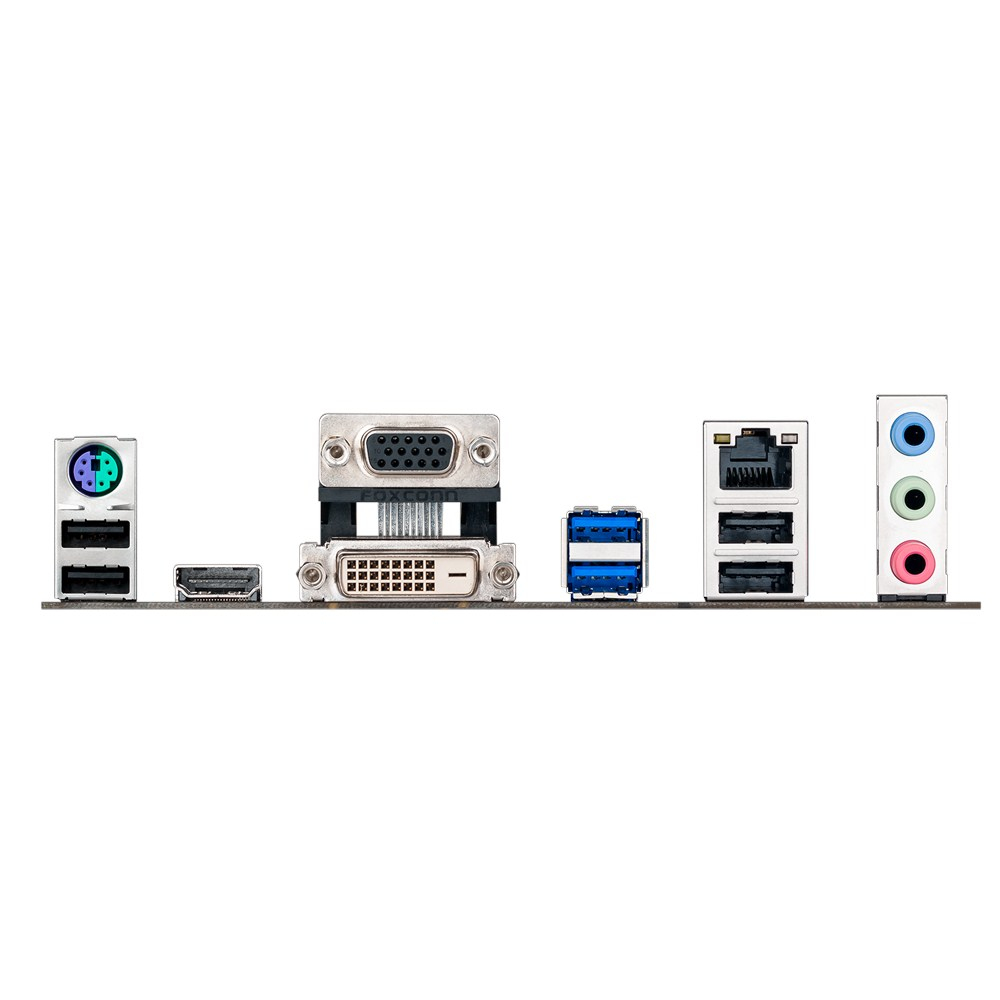

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs2
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111GR

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1

BIOS

BIOS typeUEFI AMI
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width226 mm
Depth170 mm

Other features

Dual Link DVIYes
