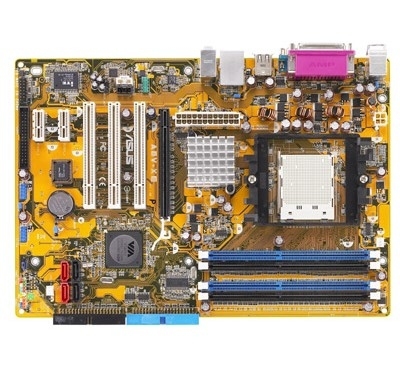

ASUS A8V-XE motherboard Socket 939 ATX
Model A8V-XEEAN 610839133666
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, JBOD
- USB 2.0 connectors2
- LAN controllerRealtek RTL8201CL
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, JBOD
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- A8V-XE
- Part numbers
- A8V-XE, 90-M9B170-G0EAYKZ, 90-M9B170-G0EAYVZ
- EAN / UPC
- 610839133666, 4719543133668
- Also known as
- ASUS A8V-XE motherboard Socket 939 ATX
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1986A |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI-E x16 2x PCI-E x1 3x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe II Anti-Virus ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66/33 |
| Controller interface type | Serial ATA (3.0Gb/s) |
| GAME/MIDI connector | Yes |
| Special features | ASUS C.P.R. ASUS JumperFree ASUS MyLogo SFS |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL |
