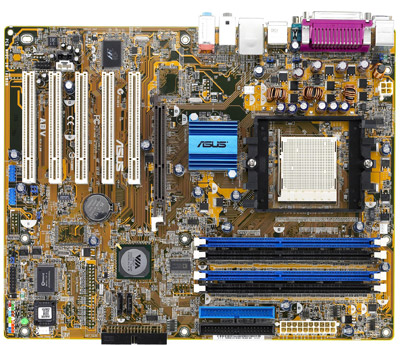

A8V Socket 939 ATX
Model A8VPart no. 11939
12 specifications
- Processor manufacturerAMD
- Maximum internal memory4 GB
- RAID levels0, 1, JBOD
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 4 GB
- RAID levels
- 0, 1, JBOD
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- A8V
- Part numbers
- 11939, 90-M9L0V0-G0EAYVZ
- Also known as
- ASUS A8V Socket 939 ATX
Specifications
12 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, JBOD |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8001 Gigabit Ethernet Controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X/4X (1.5V only), 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Controller interface type | 2 x UltraDMA 133/100/66/33, 2 x Serial ATA |
| Audio output | Realtek ALC850 8-channel CODEC |
| I/O ports | 1 x Parallel port 1 x Serial port 1 x PS/2 Keyboard port 1 x PS/2 Mouse port 4 x USB 2.0 ports 1 x Coaxial S/PDIF Output port 1 x RJ45 port 1 x 8-channel Audio I/O ports |
