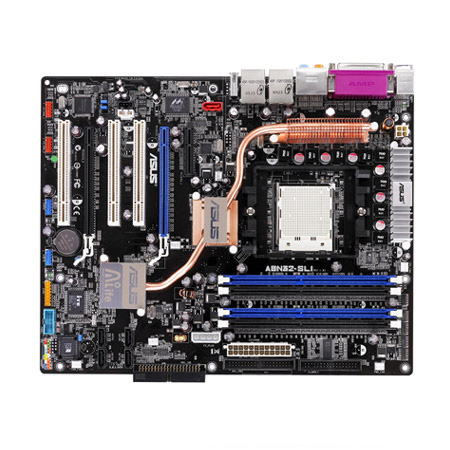

ASUS A8N32-SLI Deluxe AMD Socket939 ATX
Model A8N32-SLI Deluxe AMD Socket939 ATXPart no. 90-M9L1E0-G0EAYEAN 4719543136201
39 specifications
- Processor manufacturerAMD
- Number of memory slots4
- Motherboard form factorATX
- BIOS memory size64 Mbit
- Width305 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- A8N32-SLI Deluxe AMD Socket939 ATX
- Part number
- 90-M9L1E0-G0EAY
- EAN / UPC
- 4719543136201
- Also known as
- ASUS A8N32-SLI Deluxe AMD Socket939 ATX
Specifications
39 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit LAN Marvell 88E8053 PCI-E Gigabit LAN & Wireless 54 Mbps IEEE 802.11g |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC850 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI-E x16 with SLI, x16, x16 1 x PCI-E x4 (PCI-E x4 / PCI-E x1) 3 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Booster NV RIS (Remote Installation Service) application NV Firewall NV RAID Anti-virus software (OEM version) |
Other features
| Specification | Value |
|---|---|
| Audio output | Coaxial / Optical S/PDIF |
| EZ plug connector | Yes |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL |
| RAID controller type | RAID 0, 1, 0+1, 5 & JBOD - Serial ATA Silicon Image 3132 |
