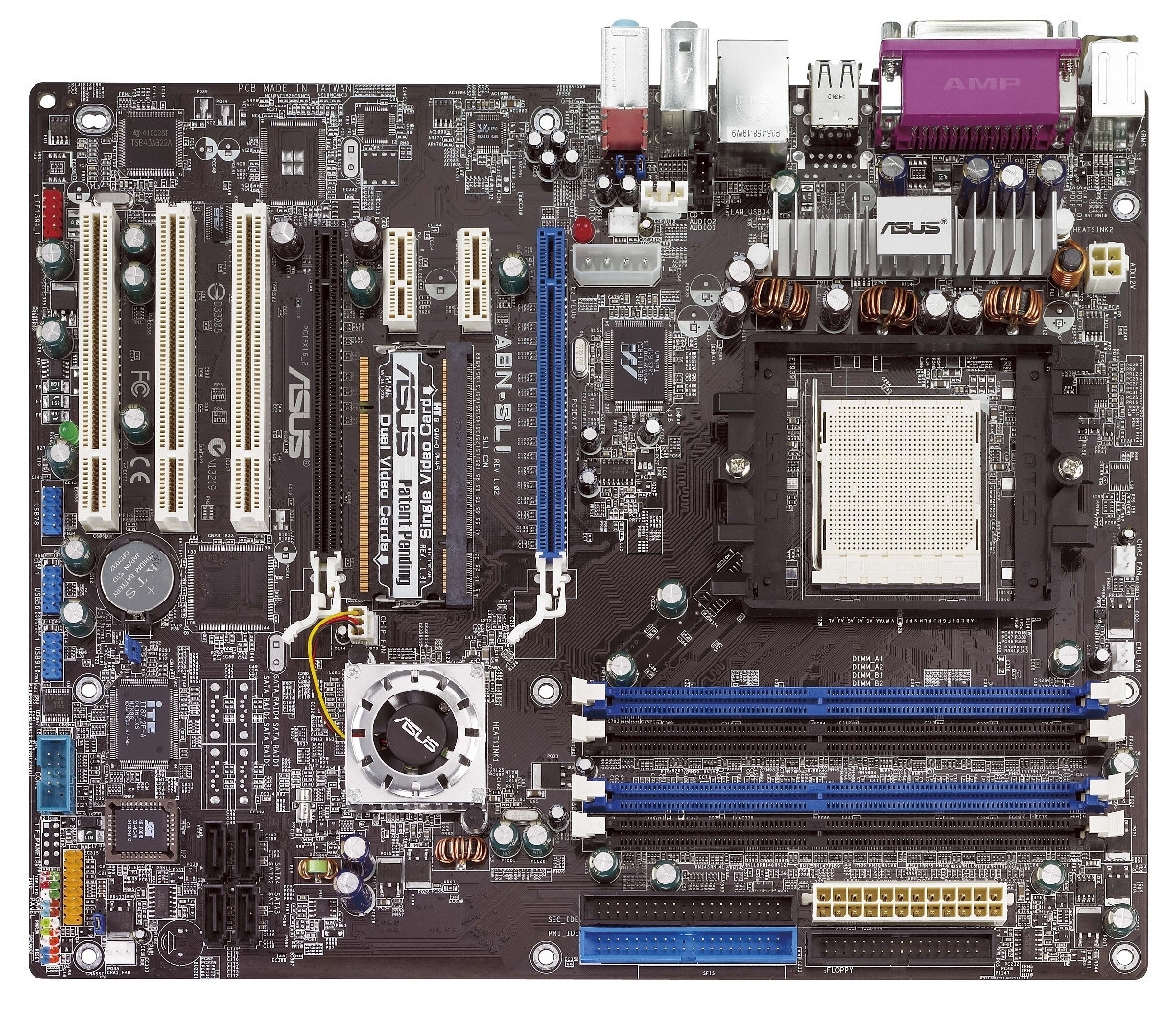

ASUS A8N-SLI S939
Model A8N-SLI S939Part no. 90-M9B0PY-G0EAYZEAN 610839135776
43 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 1+0
- USB 2.0 connectors3
- Networking featuresAI NET2
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 1+0
- USB 2.0 connectors
- 3
- Networking features
- AI NET2
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- A8N-SLI S939
- Part number
- 90-M9B0PY-G0EAYZ
- EAN / UPC
- 610839135776, 4719543135778
- Also known as
- ASUS A8N-SLI S939 Socket 939 ATX
Specifications
43 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 1+0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | AI NET2 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 2 x PCI Express x16 - 2 x PCI Express x1 - 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | - ASUS PC Probe - PC Health Monitoring - ASUS LiveUpdate - ASUS AI Booster - ASUS Cool 'n' Quiet - NVIDIA nTune - Anti-virus (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA 3Gb/s |
| Audio output | Realtek ALC850 |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
