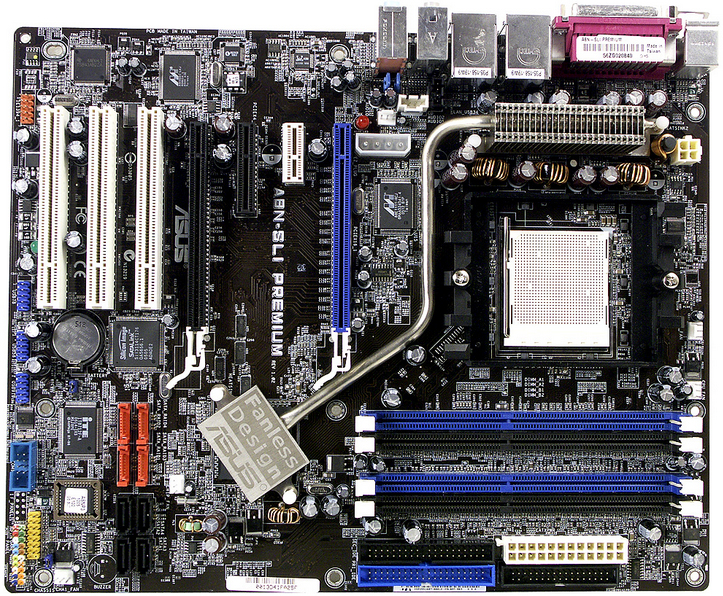

ASUS A8N-SLI motherboard NVIDIA nForce 4 SLI Socket 939 ATX
Model A8N-SLIEAN 4719543124864
46 specifications
- Processor manufacturerAMD
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesSATA
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Component forPC
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- SATA
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- A8N-SLI
- Part numbers
- A8N-SLI, 90-M9L0P2-G0EAY, 90-M9L0P2-G0EAYZ
- EAN / UPC
- 4719543124864, 610839124862
- Also known as
- ASUS A8N-SLI motherboard NVIDIA nForce 4 SLI Socket 939 ATX
Specifications
46 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Memory slots type | DIMM |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 400 MHz |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | NVIDIA nForce 4 SLI |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
| Expansion slots | 2 x PCI Express x16 2 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
