ASUS A88X-PLUS/USB 3.1

ASUS A88X-PLUS/USB 3.1

Model A88X-PLUS/USB 3.1EAN 889349375341

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
2048 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
A88X-PLUS/USB 3.1
Part number
A88X-PLUS/USB 3.1
EAN / UPC
889349375341, 4712900375343
Also known as
ASUS A88X-PLUS/USB 3.1 motherboard AMD A88X Socket FM2+ ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD Athlon

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2200,2250,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10, JBOD

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology supportQuad-GPU CrossFireX
Graphics card familyAMD
Graphics cardRadeon HD 7000
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors8
S/PDIF out connectorYes
Front panel audio connectorYes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors1

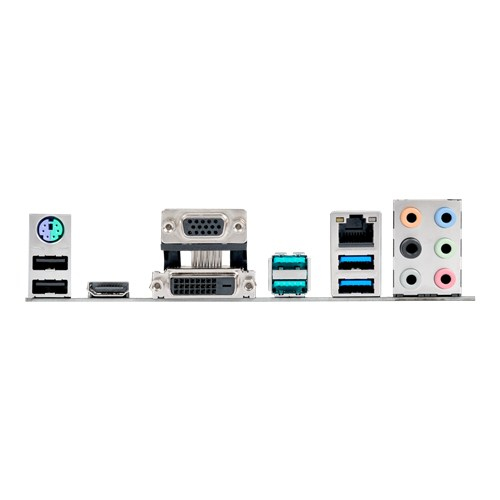

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A88X
Audio chipRealtek ALC887
Audio output channels7.1 channels
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots2
PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots3

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version4.0a
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth226 mm

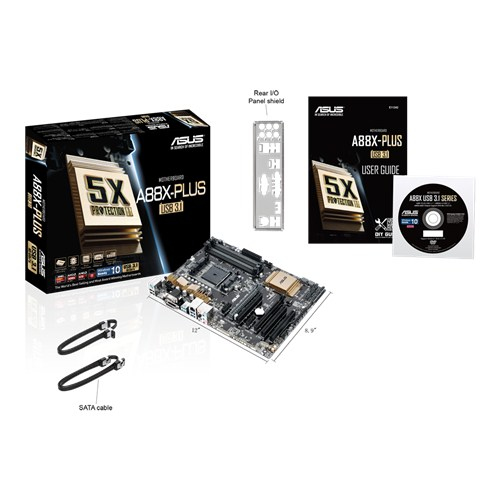

Packaging content

Cables includedSATA
ManualYes
