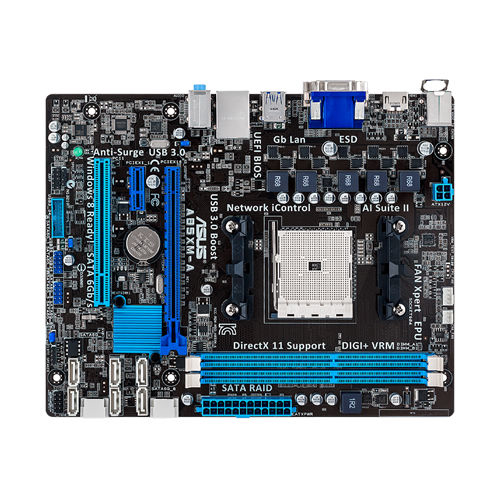

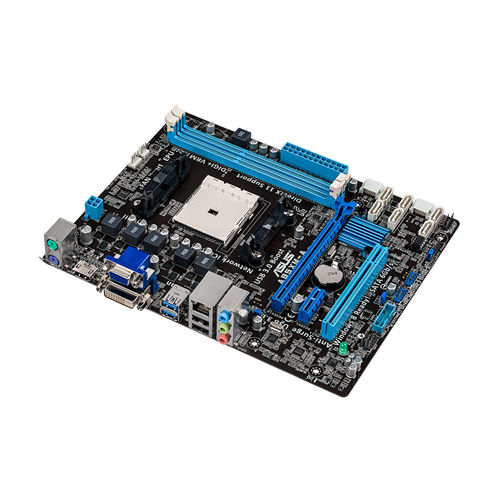

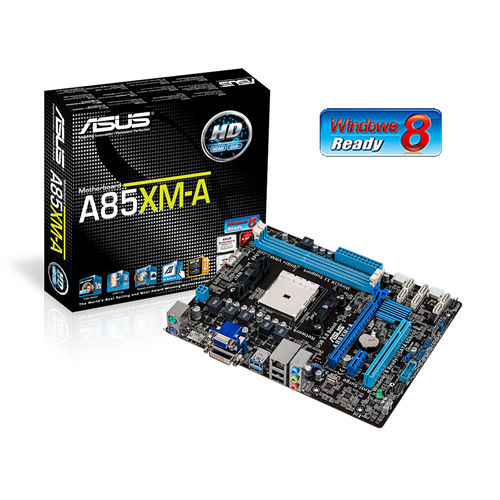

ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX
Model A85XM-AEAN 886227440450
68 specifications
- Memory32 GB
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II, SATA III
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
Overview
- Memory
- 32 GB
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II, SATA III
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- A85XM-A
- Part numbers
- A85XM-A, 90MB0FJ0-M0EAY0
- EAN / UPC
- 886227440450, 8862274404500, 4716659440451
- Also known as
- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX
Specifications
68 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2 |
| Compatible processor series | AMD A |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Internal memory | 32 GB |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II, SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card | Radeon HD 7000 |
| Maximum resolution | 2560 x 1600 pixels |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | No |

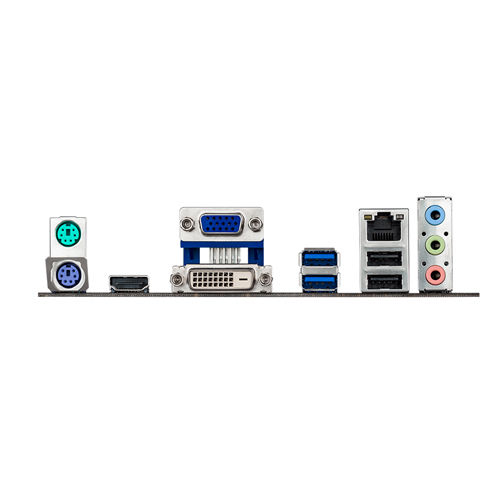

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A85X |
| Audio chip | Realtek ALC887-VD |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 236 mm |
| Depth | 188 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | No |
| GAME/MIDI connector | No |
| Number of processors supported | 1 |
| PCI Express slots quantity | 2 |
What people say
Reviews & ratings
ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX
No reviews yet
Be the first to tell others how ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX

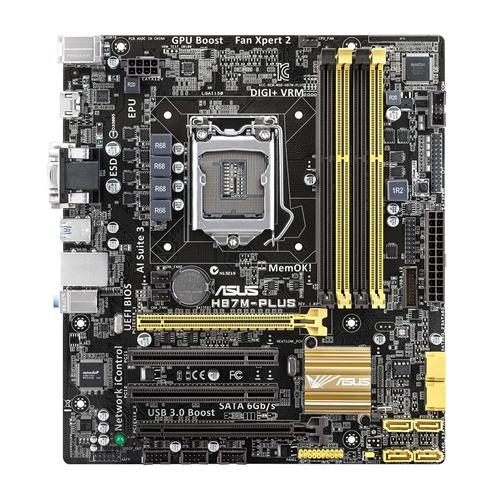

All motherboard comparisons- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsASUS H87M-PLUS/CSM motherboard Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs

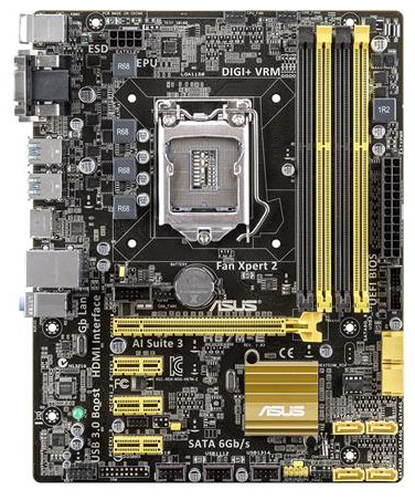

- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsASUS H87M-E Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs
- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATXCompare specs

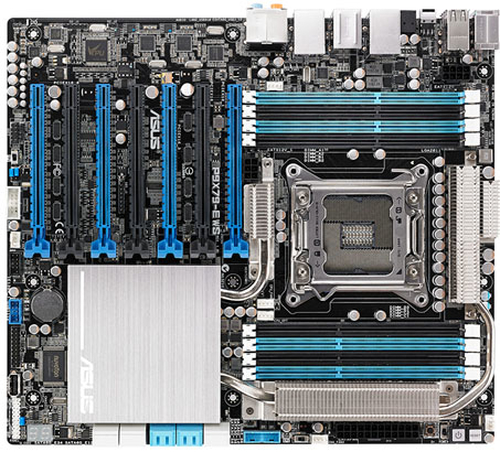

- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsASUS P9X79-E WSCompare specs

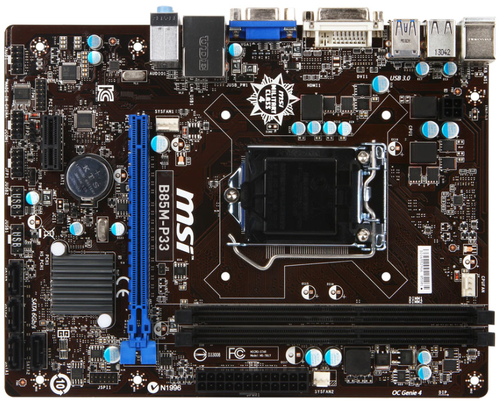

- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsMSI B85M-P33 motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

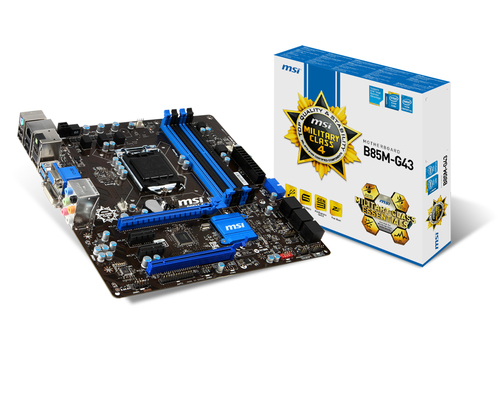

- ASUS A85XM-A motherboard AMD A85X Socket FM2 micro ATX vsMSI B85M-G43 motherboard Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs
