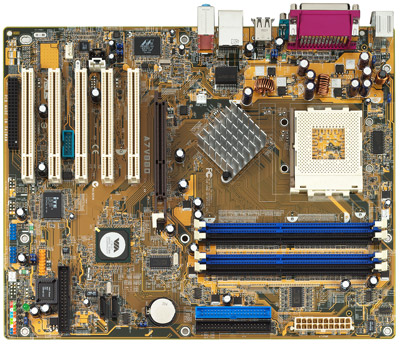

A7V880 Socket A (462) ATX
Model A7V880Part no. 9149
10 specifications
- Processor manufacturerAMD
- Maximum internal memory4 GB
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 4 GB
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- A7V880
- Part numbers
- 9149, 90-M7A840-G0EAYZ
- Also known as
- ASUS A7V880 Socket A (462) ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell Gigabit LAN controller supporting 10/100/1000 BASE-T Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X 5 x PCI 1 x ASUS Wi-Fi |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 245 |
| Audio output | ADI SoundMAX 6-channel audio CODEC |
| I/O ports | Back Panel I/O Ports: 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x SPDIF out 1 x RJ45 4 x USB 2.0 Internal I/O Connectors: - 2 x USB 2.0 connector support additional 4 USB 2.0 ports - CPU / Chassis FAN connectors - Chassis Intrusion - 20-pin ATX Power connector - S/PDIF |
