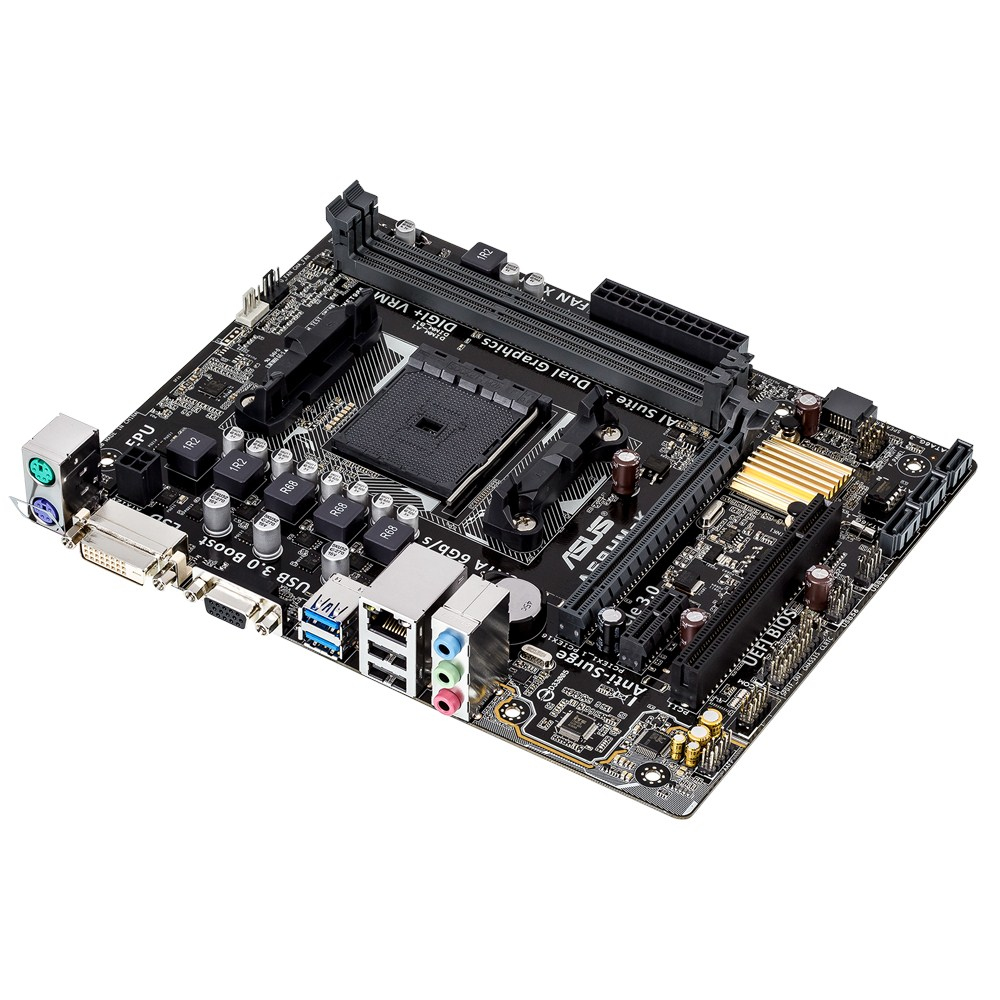

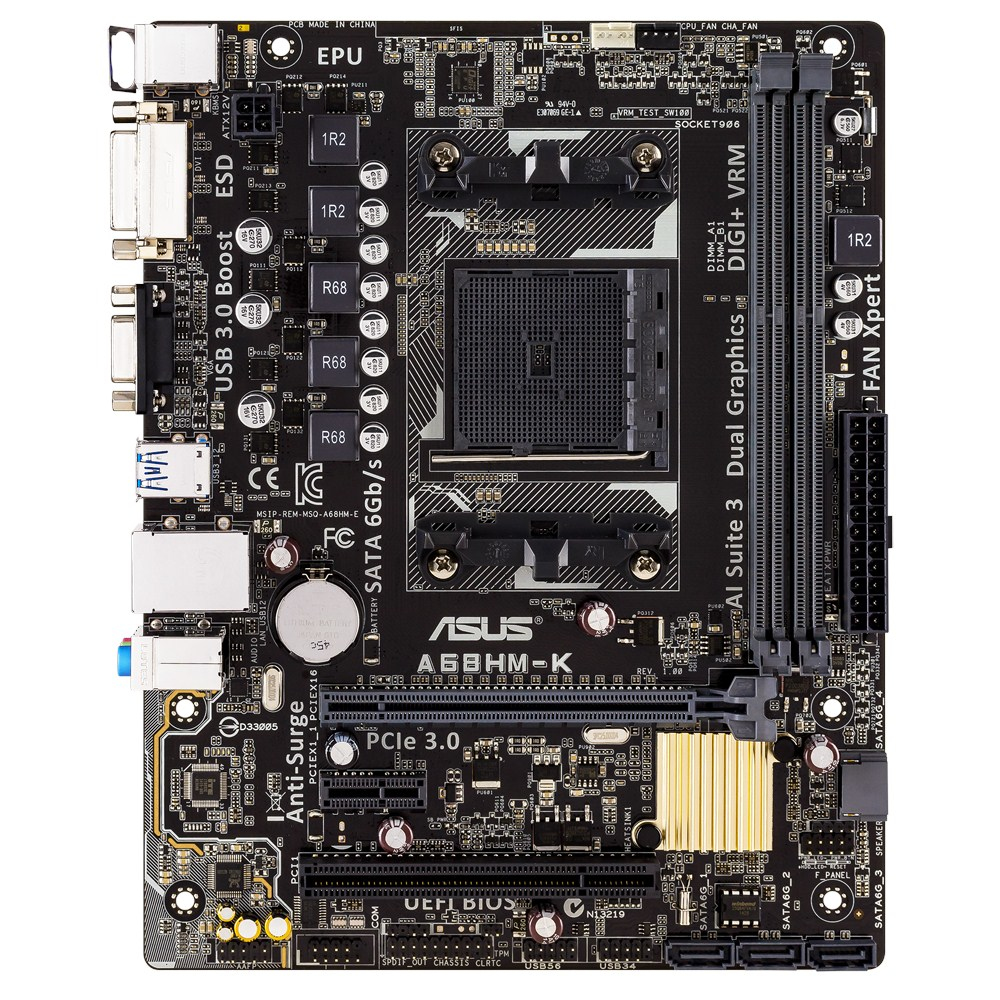

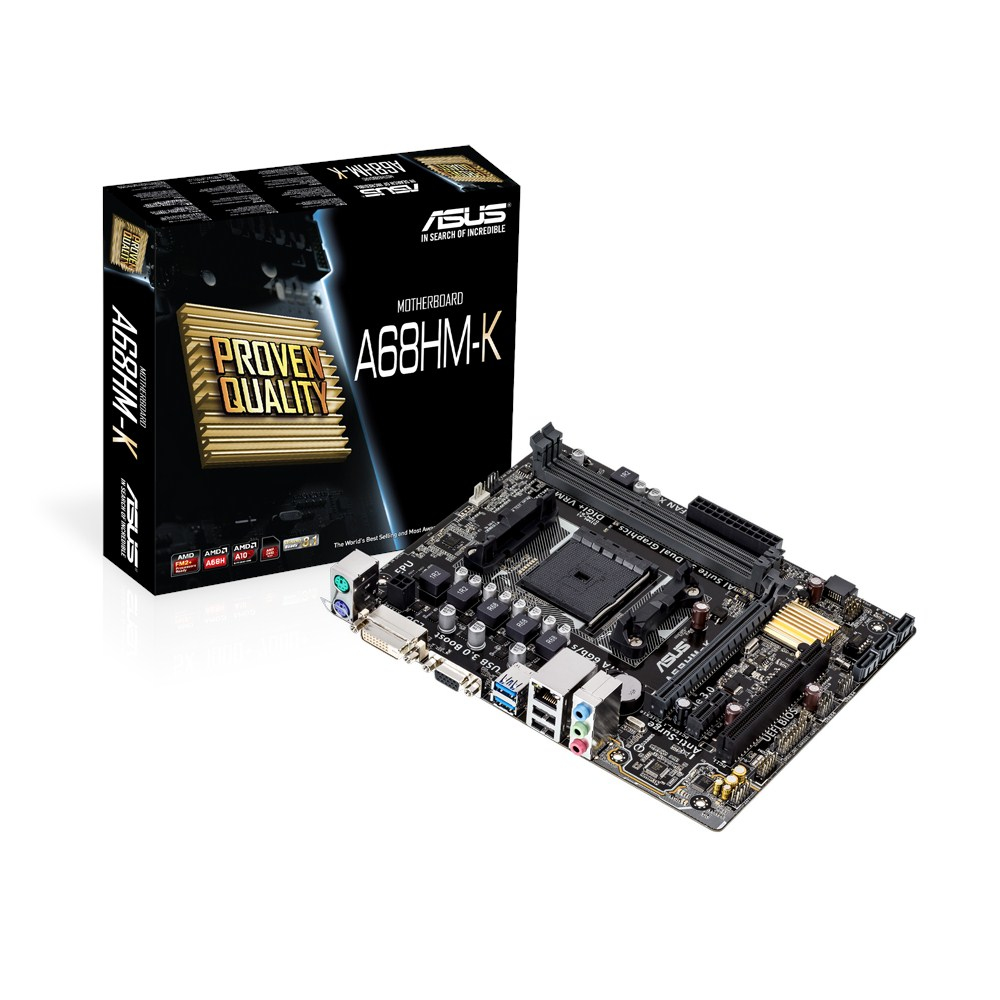

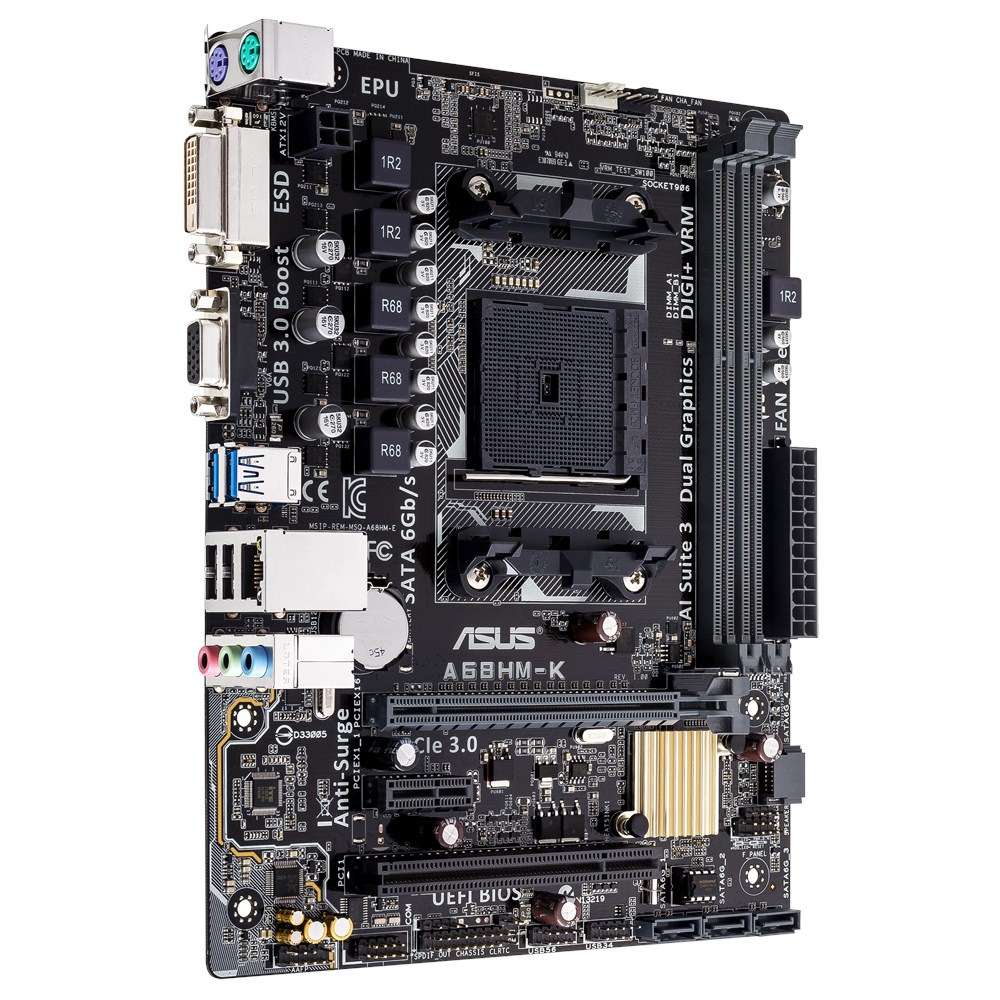

ASUS A68HM-K AMD A68 Socket FM2+ micro ATX

ASUS A68HM-K AMD A68 Socket FM2+ micro ATX

Model A68HM-KPart no. 90MB0KU0-M0AAY0EAN 8862279222390

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
ASUS
Category
Motherboard
Model
A68HM-K
Part numbers
90MB0KU0-M0AAY0, 90MB0KU0-M0EAY0, A68HM-K
EAN / UPC
8862279222390, 886227922239, 4053162745834, 4716659922230 +8 more
Also known as
ASUS A68HM-K AMD A68 Socket FM2+ micro ATX

Specifications

62 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory32 GB
Supported memory module capacities2GB, 4GB, 8GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 10, JBOD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
TPM connectorYes

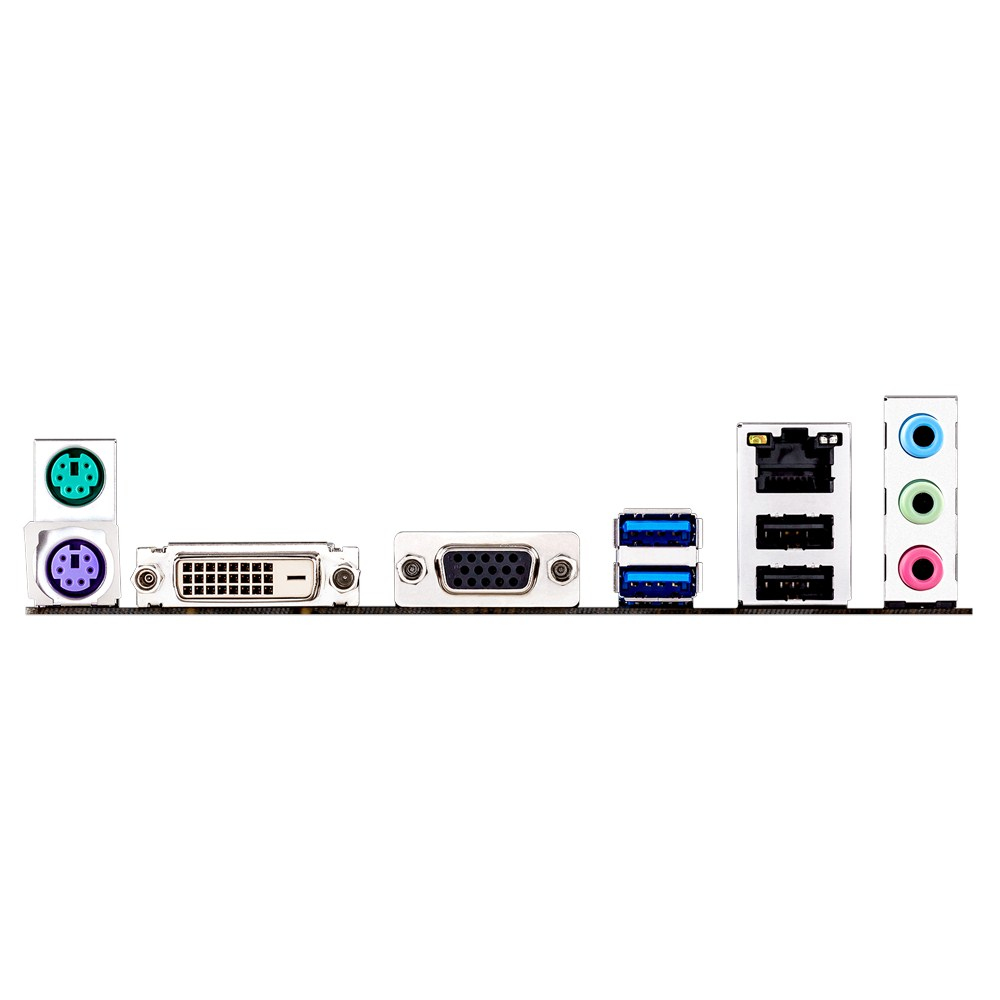

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111GR

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A68
Audio chipRealtek ALC887-VD
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version4.0a

Weight & dimensions

Width226 mm
Depth180 mm

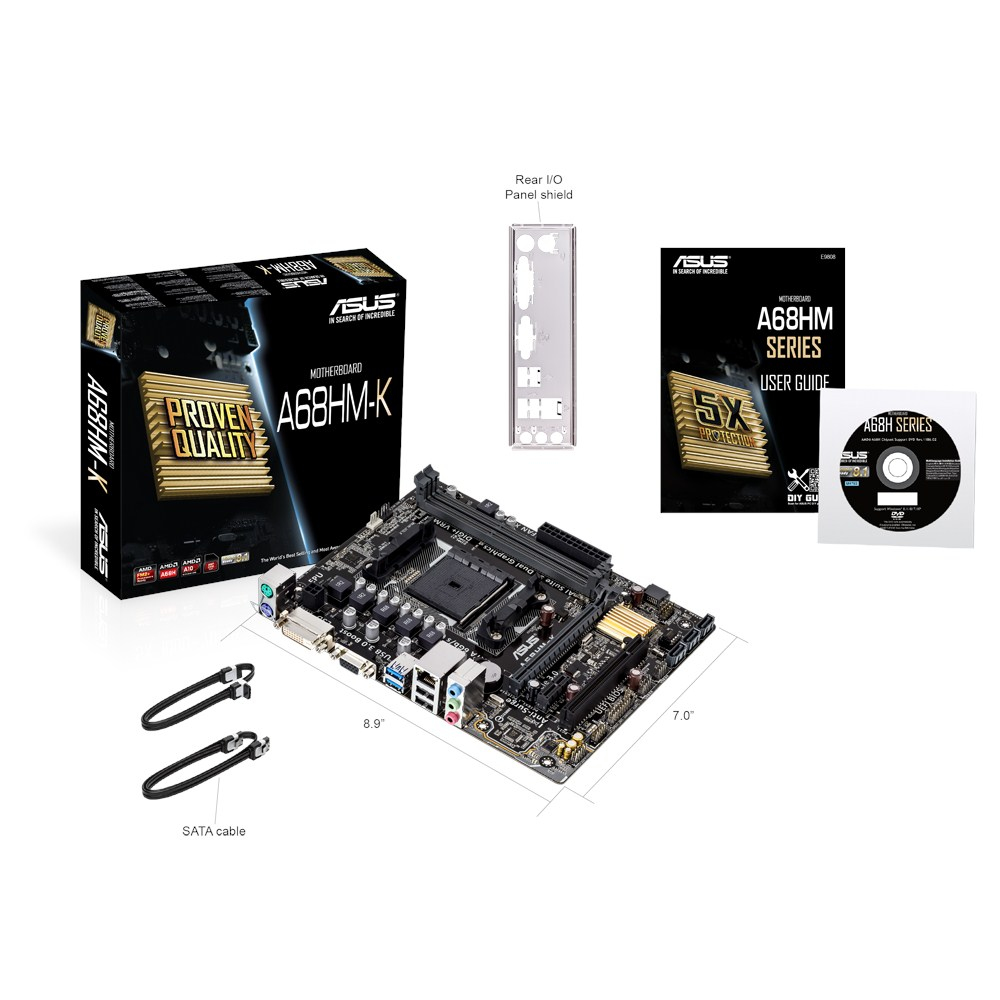

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAnti-virus

Other features

Quick installation guideYes
