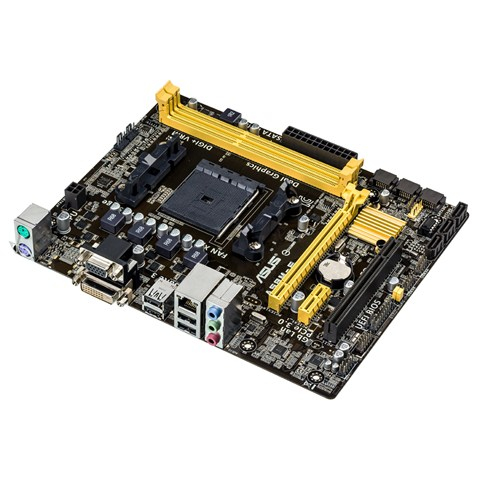

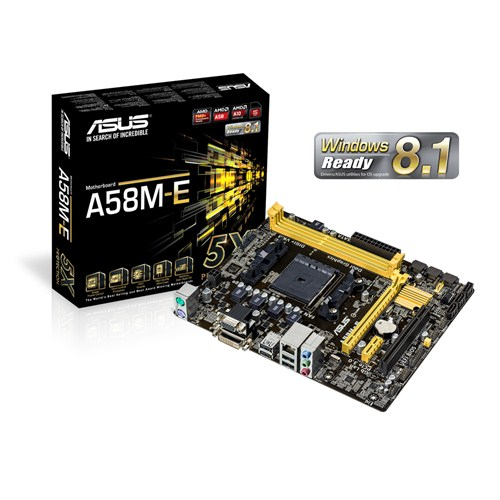

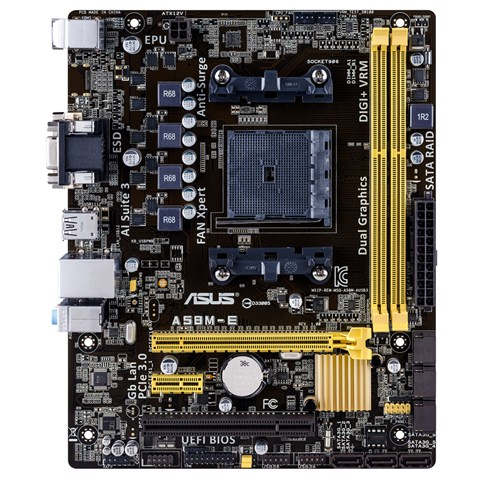

ASUS A58M-E AMD A58 FCH (Bolton D2) Socket FM2+ micro ATX

ASUS A58M-E AMD A58 FCH (Bolton D2) Socket FM2+ micro ATX

Model A58M-EPart no. 90MB0IZ0-M0EAY0EAN 8862277258544

45 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
A58M-E
Part number
90MB0IZ0-M0EAY0
EAN / UPC
8862277258544, 886227725854, 4053162745650, 4056572604470 +3 more
Also known as
ASUS A58M-E AMD A58 FCH (Bolton D2) Socket FM2+ micro ATX

Specifications

45 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2+
Compatible processor seriesAMD A

Memory

Supported memory typesDDR3-SDRAM
Memory slots typeDIMM
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors0
Number of SATA II connectors6
Number of SATA connectors6
Front panel audio connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors1
TPM connectorYes

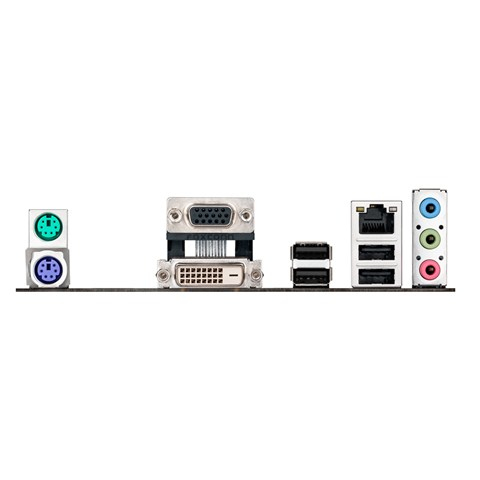

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek 8111GR

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A58 FCH (Bolton D2)
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version4.0a

Weight & dimensions

Width226 mm
Depth183 mm

Other features

S/PDIF in connectorYes
