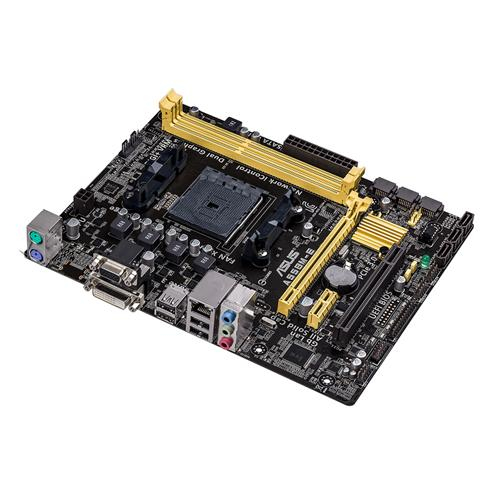

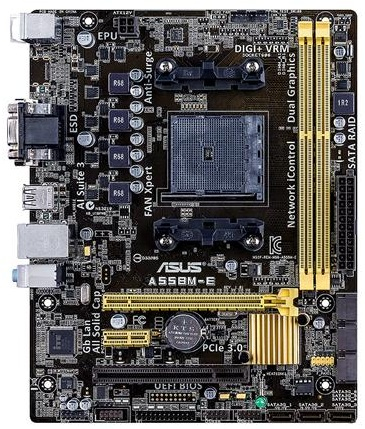

ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX
Model A55BM-EPart no. 90MB0H90-M0EAY0EAN 8862275783130
62 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA, SATA II
- Maximum graphics card memory2048 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA, SATA II
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- A55BM-E
- Part number
- 90MB0H90-M0EAY0
- EAN / UPC
- 8862275783130, 886227578313, 4054842412862, 4716659578314 +2 more
- Also known as
- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2+ |
| Compatible processor series | AMD A |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA II |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Graphics card family | AMD |
| Maximum resolution | 2560 x 1600 pixels |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

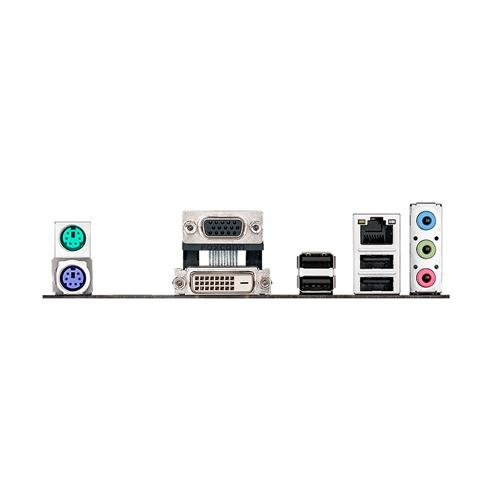

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 FCH |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 4.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231 mm |
| Depth | 183 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX
No reviews yet
Be the first to tell others how ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX
All motherboard comparisons- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsASUS A88XM-PLUS AMD A88X Socket FM2+ micro ATXCompare specs
- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

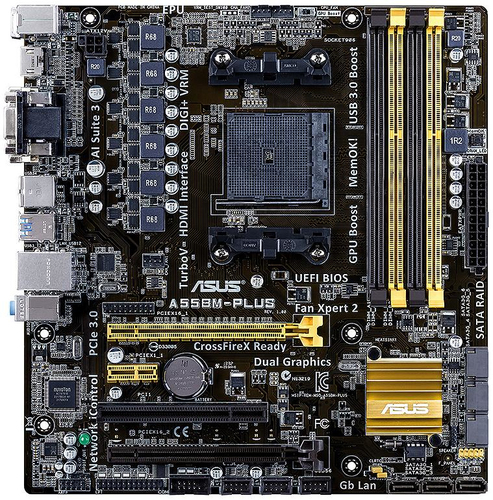

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsASUS A55BM-PLUS AMD A55 FCH Socket FM2+ micro ATXCompare specs

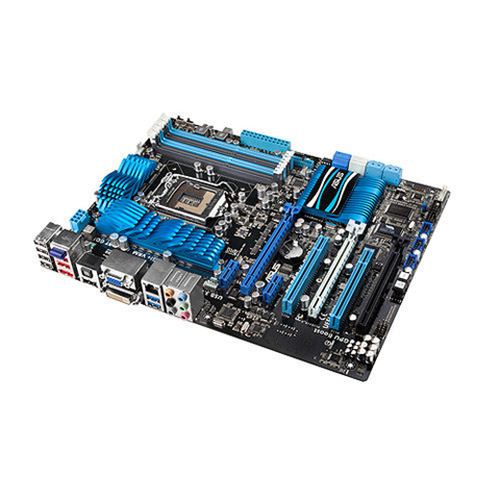

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsASUS P8Z68V-PRO motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs

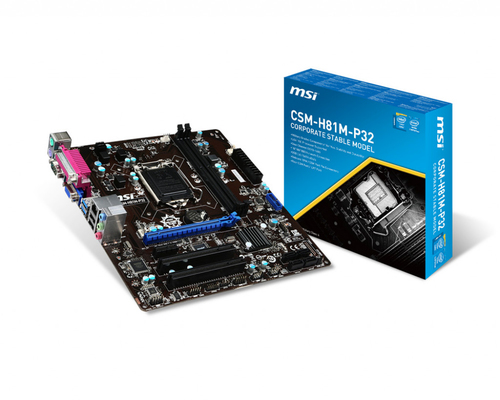

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsMSI CSM-H81M-P32 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

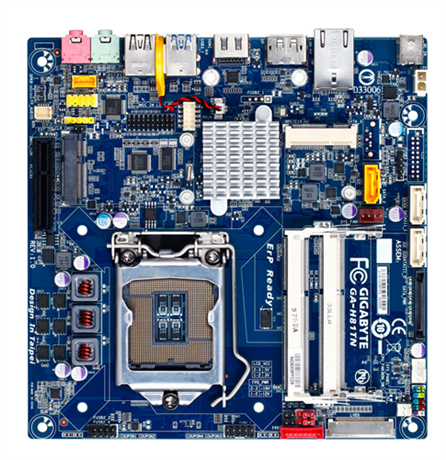

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsGIGABYTE GA-H81TN motherboard Intel® H81 LGA 1150 (Socket H3) mini ITXCompare specs

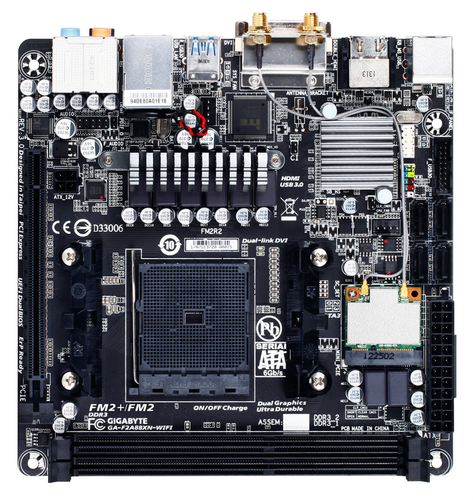

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsGIGABYTE GA-F2A88XN-WIFI motherboard AMD A88X Socket FM2+ mini ITXCompare specs

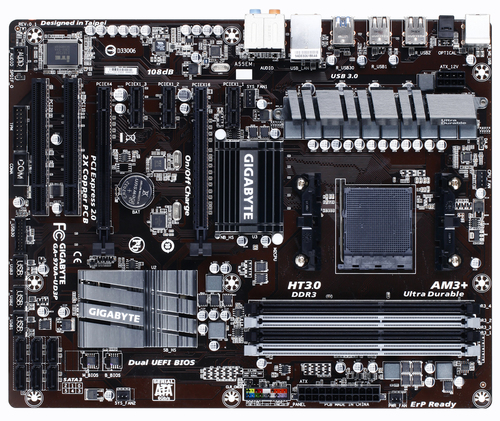

- ASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATX vsGIGABYTE GA-970A-UD3P motherboard AMD 970 Socket AM3+ ATXCompare specs
