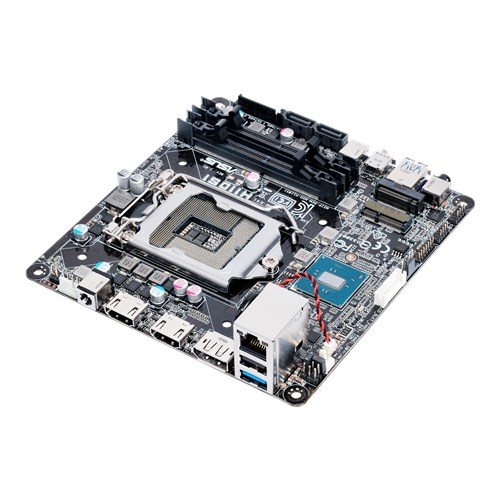

ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX
Model 90MB0R50-M0ECY0EAN 889349434642
74 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA, SATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors0
- USB 2.0 ports quantity1
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA, SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 0
- USB 2.0 ports quantity
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- 90MB0R50-M0ECY0
- Part number
- 90MB0R50-M0ECY0
- EAN / UPC
- 889349434642, 4058154138007
- Also known as
- ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX
Specifications
74 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 1 |
| Number of SATA connectors | 3 |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

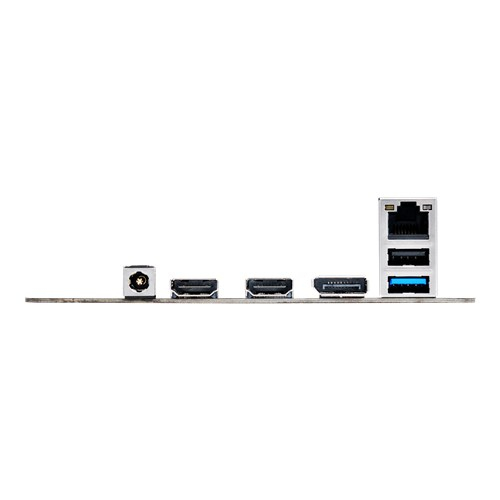

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 0 |
| Digital audio optical out | 0 |
| Thunderbolt ports quantity | 0 |
| COM ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| WiFi-AP antenna jack | 0 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-V |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Mini-STX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H110 |
| Audio chip | Realtek ALC3236 |
| Audio output channels | 4.0 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 147 mm |
| Depth | 140 mm |

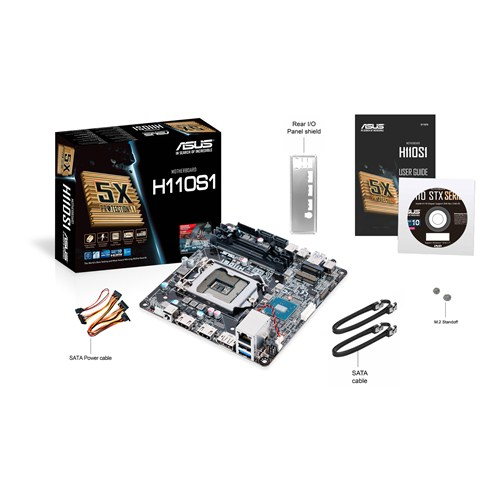

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| Analog audio output | 0 |
| Thunderbolt 2 ports quantity | 0 |
| LVDS connector | Yes |
| Number of SAS connectors | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
What people say
Reviews & ratings
ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX
No reviews yet
Be the first to tell others how ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX
All motherboard comparisons- ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX vsASUS Q170S1 motherboard Intel® Q170 LGA 1151 (Socket H4)Compare specs
- ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX vsASUS H110M-C2 motherboard Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs
- ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX vsASUS X99-E-10G WSCompare specs

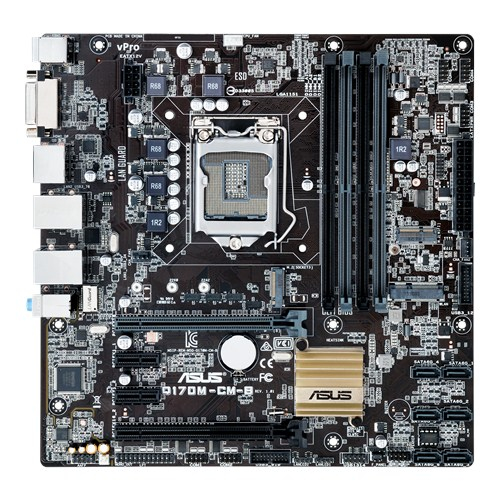

- ASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STX vsASUS MB Q170M-CM-BCompare specs
