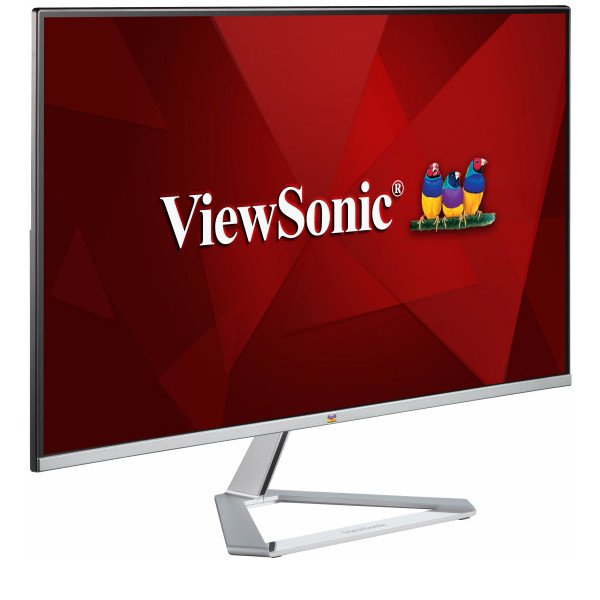

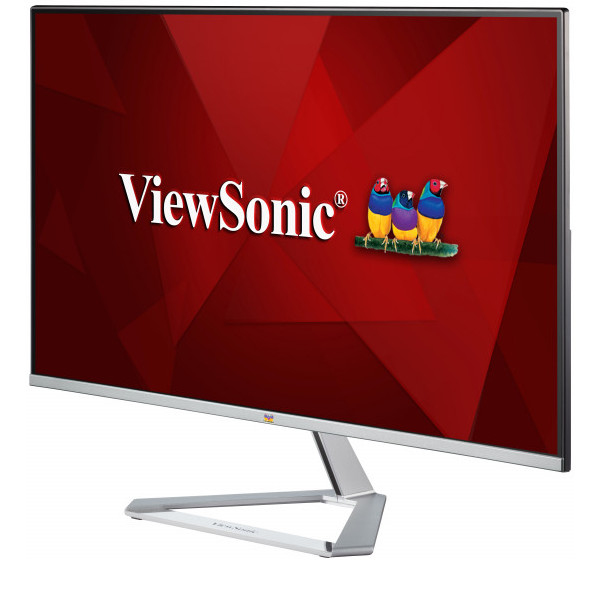

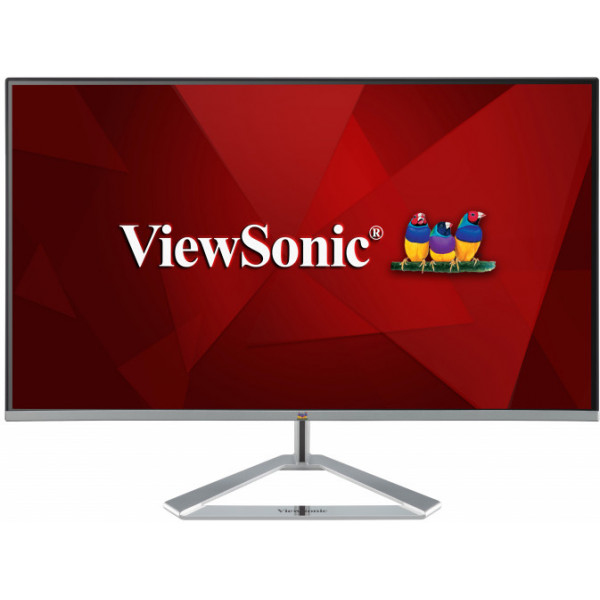

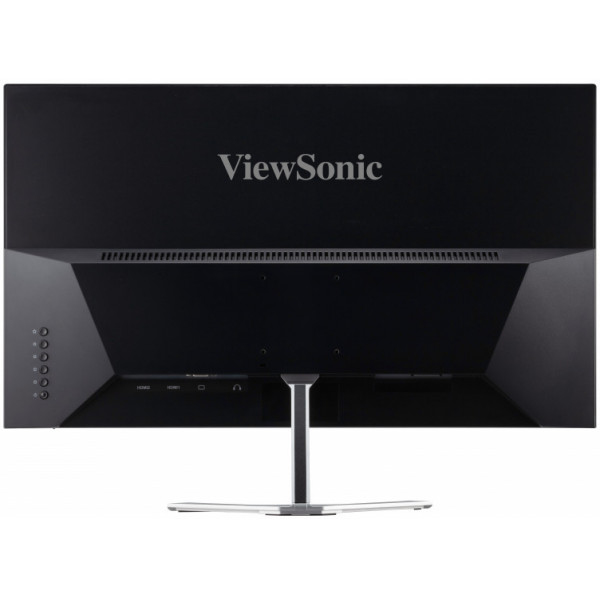

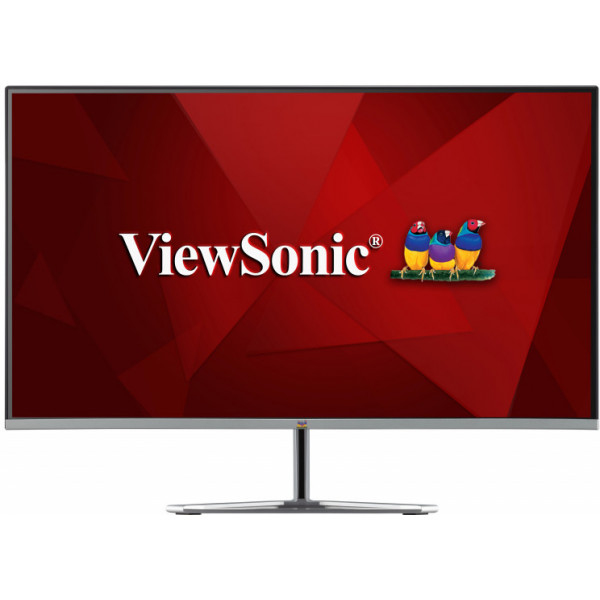

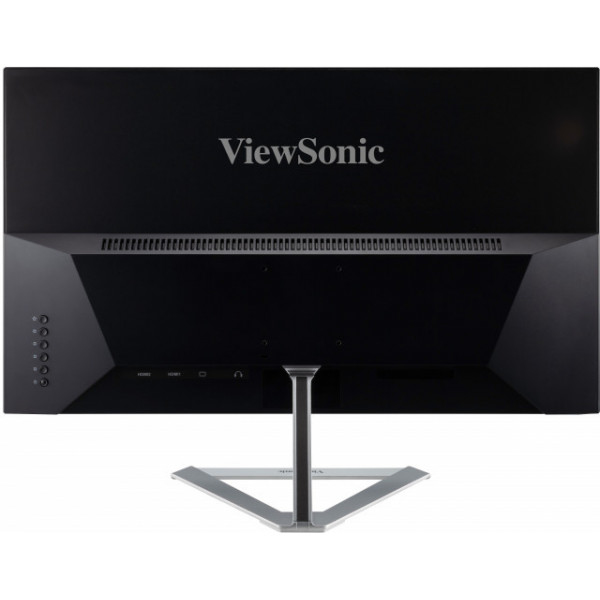

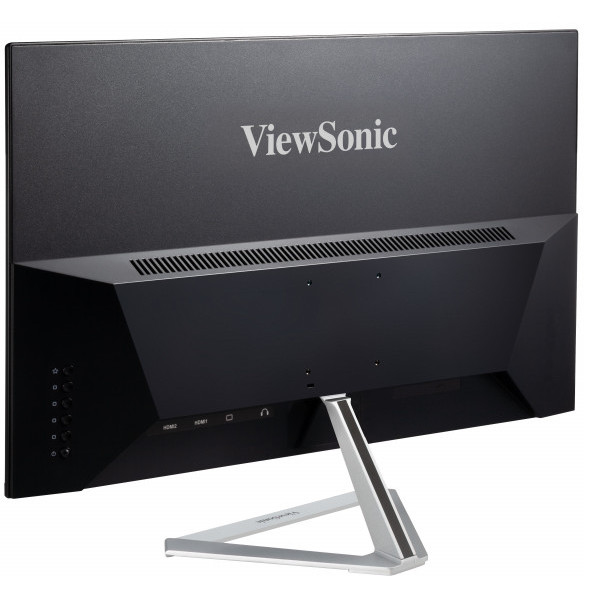

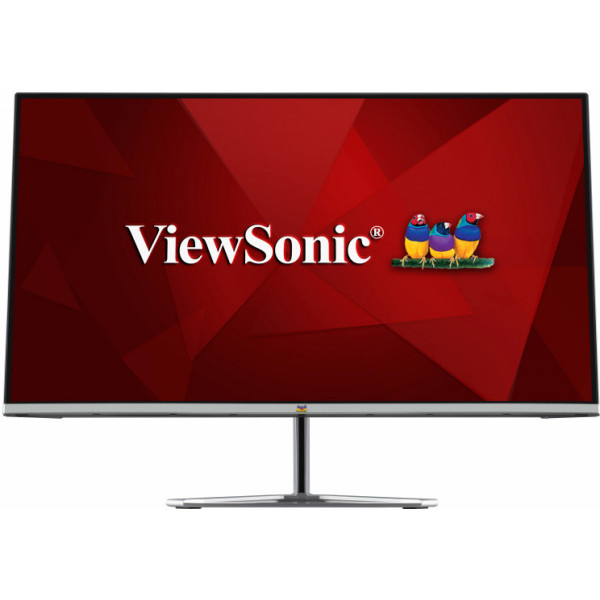

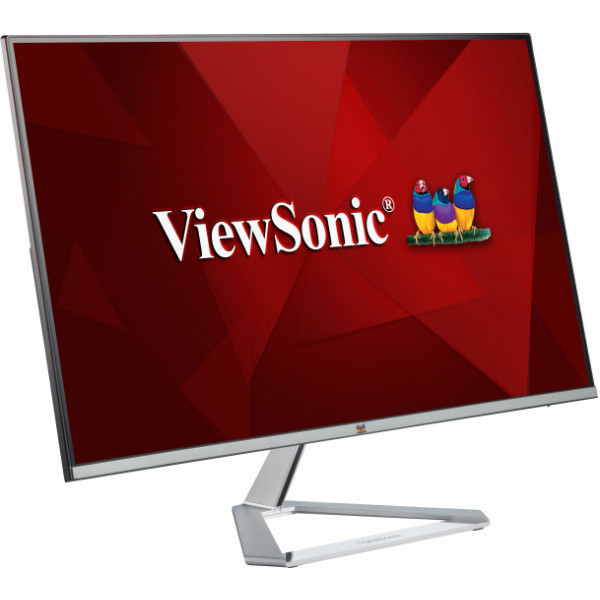

VX Series VX2776-SMH computer monitor
68.6 cm (27") 1920 x 1080 pixels Full HD LED Silver
Model VX2776-SMHEAN 766907006490
102 specifications Checked today
- Display68.6 cm (27")
- Resolution1920 x 1080 pixels
- Energy classF
- Weight4 kg
- ColourSilver
- NVIDIA G-SYNCNo
Overview
- Display
- 68.6 cm (27")
- Resolution
- 1920 x 1080 pixels
- Energy class
- F
- Weight
- 4 kg
- Colour
- Silver
- NVIDIA G-SYNC
- No
- Brand
- Viewsonic
- Category
- Monitor
- Model
- VX2776-SMH
- Part number
- VX2776-SMH
- EAN / UPC
- 766907006490
- Also known as
- Viewsonic VX Series VX2776-SMH computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD LED Silver
Specifications
102 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 250 cd/m² |
| Response time | 4 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 15 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Viewable size, horizontal | 59.8 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 68.58 cm |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 72% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Silver |
| Frameless design | Yes |
| Front bezel colour | Silver |
| Detachable stand | Yes |
| Feet colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 21° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 14 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 24 kWh |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.2 W |
| Power consumption (PowerSave) | 18 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 614 mm |
| Depth (with stand) | 184 mm |
| Height (with stand) | 443 mm |
| Weight (with stand) | 4 kg |
| Width (without stand) | 614 mm |
| Depth (without stand) | 49 mm |
| Height (without stand) | 357 mm |
| Weight (without stand) | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 702 mm |
| Package depth | 462 mm |
| Package height | 112 mm |
| Package weight | 5.5 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Weight | 4 kg |
| Certification | CE, CE EMC, CB, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.11 m |
| Harmonized System (HS) code | 8528521000 |
