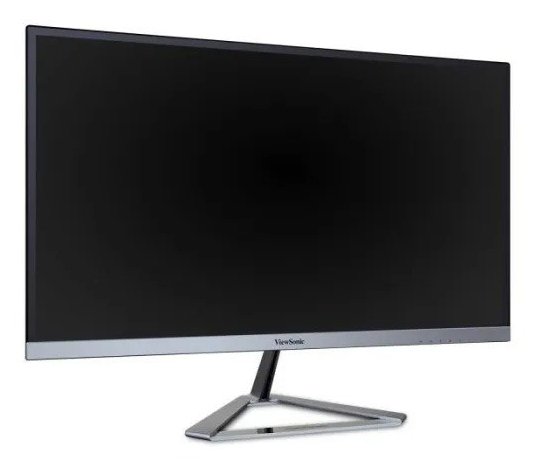

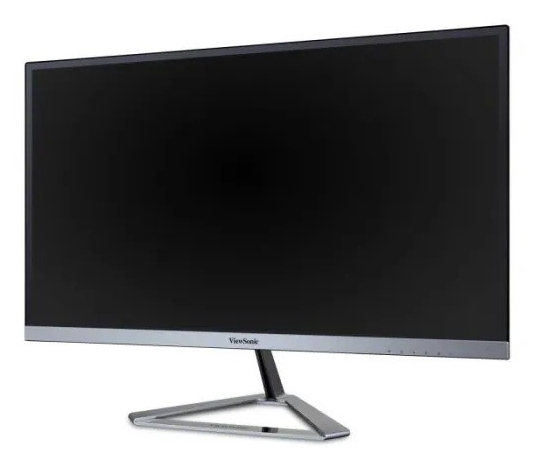

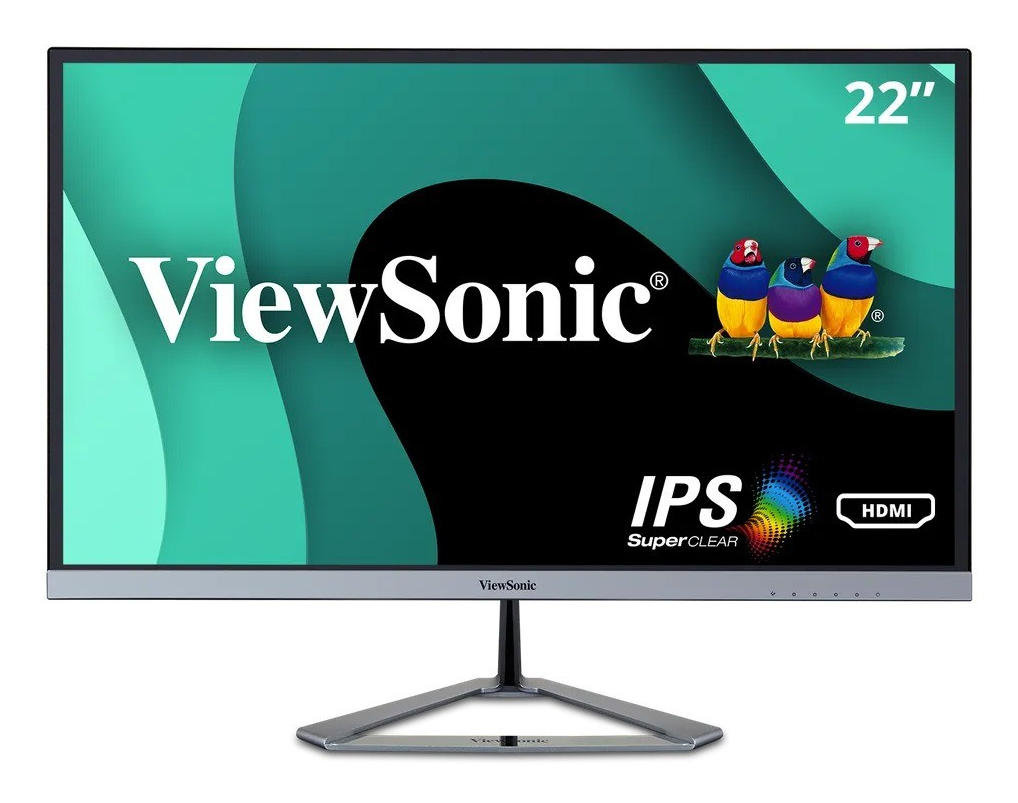

VX Series VX2276-SMHD-2 computer monitor
55.9 cm (22") 1920 x 1080 pixels Full HD LED Black, Silver
Model VX2276-SMHD-2EAN 766907023671
72 specifications Checked today
- Display55.9 cm (22")
- Resolution1920 x 1080 pixels
- ColourBlack, Silver
- Game modeYes
- Built-in USB hubNo
- Power consumption (typical)21 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black, Silver
- Game mode
- Yes
- Built-in USB hub
- No
- Power consumption (typical)
- 21 W
- Brand
- Viewsonic
- Category
- Monitor
- Model
- VX2276-SMHD-2
- Part number
- VX2276-SMHD-2
- EAN / UPC
- 766907023671
- Also known as
- Viewsonic VX Series VX2276-SMHD-2 computer monitor 55.9 cm (22") 1920 x 1080 pixels Full HD LED Black, Silver
Specifications
72 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Display brightness (typical) | 250 cd/m² |
| Response time | 7 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display diagonal (metric) | 56 cm |
| Surface hardness | 3H |
Performance
| Specification | Value |
|---|---|
| Game mode | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Refurbished | Yes |

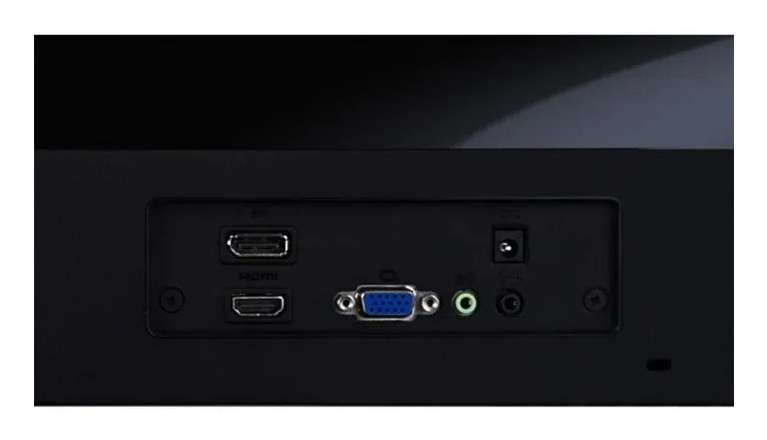

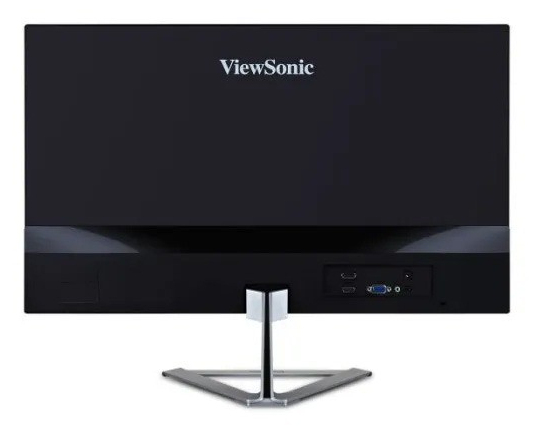

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |

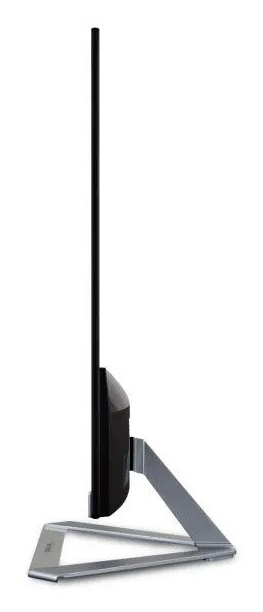

| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21 W |
| Power consumption (max) | 30 W |
| Power consumption (PowerSave) | 15 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |

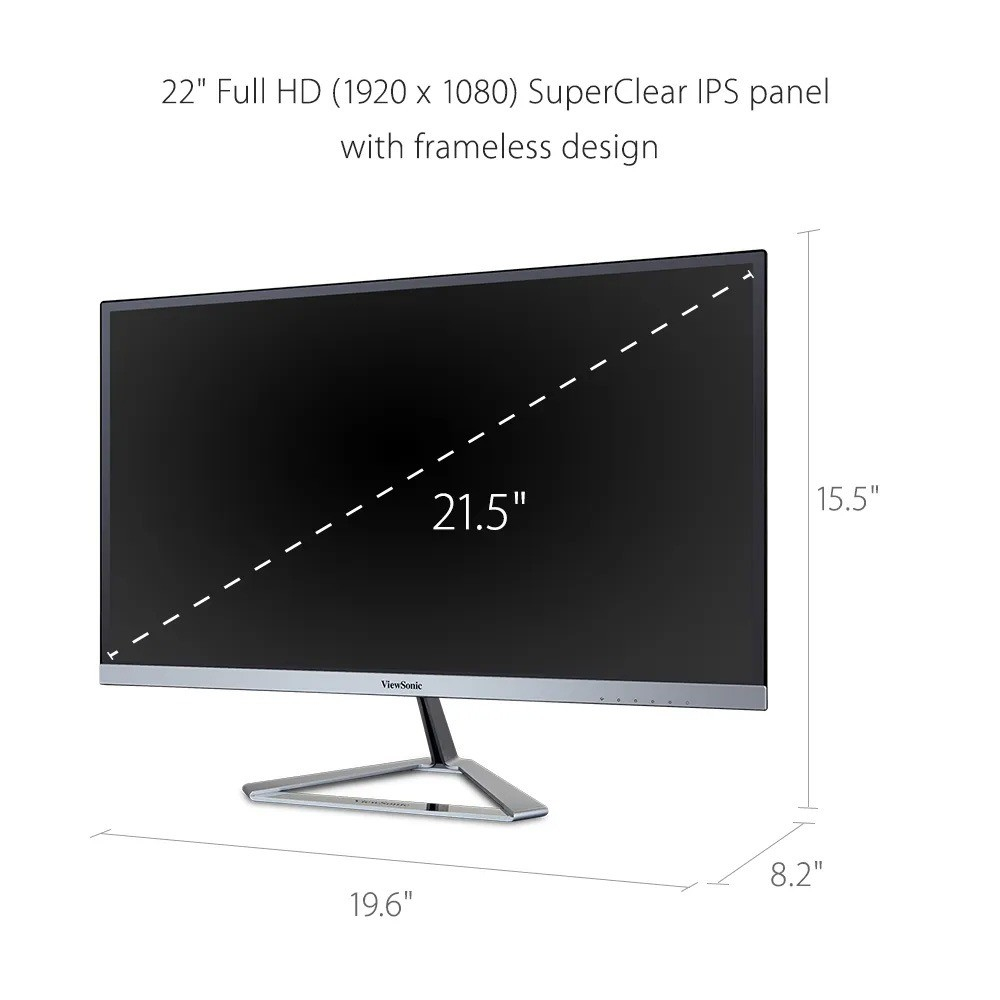

Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 498 mm |
| Depth (with stand) | 209 mm |
| Height (with stand) | 393 mm |
| Weight (with stand) | 2.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 563 mm |
| Package depth | 115 mm |
| Package height | 382 mm |
| Package weight | 4.6 kg |

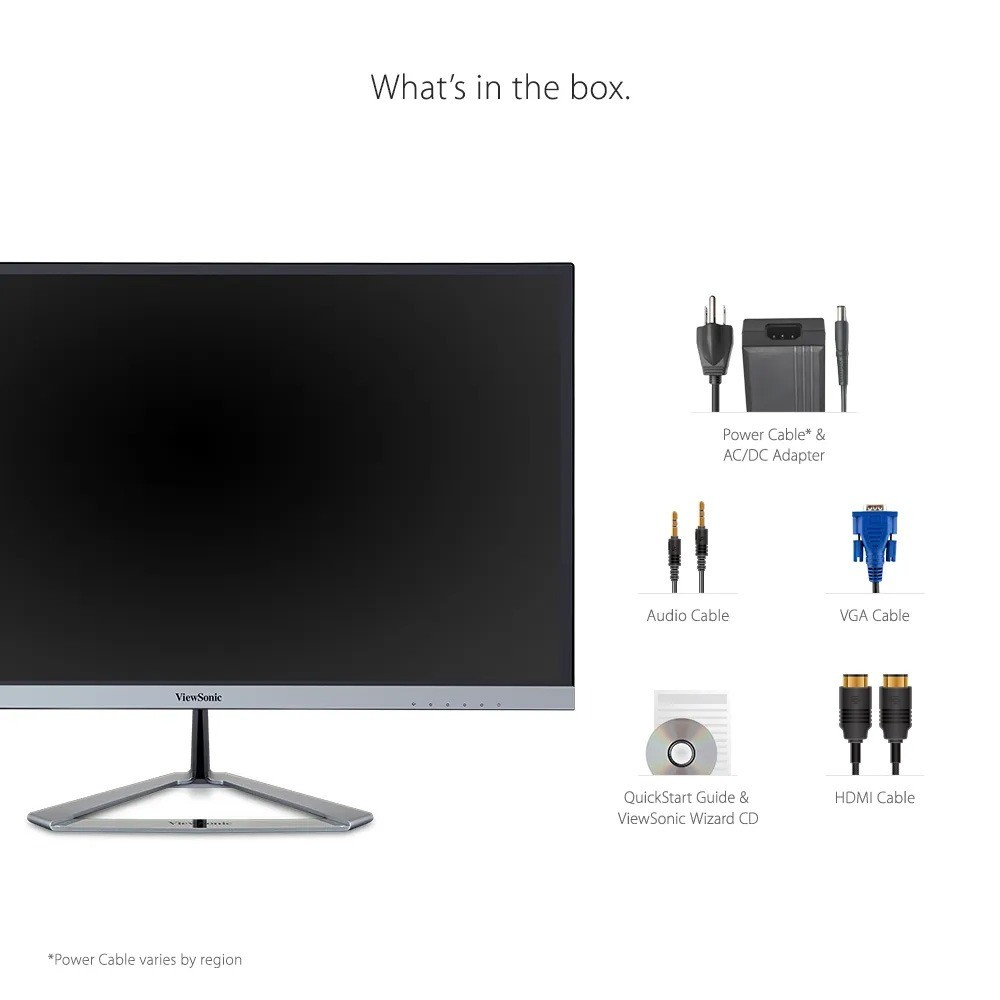

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), VGA, HDMI |
| Quick start guide | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT, California Energy Commission (CEC) |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Active display area (W x H) | 476.06 x 267.79 mm |
| Compliance certificates | WEEE, CE, EAC, Federal Communications Commission (FCC), cULus, ICES |
| ECO mode | Yes |
| Certification | CE, CB, RoHS, ErP, REACH, WEEE, UL, FCC, Energy Star 7.0, EPEAT Silver, CU, BSMI, CCC |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
