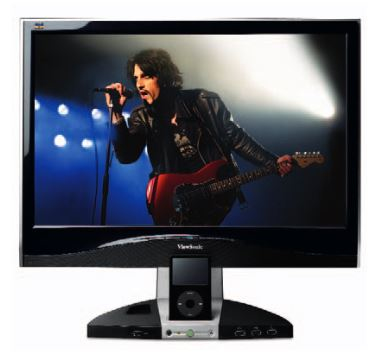

Viewsonic X Series VX2245wm computer monitor

Viewsonic X Series VX2245wm computer monitor

55.9 cm (22") 1680 x 1050 pixels LCD Black, Silver

Model VX2245wmPart no. VS11349EAN 766907231526

72 specifications Checked 4 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack, Silver
Built-in speaker(s)Yes
USB hub version2.0
Power consumption (typical)62 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black, Silver
Built-in speaker(s): Yes
USB hub version: 2.0
Power consumption (typical): 62 W

Brand: Viewsonic
Category: Monitor
Model: VX2245wm
Part number: VS11349
EAN / UPC: 766907231526
Also known as: Viewsonic X Series VX2245wm computer monitor 55.9 cm (22") 1680 x 1050 pixels LCD Black, Silver

Specifications

72 specifications in 12 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	280 cd/m²
Response time	5 ms
Display surface	Matt
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	700:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 85 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
3D	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	5 W
Built-in camera	No

Design

Specification	Value
Product colour	Black, Silver

Ports & interfaces

Specification	Value
USB hub version	2.0
USB Type-A downstream ports quantity	5
VGA (D-Sub) ports quantity	0
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Audio input	Yes
Audio output	Yes
AC (power) in	Yes
Card reader integrated	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	62 W
Power consumption (PowerSave)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 30 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Specification	Value
Width (with stand)	524 mm
Depth (with stand)	212 mm
Height (with stand)	493 mm
Weight (with stand)	6.2 kg
Width (without stand)	524 mm
Depth (without stand)	58 mm
Height (without stand)	388 mm
Weight (without stand)	4.8 kg

Packaging data

Specification	Value
Package width	580 mm
Package depth	260 mm
Package height	610 mm
Package weight	8.5 kg
User Guide on CD-ROM	Yes

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, VGA
Quick start guide	Yes

Other features

Specification	Value
On/off switch	Yes
Built-in subwoofer	Yes
Subwoofer RMS power	3 W
TV tuner integrated	No
Certification	CE, CB, ERGO, ISO13406-2 (Pixelfehlerklasse 2), GOST-R + 20 Original Copies Hygienic, UL, cUL, FCC-B, ENERGY STAR®, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
