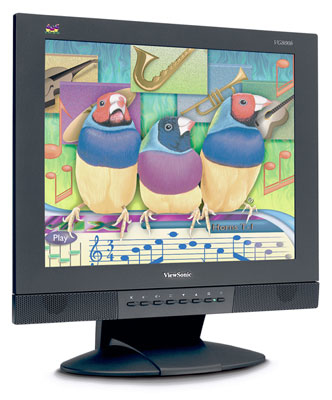

Graphic Series VG800B computer monitor

45.7 cm (18") 1280 x 1024 pixels LCD Black

Model VG800BEAN 766907710854

54 specifications Checked today

Overview

Brand: Viewsonic
Category: Monitor
Model: VG800B
Part number: VG800B
EAN / UPC: 766907710854
Also known as: Viewsonic Graphic Series VG800B computer monitor 45.7 cm (18") 1280 x 1024 pixels LCD Black

54 specifications in 10 groups

Specification	Value
Display diagonal	45.7 cm (18")
Display resolution	1280 x 1024 pixels
Native aspect ratio	4:3
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	25 ms
Display surface	Matt
Supported graphics resolutions	1280 x 1024 (SXGA)
Aspect ratio	4:3
Contrast ratio (typical)	500:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Display number of colours	16.78 million colours
Pixel pitch	0.279 x 0.279 mm
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 85 Hz
Viewable size, horizontal	35.7 cm
Viewable size, vertical	28.6 cm
3D	No
Surface treatment	Anti-glare

Specification	Value
Market positioning	Business
Product colour	Black

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI ports quantity	0
Audio input	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	No
DC-in jack	Yes
I/O ports	Analogue RGB 15-pin mini D-sub (detachable) Audio 3.5mm Stereo Audio Line-In Power DC In, DC to head (12V) Headphones 3.5mm Stereo Audio Line-Out

Specification	Value
Cable lock slot	No
Height adjustment	No

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	TCO '95, TMV/GS, TMV/ERGO, ISO 13406-2 (class 2), ISO 9241-3, ISO 9241-7, ISO 9241-8, Energy 2000, CE, CB FCC-B, UL, VCCI, BSMI, PSB, C-TICK, NEMKO, SEMKO, DEMKO, FIMKO, Gost-R, PCBC, PC '2001, SASO
Supplied AC adapter type	LCD, Displays a native resolution of 1280 x 1024 (1.3 megapixels)
