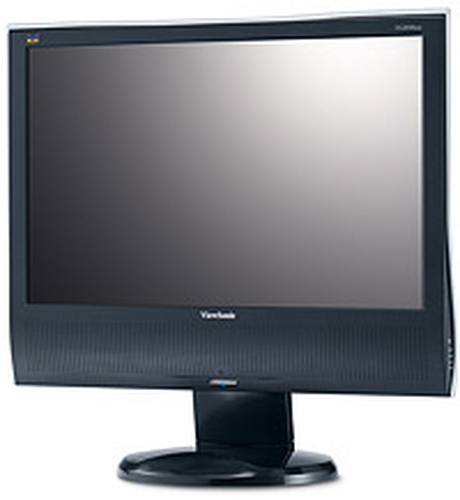

Viewsonic Graphic Series VG2230wm computer monitor

Viewsonic Graphic Series VG2230wm computer monitor

55.9 cm (22") 1680 x 1050 pixels LCD Black

Model VG2230wmPart no. VS11422EAN 766907228816

72 specifications Checked 4 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)Yes
Market positioningBusiness
USB Type-A downstream ports quantity0

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): Yes
Market positioning: Business
USB Type-A downstream ports quantity: 0

Brand: Viewsonic
Category: Monitor
Model: VG2230wm
Part numbers: VS11422, VG2230WM-EU
EAN / UPC: 766907228816, 7669072288162
Also known as: Viewsonic Graphic Series VG2230wm computer monitor 55.9 cm (22") 1680 x 1050 pixels LCD Black

Specifications

72 specifications in 11 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	4:3
Display technology	LCD
Touchscreen	No
Panel type	TFT
Display brightness (typical)	280 cd/m²
Response time	5 ms
Display surface	Matt
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	4:3
Contrast ratio (typical)	700:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	24 - 82 kHz
Vertical scan range	50 - 85 Hz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	29.8 cm
Digital horizontal frequency	24 - 82 kHz
Digital vertical frequency	50 - 85 Hz
3D	No
Surface treatment	Anti-glare

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
Audio input	Yes
AC (power) in	Yes
I/O ports	15-pin mini D-sub 24-pin DVI-D 3.5mm stereo audio line-in 3-pin AC plug (CEE22)

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	13.5 cm
Swivelling	Yes
Swivel angle range	-180 - 180°
Tilt adjustment	Yes
Tilt angle range	-5 - 20°
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	43 W
Power consumption (PowerSave)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Maximum operating temperature range (T-T)	40

Weight & dimensions

Specification	Value
Width (with stand)	519 mm
Depth (with stand)	250 mm
Height (with stand)	436 mm
Weight (with stand)	6.6 kg
Width (without stand)	519 mm
Depth (without stand)	60 mm
Height (without stand)	392 mm

Packaging data

Specification	Value
Package width	570 mm
Package depth	300 mm
Package height	530 mm
Package weight	8.6 kg

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Certification	TCO’03, TÜV/GS, TÜV/Ergo, ISO13406-2 (Pixelfehlerklasse 2), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, NOM, SASO, ENERGY STAR, C-Tick, MIC, BSMI, PSB, MPR II, Argentina TÜV-S, CCC, WEEE, RoHS
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
