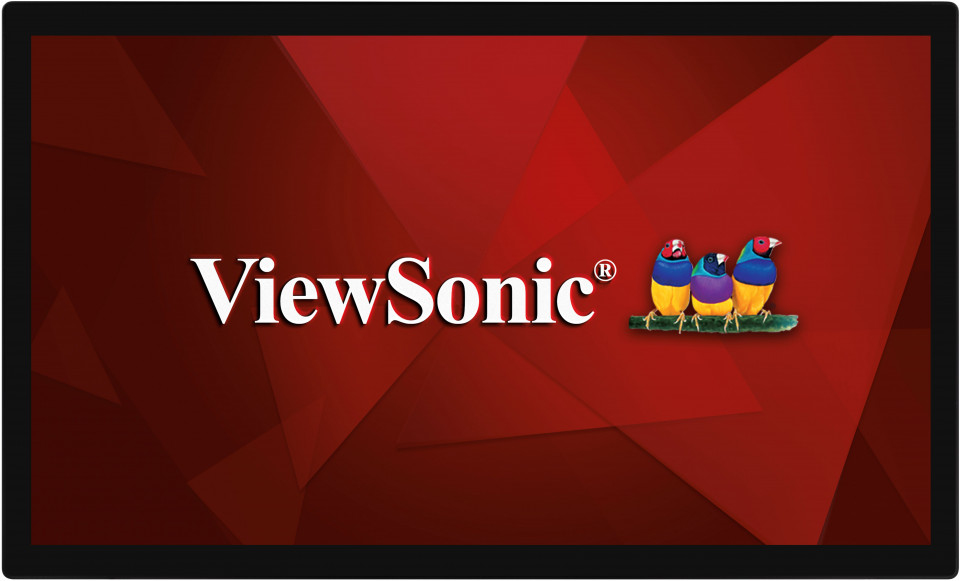

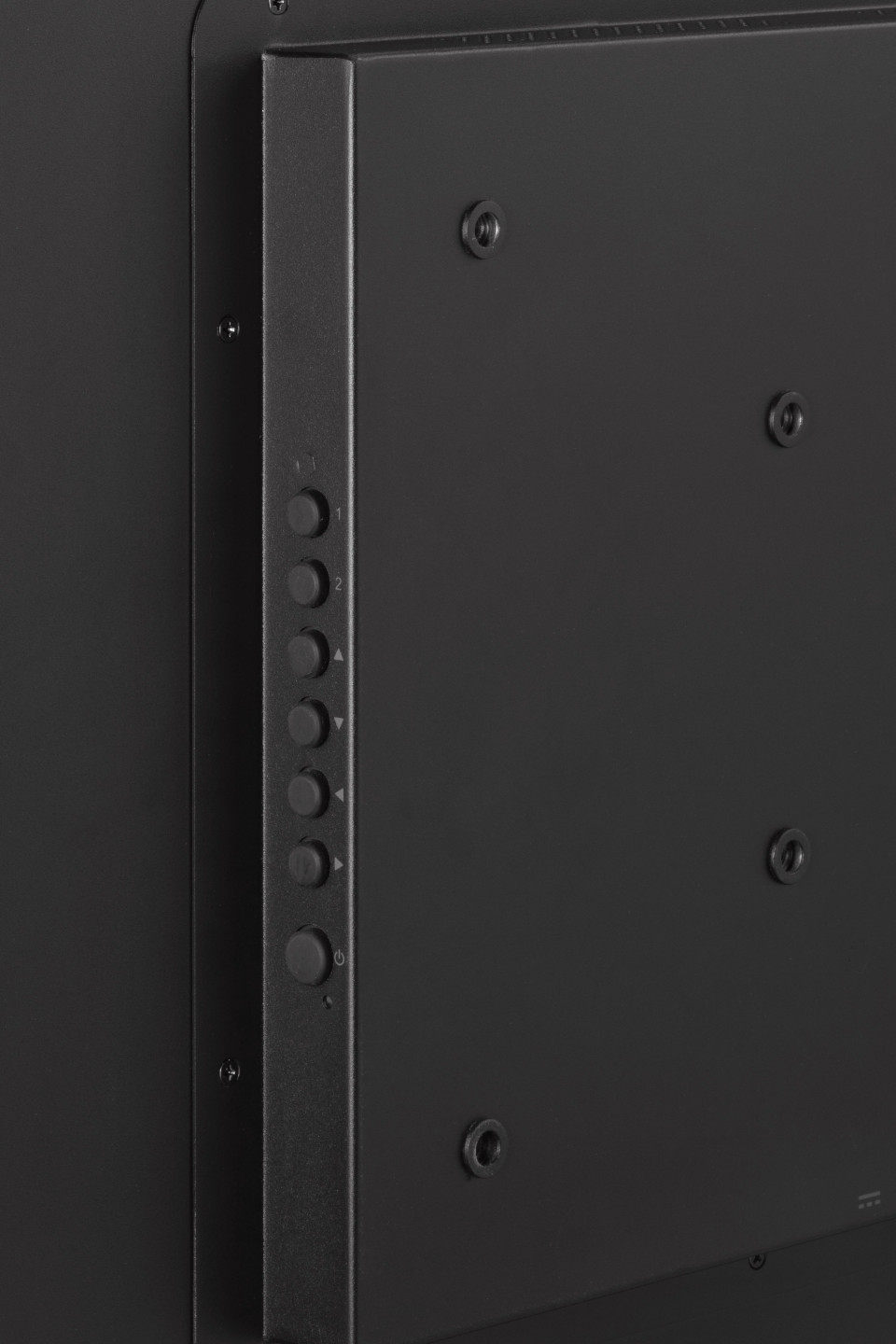

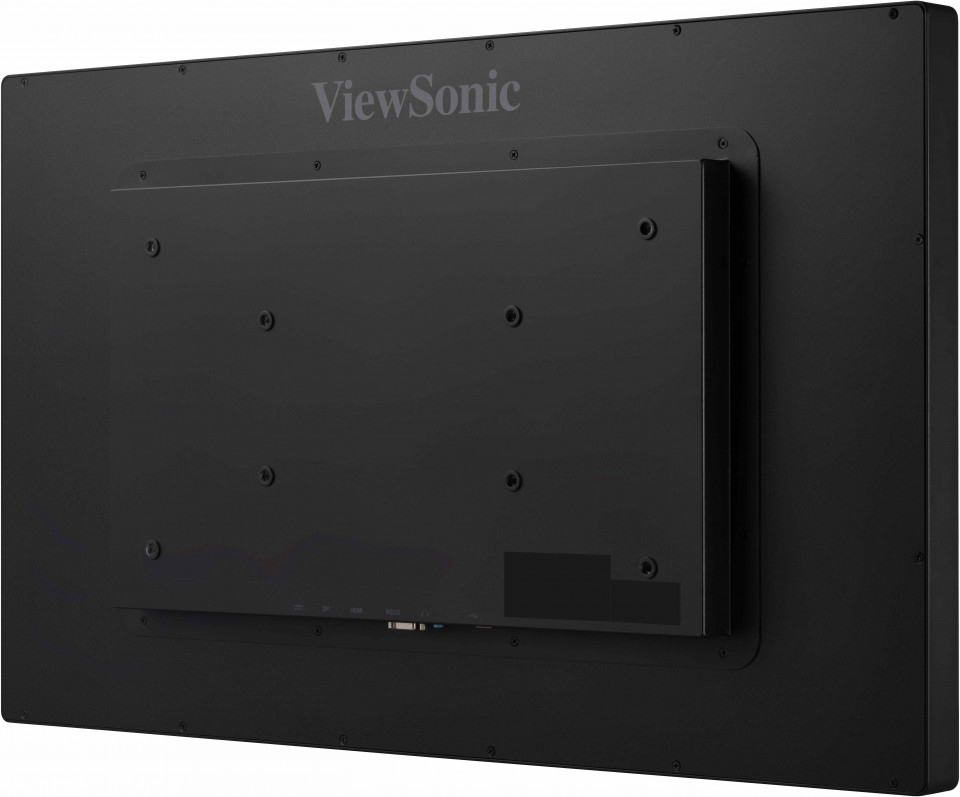

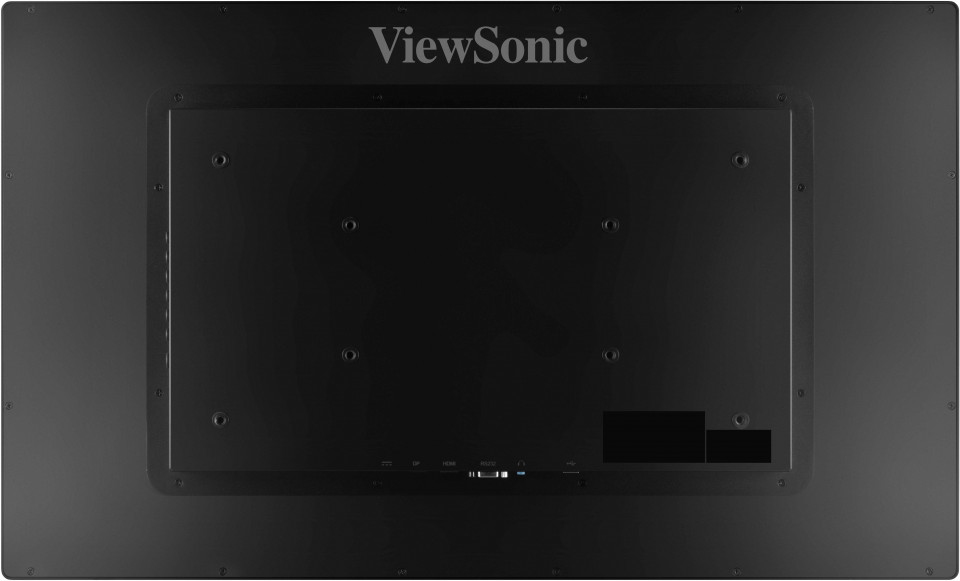

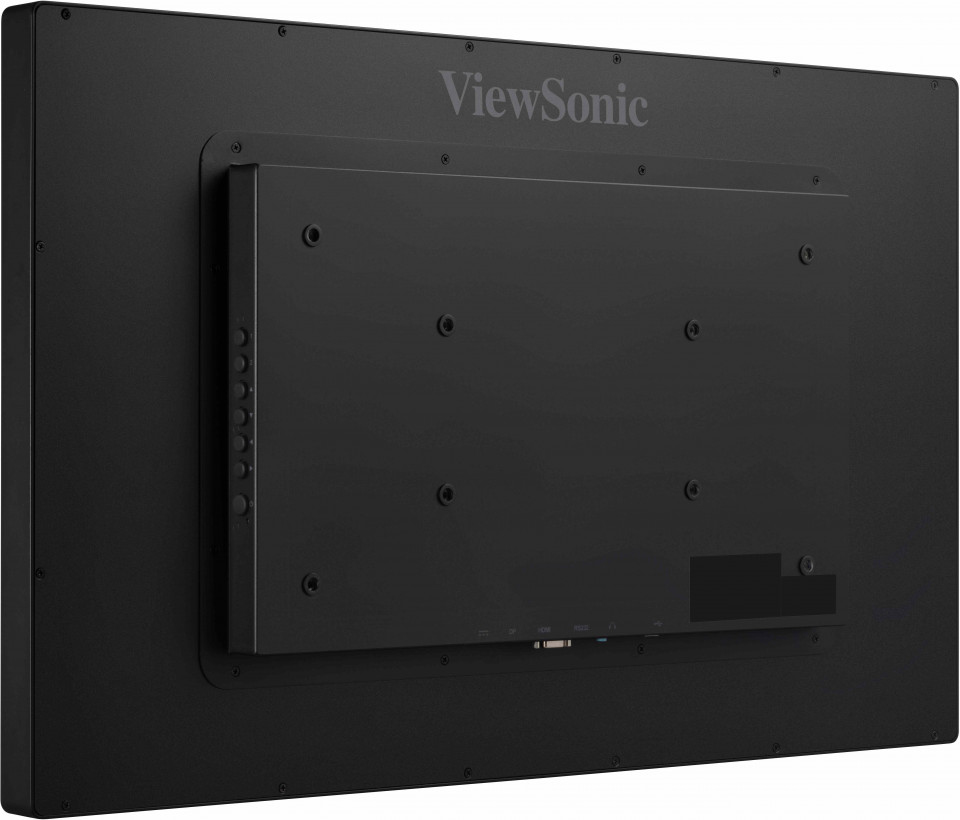

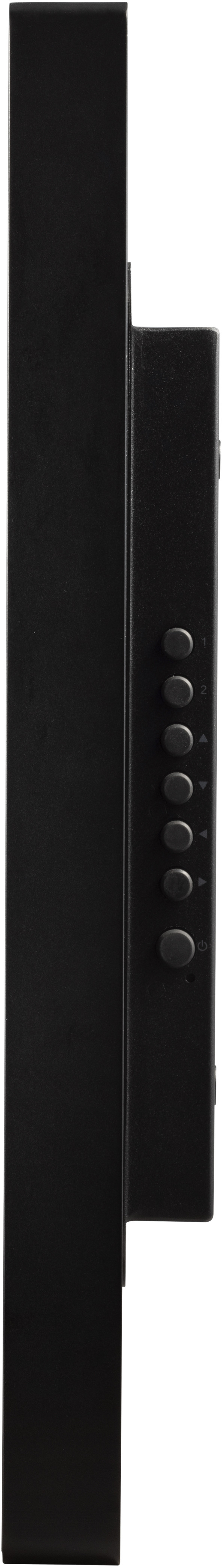

TD3207 computer monitor
81.3 cm (32") 1920 x 1080 pixels Full HD LED Touchscreen
Model TD3207EAN 766907010466
74 specifications Checked today
- Display81.3 cm (32")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight12.8 kg
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 81.3 cm (32")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 12.8 kg
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- Viewsonic
- Category
- Monitor
- Model
- TD3207
- Part number
- TD3207
- EAN / UPC
- 766907010466
- Also known as
- Viewsonic TD3207 computer monitor 81.3 cm (32") 1920 x 1080 pixels Full HD LED Touchscreen
Specifications
74 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 81.3 cm (32") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | VA |
| LED backlight | Yes |
| Backlight type | LED |
| Touchscreen technology | Capacitive |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 450 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.364 x 0.364 mm |
| Horizontal scan range | 15 - 73 kHz |
| Vertical scan range | 47 - 75 Hz |
| Digital horizontal frequency | 15 - 73 kHz |
| Digital vertical frequency | 47 - 75 Hz |
| Surface hardness | 7H |
| Colour gamut standard | NTSC |
| Colour gamut | 72% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Design
| Specification | Value |
|---|---|
| Glass thickness | 3 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |
| RS-232 ports | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 25.8 kWh |
| Power consumption (typical) | 43 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 45.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 747 mm |
| Depth (with stand) | 451 mm |
| Height (with stand) | 64 mm |
| Weight (with stand) | 12.8 kg |
| Width (without stand) | 747 mm |
| Depth (without stand) | 451 mm |
| Height (without stand) | 64 mm |
| Weight (without stand) | 12.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 863 mm |
| Package depth | 163 mm |
| Package height | 577 mm |
| Package weight | 15.5 kg |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP54 |
| Weight | 12.8 kg |
| Certification | Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 187 cm |
| Harmonized System (HS) code | 8528521000 |
Energy efficiency
ENERGY STAR certified
Displays · model VS18478 · certified Dec 11, 2023 · United States, Japan, Canada, Taiwan, Switzerland
| Measurement | Value |
|---|---|
| On-mode power | 20.03 W |
| Sleep-mode power | 0.4 W |
| Off-mode power | 0.37 W |
