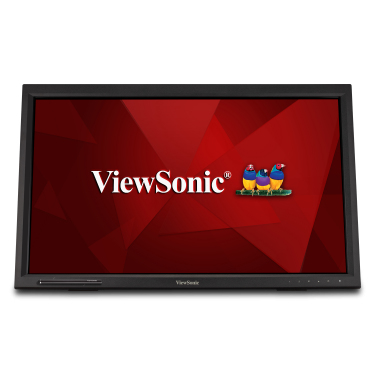

TD2423D computer monitor
61 cm (24") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Model TD2423DEAN 766907011685
67 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
- USB upstream port typeUSB Type-B
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- USB upstream port type
- USB Type-B
- Brand
- Viewsonic
- Category
- Monitor
- Model
- TD2423D
- Part number
- TD2423D
- EAN / UPC
- 766907011685
- Also known as
- Viewsonic TD2423D computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Specifications
67 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | MVA |
| LED backlight | Yes |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 7 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Digital horizontal frequency | 24 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Headphone out | Yes |
| Microphone in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | -22 - 38° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 21.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 571 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 348 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 571 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 348 mm |
| Weight (without stand) | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 645 mm |
| Package depth | 166 mm |
| Package height | 422 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
