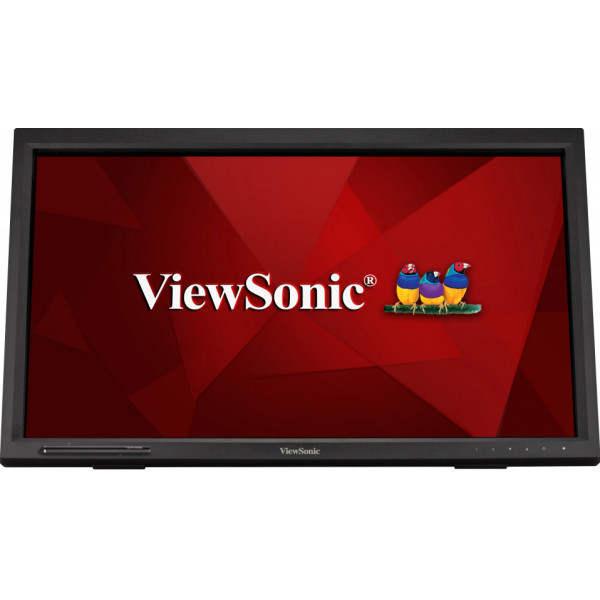

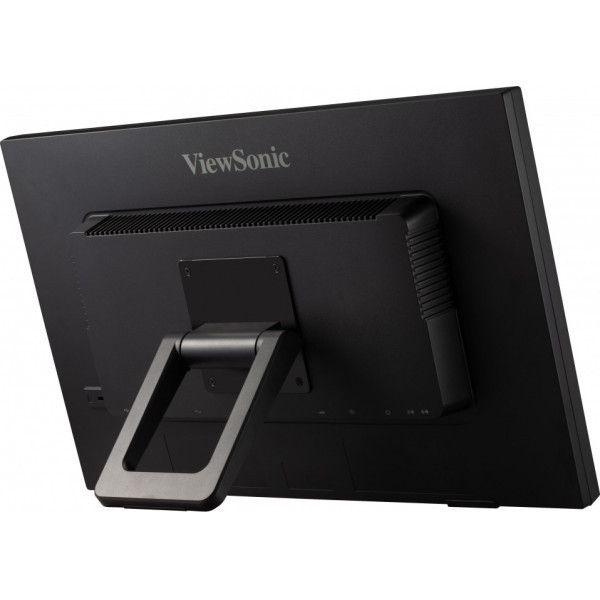

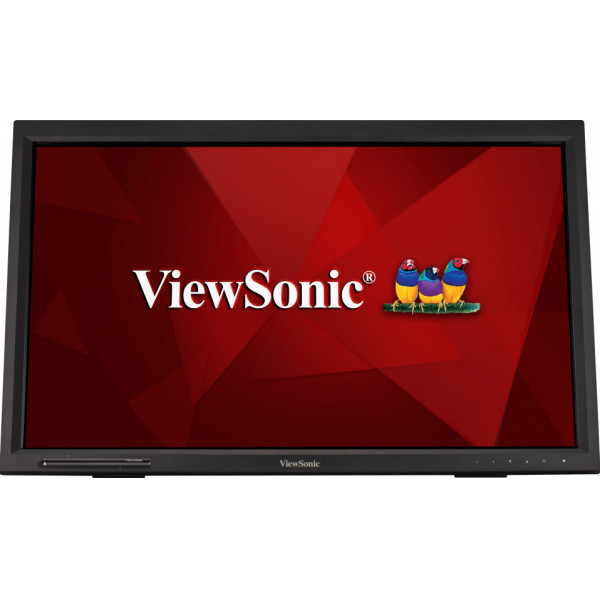

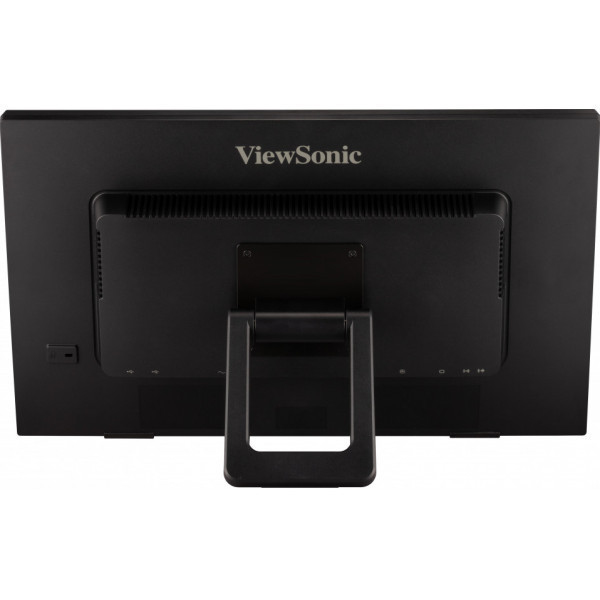

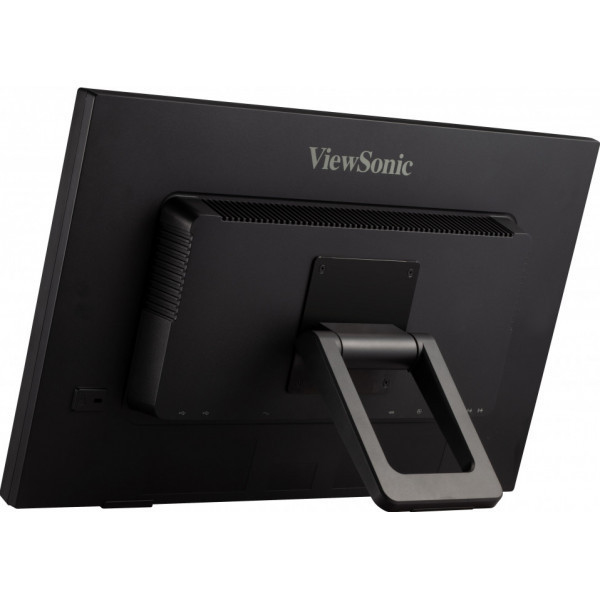

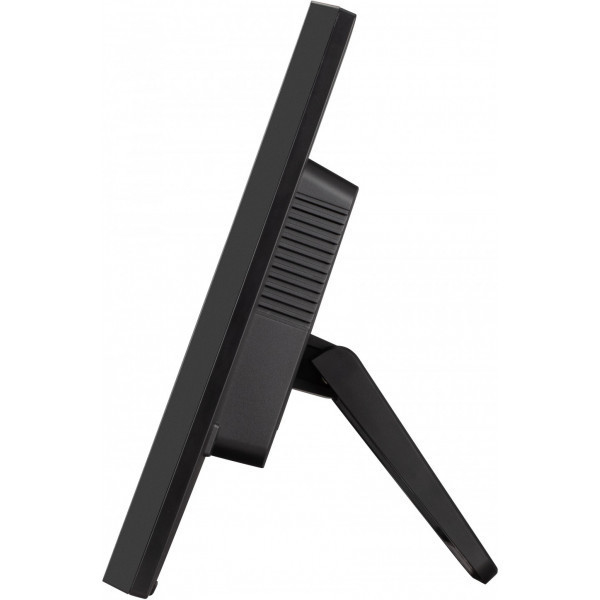

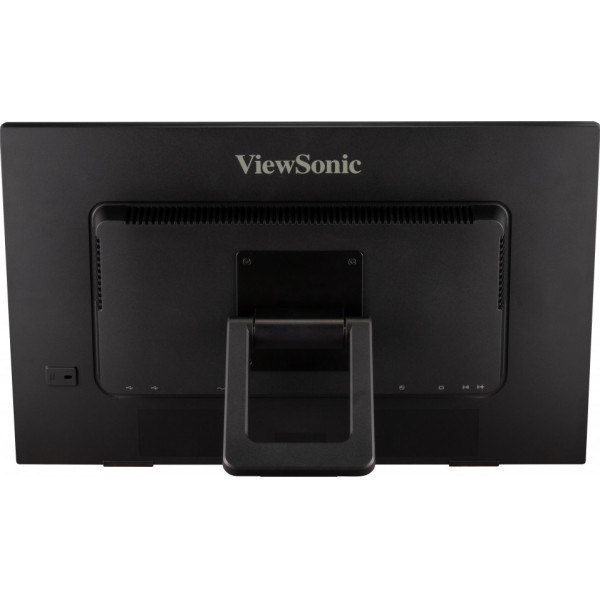

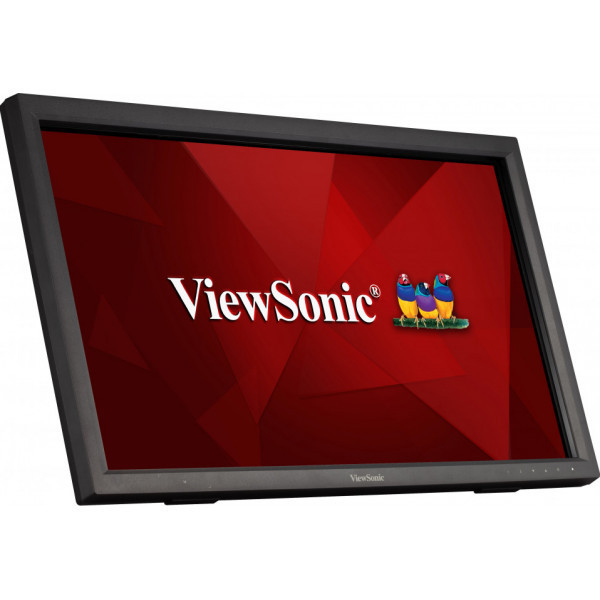

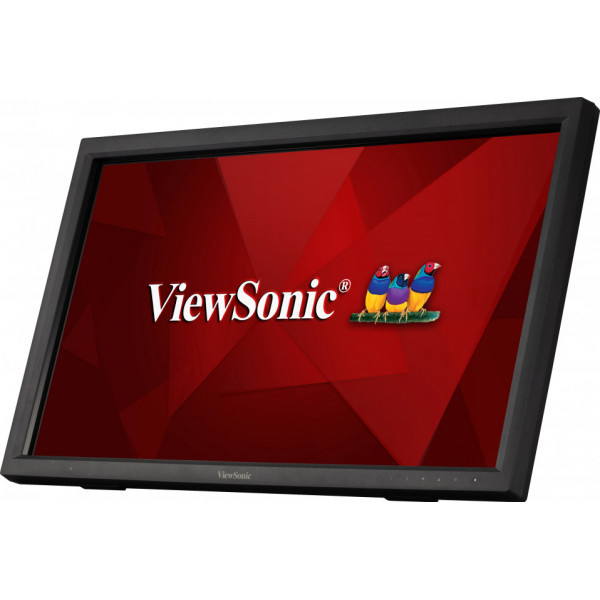

TD2423 computer monitor
59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Model TD2423EAN 766907008654
88 specifications Checked today
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- Energy classD
- Weight5.2 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Energy class
- D
- Weight
- 5.2 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- Viewsonic
- Category
- Monitor
- Model
- TD2423
- Part number
- TD2423
- EAN / UPC
- 766907008654, 4589468730989
- Also known as
- Viewsonic TD2423 computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Specifications
88 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | VA |
| Touchscreen type | Multi-user |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 7 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.271 x 0.271 mm |
| Digital horizontal frequency | 24 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 59.94 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 1.85 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | 1 |
| Audio output | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 22 - 38° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 15.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (max) | 16.5 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 571 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 348 mm |
| Weight (with stand) | 5.2 kg |
| Width (without stand) | 571 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 348 mm |
| Weight (without stand) | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 645 mm |
| Package depth | 166 mm |
| Package height | 422 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Display viewable area (HxV) | 521 x 293 mm |
| Weight | 5.2 kg |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.24 m |
| Harmonized System (HS) code | 8528521000 |
