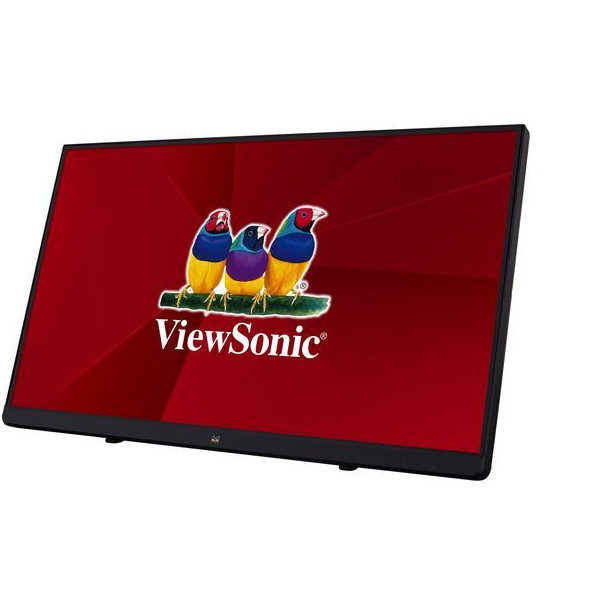

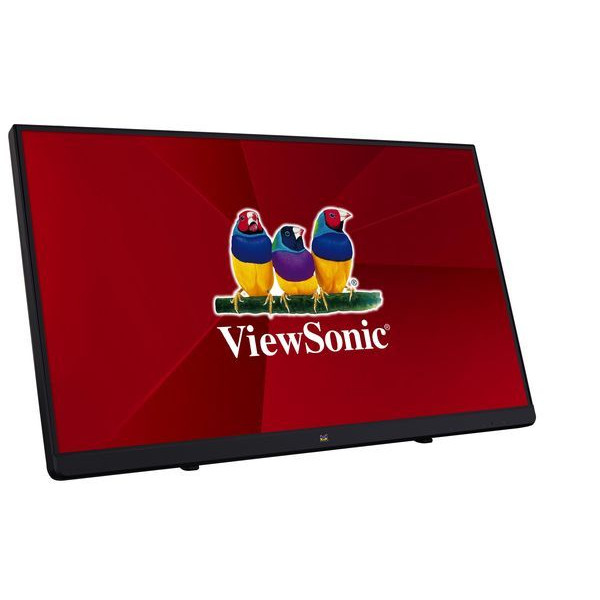

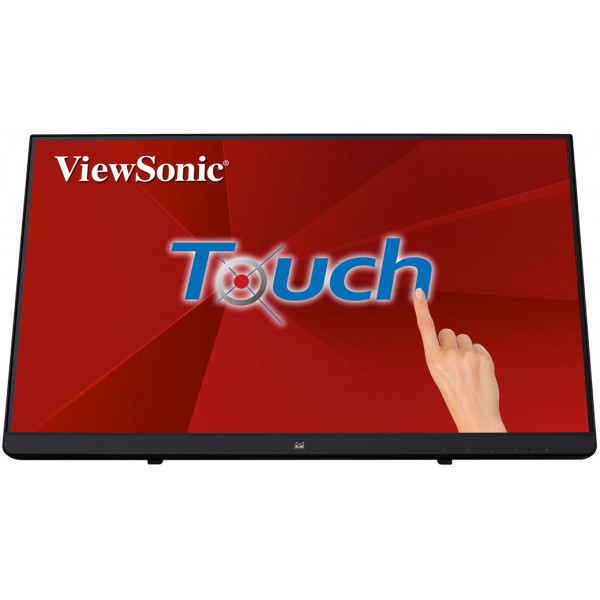

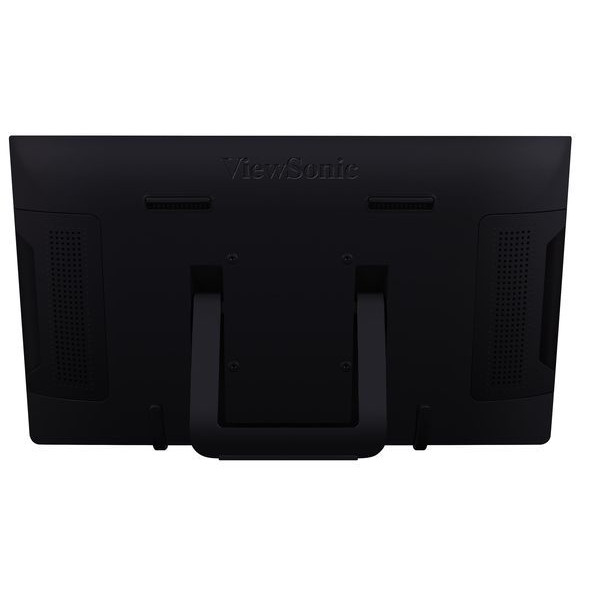

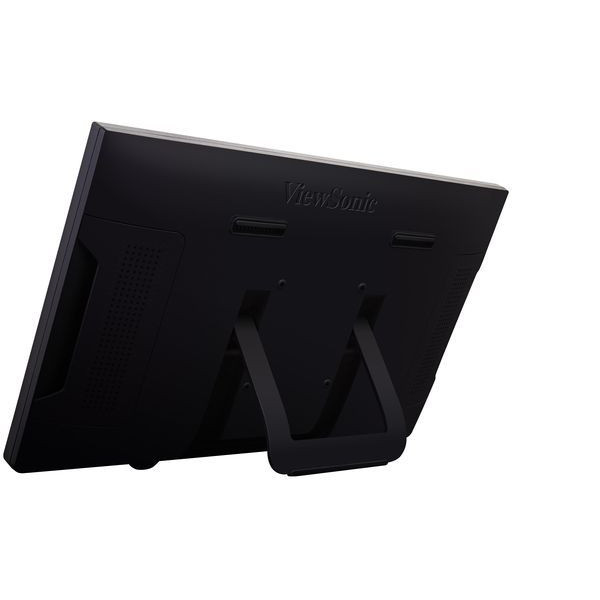

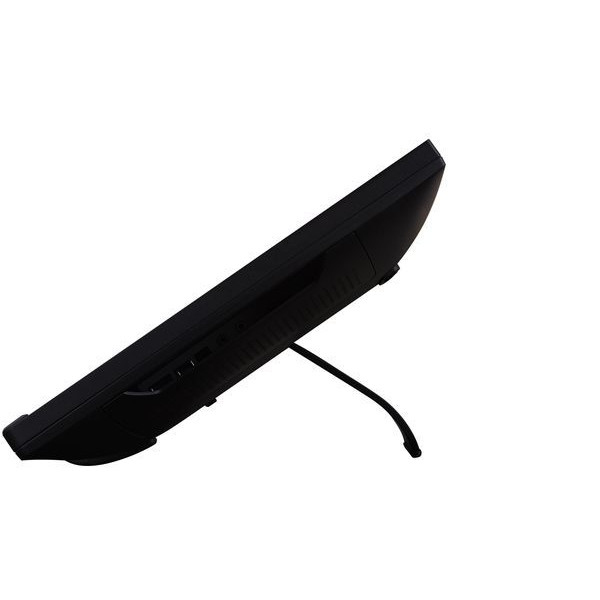

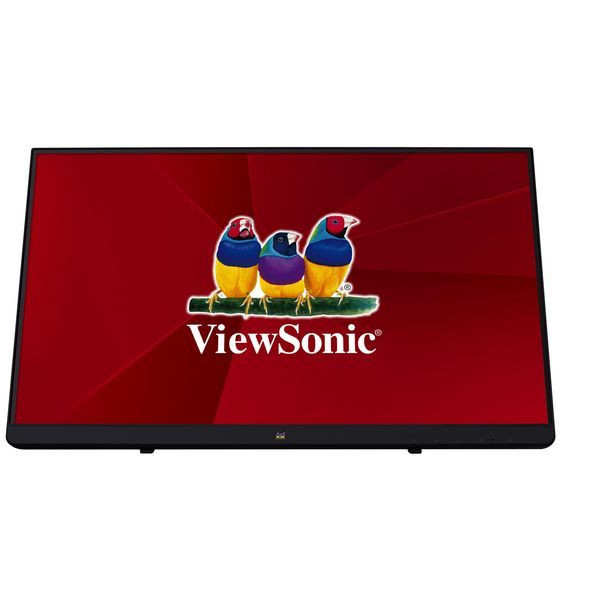

TD2230 computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Model TD2230EAN 766907842418
90 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight3.6 kg
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 3.6 kg
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- Viewsonic
- Category
- Monitor
- Model
- TD2230
- Part number
- TD2230
- EAN / UPC
- 766907842418
- Also known as
- Viewsonic TD2230 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Specifications
90 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | ADS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 76 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 76 Hz |
| Display diagonal (metric) | 54.6 cm |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

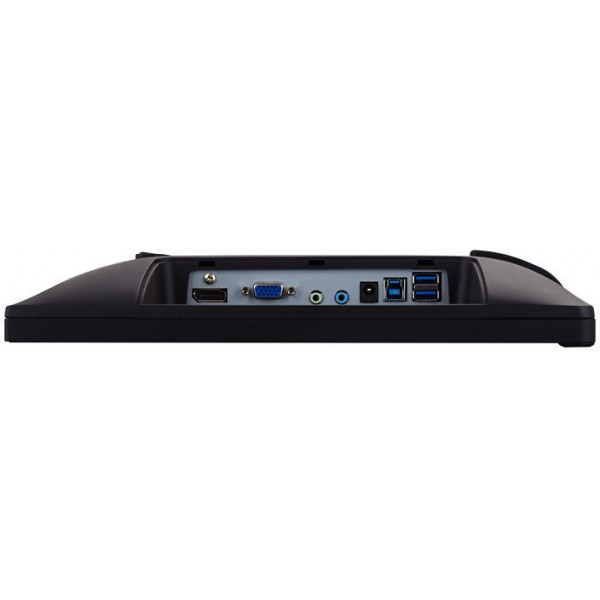

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |

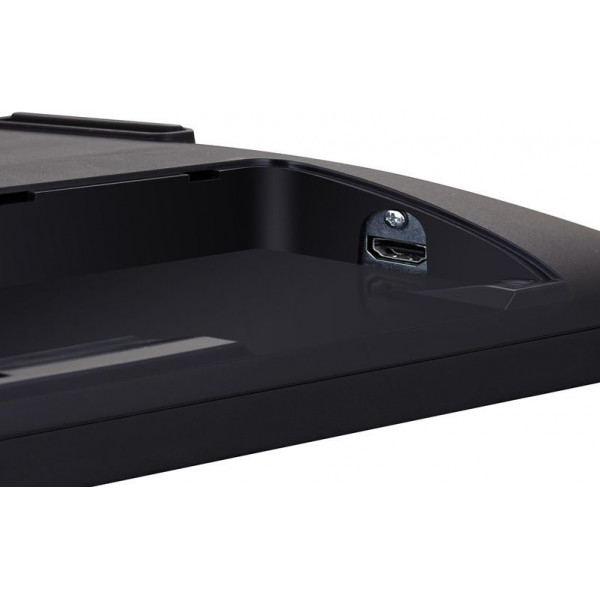

| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | 1 |
| Audio output | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 20 - 70° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 490 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 299 mm |
| Weight (with stand) | 3.58 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 114 mm |
| Package height | 371 mm |
| Package weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), HDMI, USB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Bronze, ErP |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Display viewable area (HxV) | 476.64 x 268.11 mm |
| Weight | 3.6 kg |
| Certification | cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 197.5 cm |
| Harmonized System (HS) code | 8528521000 |
