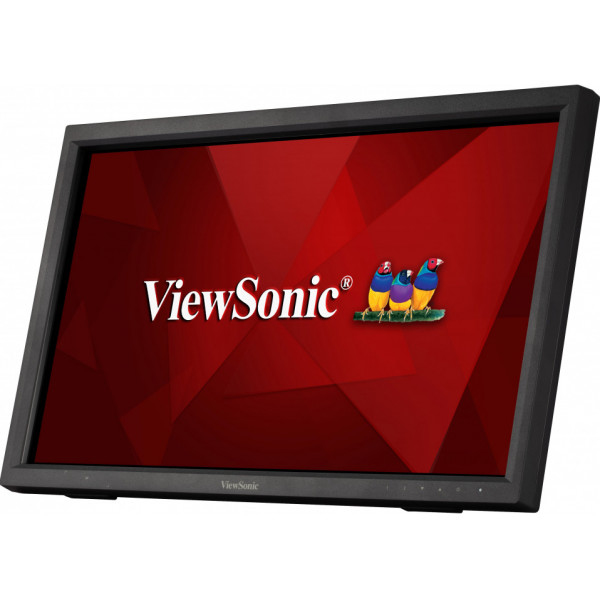

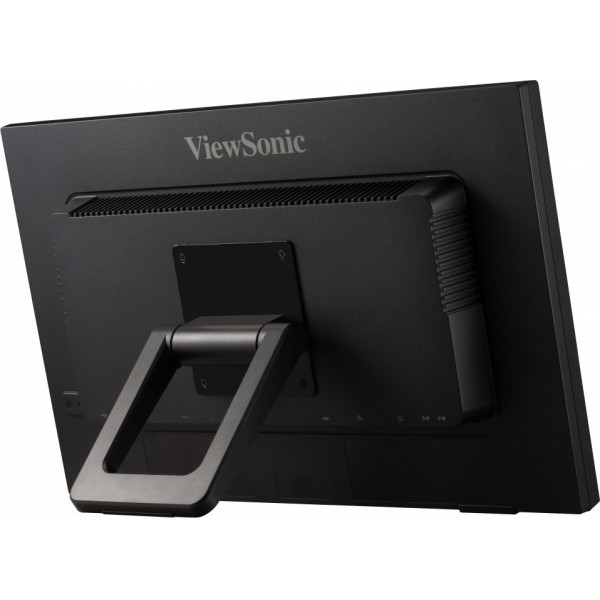

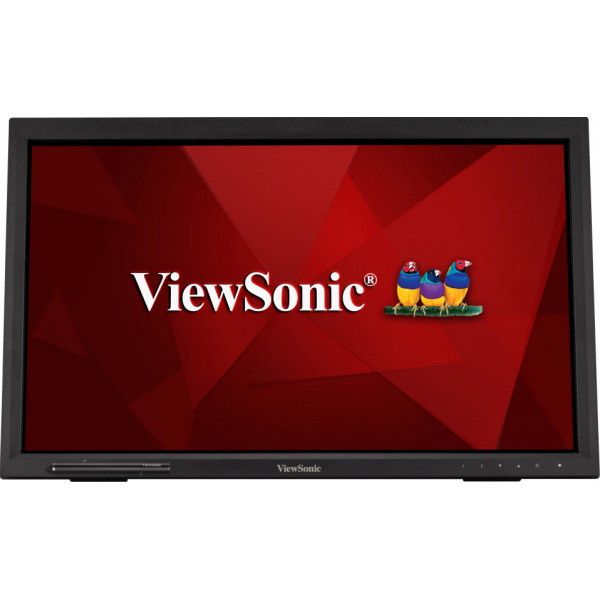

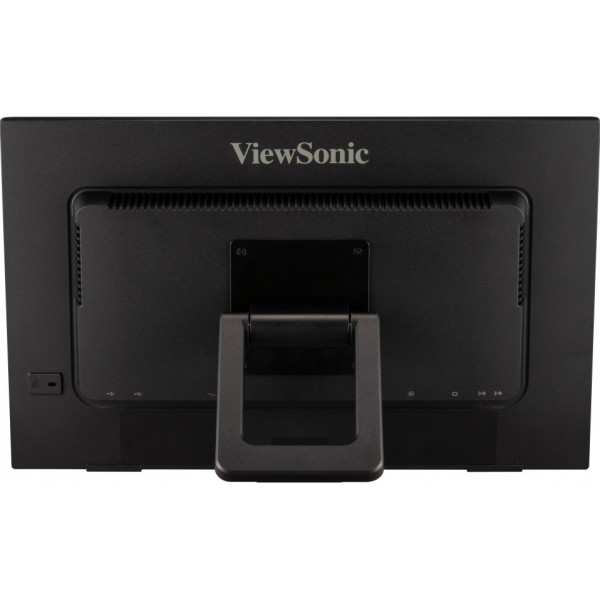

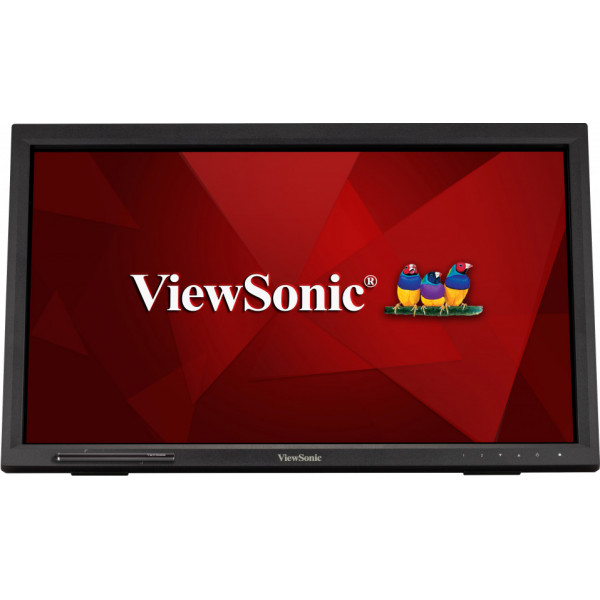

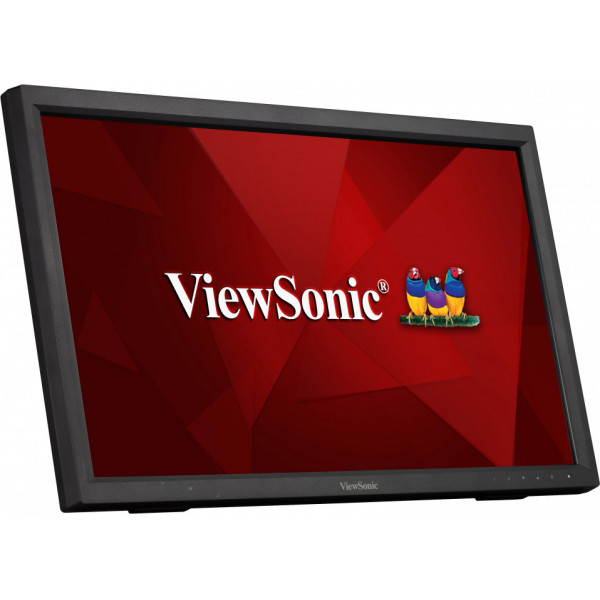

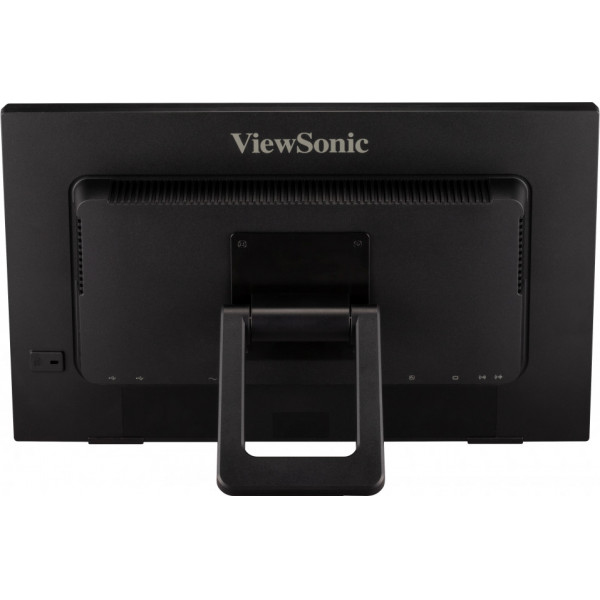

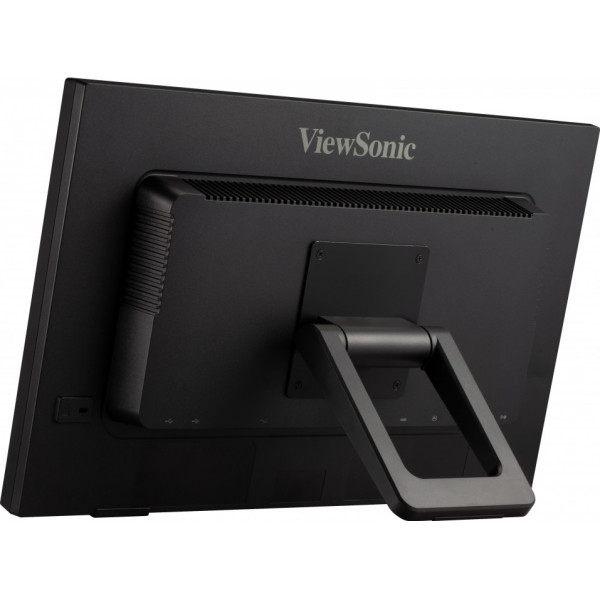

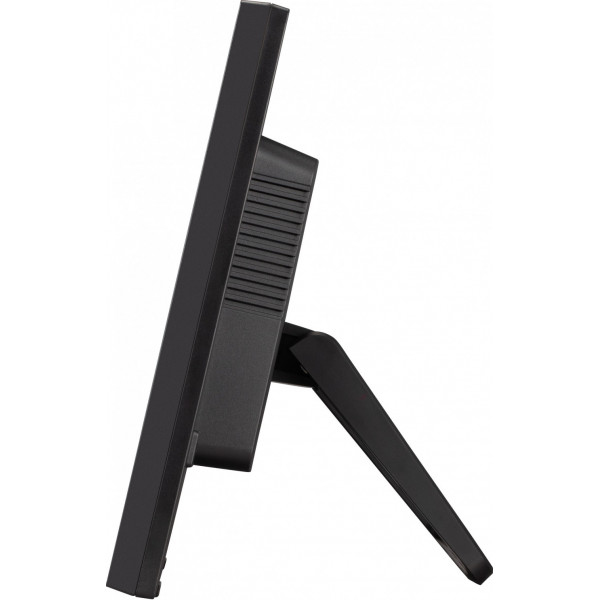

TD2223 computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Model TD2223EAN 5715063205907
82 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classE
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- Viewsonic
- Category
- Monitor
- Model
- TD2223
- Part number
- TD2223
- EAN / UPC
- 5715063205907
- Also known as
- Viewsonic TD2223 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Specifications
82 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TN |
| Touchscreen type | Multi-user |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Glass thickness | 2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 22 - 38° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 12.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 14 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 521 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 334 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 521 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 318 mm |
| Weight (without stand) | 3.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 580 mm |
| Package depth | 164 mm |
| Package height | 405 mm |
| Package weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | REACH, RoHS |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
