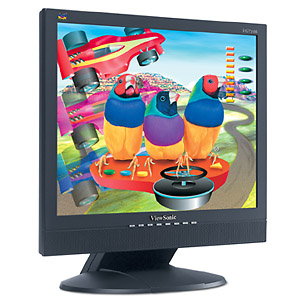

17IN LCD 1280X1024 82HZ
Model 17IN LCD 1280X1024 82HZPart no. VG710B
28 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Market positioningBusiness
- Panel mounting interface100 x 100 mm
- Power consumption (typical)36 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Market positioning
- Business
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 36 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Viewsonic
- Category
- Monitor
- Model
- 17IN LCD 1280X1024 82HZ
- Part numbers
- VG710B, VG710S
- Also known as
- Viewsonic 17IN LCD 1280X1024 82HZ computer monitor 43.2 cm (17") 1280 x 1024 pixels
Specifications
28 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 16 ms |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 120° |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 85 Hz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Surface treatment | Anti-glare |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | Signal 15-pin mini D-sub, DVI-D Audio 3.5mm audio line-in Power 3-pin AC plug |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 378 mm |
| Depth (without stand) | 177 mm |
| Height (without stand) | 405 mm |
| Weight (without stand) | 5.3 kg |
Other features
| Specification | Value |
|---|---|
| Compatibility | PC: VGA up to 1280x1024. Mac: Power Mac G3/G4 up to 1280x1024 |
| Audio system | Speakers 2x3-watts. Amplifier 3 watts @1kHz |
| Power management | Meets TCO’03 (VG710s), TCO’99 (VG710b) and ENERGY standards. |
| Certification | TCO´03 (VG710s), TCO´99 (VG710b), TÜV/GS, ISO 13406-2 (class 2) TÜV-S, TÜV/Ergo, UL, CUL, FCC-B, CB REPORT, CE, EPA, NOM, NEMKO, SEMKO, DEMKO, FIMKO, GOST-R, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, ENERGY |
| Supplied AC adapter type | LCD |
