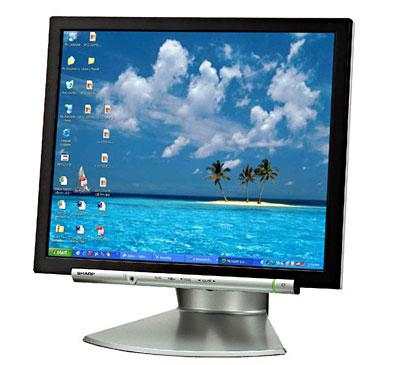

LL-172A-B computer monitor
43.2 cm (17") 1280 x 1024 pixels LCD Black, Silver
Model LL-172A-BPart no. LL-172AB
52 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack, Silver
- Built-in speaker(s)Yes
- USB Type-A downstream ports quantity0
- Cable lock slotNo
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black, Silver
- Built-in speaker(s)
- Yes
- USB Type-A downstream ports quantity
- 0
- Cable lock slot
- No
- Brand
- Sharp
- Category
- Monitor
- Model
- LL-172A-B
- Part number
- LL-172AB
- Also known as
- Sharp LL-172A-B computer monitor 43.2 cm (17") 1280 x 1024 pixels LCD Black, Silver
Specifications
52 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Touchscreen | No |
| Panel type | TFT |
| Display brightness (typical) | 300 cd/m² |
| Response time | 16 ms |
| Display surface | Matt |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 450:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| 3D | No |
| Video input impedance | 75 Ω |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 0 |
| Audio input | Yes |
| Headphone out | Yes |
| HDCP | No |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 1 W |
| Power consumption (max) | 35 W |
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight (with stand) | 6 kg |
| Width (without stand) | 374 mm |
| Depth (without stand) | 205 mm |
| Height (without stand) | 374 mm |
| Weight (without stand) | 4.2 kg |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Supplied AC adapter type | LCD |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
