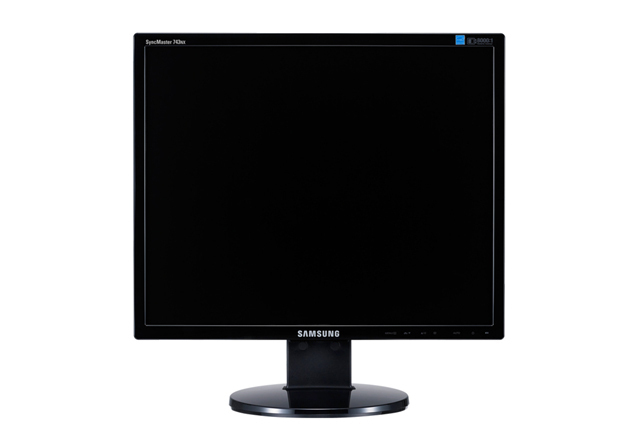

SyncMaster 743NX
Model SyncMaster 743NXPart no. LS17MYAKF
36 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Mac operating systems supportedYes
- Built-in speaker(s)No
- USB Type-A downstream ports quantity0
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Mac operating systems supported
- Yes
- Built-in speaker(s)
- No
- USB Type-A downstream ports quantity
- 0
- Brand
- Samsung
- Category
- Monitor
- Model
- SyncMaster 743NX
- Part number
- LS17MYAKF
- Also known as
- Samsung SyncMaster 743NX computer monitor 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
36 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Sync-on-green (SOG) | Yes |
| Colour gamut standard | sRGB |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDCP | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 368 mm |
| Depth (with stand) | 185 mm |
| Height (with stand) | 386.2 mm |
| Width (without stand) | 388 mm |
| Depth (without stand) | 185 mm |
| Height (without stand) | 386.2 mm |
| Weight (without stand) | 3.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Compliance industry standards | DDC 2B |
