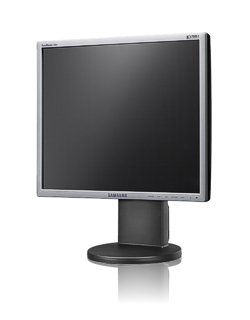

SyncMaster 743B
Model SyncMaster 743BPart no. 743BEAN 729507802794
25 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface75 x 75 mm
- Power consumption (typical)30 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 75 x 75 mm
- Power consumption (typical)
- 30 W
- Brand
- Samsung
- Category
- Monitor
- Model
- SyncMaster 743B
- Part number
- 743B
- EAN / UPC
- 729507802794
- Also known as
- Samsung SyncMaster 743B computer monitor 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
25 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 50 - 85 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 307.4 mm |
| Depth (without stand) | 65.5 mm |
| Height (without stand) | 368 mm |
| Weight (without stand) | 4.75 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | DDC 2B |
| Certification | TÜV GS, CE, ISO 13406/2, TCO '03 |
