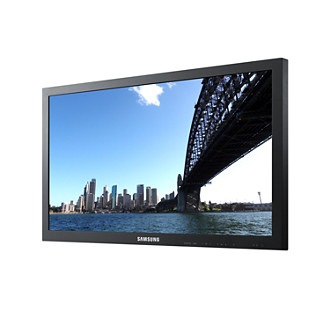

SyncMaster 230Mxn
Model SyncMaster 230MxnPart no. LH23PTSMBCEAN 8806071552231
67 specifications Checked today
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorAMD Athlon II X2
- Memory1024 MB
- OSWindows Embedded Standard
- ColourBlack
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Athlon II X2
- Memory
- 1024 MB
- OS
- Windows Embedded Standard
- Colour
- Black
- Brand
- Samsung
- Category
- Monitor
- Model
- SyncMaster 230Mxn
- Part number
- LH23PTSMBC
- EAN / UPC
- 8806071552231
- Also known as
- Samsung SyncMaster 230Mxn computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD Black
Specifications
67 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.265 x 0.265 mm |
| Horizontal scan range | 31 - 75 kHz |
| Vertical scan range | 60 - 75 Hz |
| 3D | No |
| Separate H/V sync | Yes |
| Composite sync | Yes |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDCP | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| On Screen Display (OSD) | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 640 mm |
| Depth (with stand) | 192 mm |
| Height (with stand) | 418 mm |

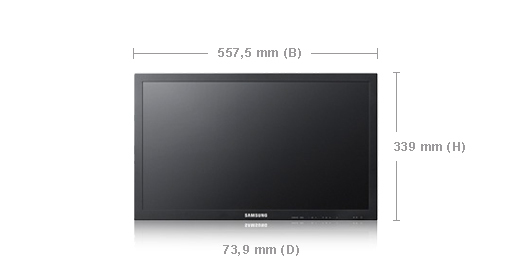

| Width (without stand) | 557.5 mm |
| Depth (without stand) | 73.9 mm |
| Height (without stand) | 339 mm |
| Weight (without stand) | 7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Audio system | Realtek ALC262 |
| TV tuner integrated | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | FCC 15, EN55022, EN55024VCCI V-3, KCC, KN22, KN24BSMI, CNS13438, UL, UL 60950-1CSA, CSA C22.2 No. 60950-1 TUV, EN60950-1NEMKO, EN60950-1 KC, K60950-1 CCC, GB 4943-2001PSB, IEC60950-1GOST, IEC60950-1, EN55022PCBC, IEC60590-1, EN55022NOM, NOM-019-SCFI-1993IRAM, IEC60950-1SASO, IEC60950-1 |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | Yes |
| Processor family | AMD Athlon II X2 |
| Processor model | 245e |
| Processor frequency | 2.9 GHz |
| Motherboard chipset | AMD RS780 |
| Motherboard southbridge | AMD SB700 |
| Internal memory | 1024 MB |
| Internal memory type | DDR2 |
| Graphics card | Radeon HD 3200 |
