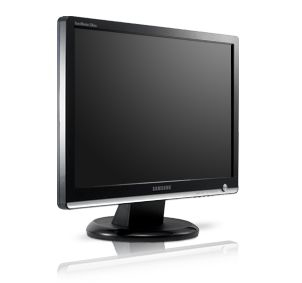

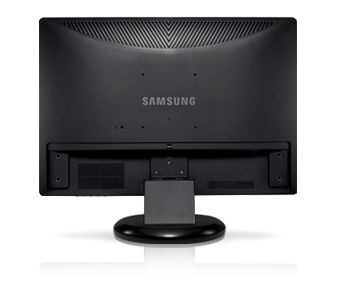

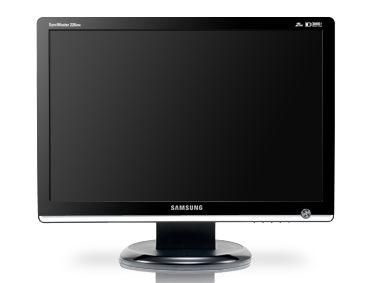

Syncmaster 226BW TFT Display
Model Syncmaster 226BW TFT DisplayPart no. LS22MEWSPV
28 specifications Checked yesterday
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)55 W
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 55 W
- Brand
- Samsung
- Category
- Monitor
- Model
- Syncmaster 226BW TFT Display
- Part number
- LS22MEWSPV
- Also known as
- Samsung Syncmaster 226BW TFT Display computer monitor 55.9 cm (22") 1680 x 1050 pixels Black
Specifications
28 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 2 ms |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.282 |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 55 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 422 mm |
| Depth (with stand) | 219.3 mm |
| Height (with stand) | 514.6 mm |
| Width (without stand) | 353.3 mm |
| Depth (without stand) | 514.6 mm |
| Height (without stand) | 63 mm |
| Weight (without stand) | 4.9 kg |
Other features
| Specification | Value |
|---|---|
| Power management | VESA, EPA, Nutek |
| Compliance industry standards | DDC 2B |
| Supplied AC adapter type | LCD |
