Samsung SyncMaster 226BW

SyncMaster 226BW

Model SyncMaster 226BWPart no. LS22MEWSFVEAN 8808987057343

42 specifications Checked today

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
USB Type-A downstream ports quantity0
Panel mounting interface100 x 100 mm
Power consumption (typical)55 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
USB Type-A downstream ports quantity: 0
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 55 W

Brand: Samsung
Category: Monitor
Model: SyncMaster 226BW
Part number: LS22MEWSFV
EAN / UPC: 8808987057343
Also known as: Samsung SyncMaster 226BW computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

42 specifications in 9 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	2 ms
Aspect ratio	16:10
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	30 - 81 kHz
Vertical scan range	56 - 75 Hz
Sync-on-green (SOG)	Yes
Separate H/V sync	Yes
Composite sync	Yes

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
Microphone in	No

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Swivel angle range	Yes
Tilt angle range	Yes
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	55 W
Power consumption (standby)	2 W

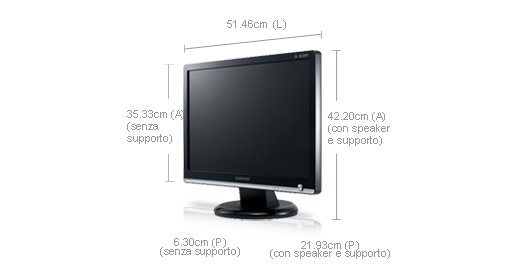

Weight & dimensions

Specification	Value
Width (with stand)	514.6 mm
Depth (with stand)	219.3 mm
Height (with stand)	422 mm
Weight (with stand)	4.9 kg
Width (without stand)	514.6 mm
Depth (without stand)	63 mm
Height (without stand)	353.3 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	606 x 158 x 488 mm
Package weight	7.4 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Other features

Specification	Value
Bandwidth	0.13 GHz
Special features	MagicTune MagicBright3
Certification	TCO'99, NUTEK, ISO 13406-2
Supplied AC adapter type	LCD, 1680x1050 @60Hz
