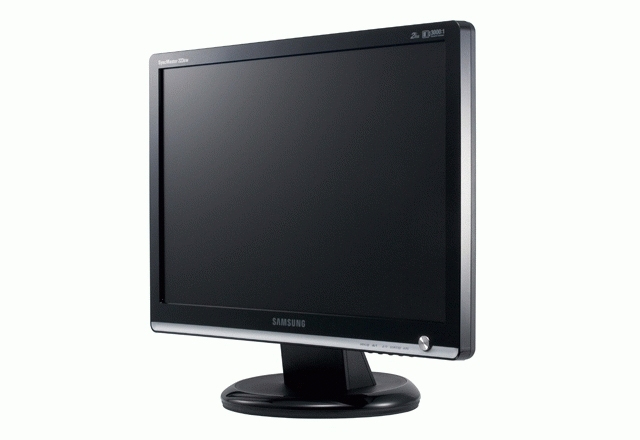

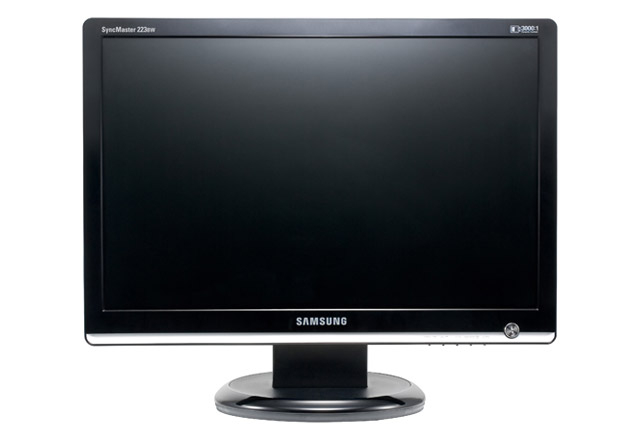

SyncMaster 223BW
Model SyncMaster 223BWPart no. SM223BW
26 specifications Checked today
- Display54.9 cm (21.6")
- Resolution1680 x 1050 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)50 W
Overview
- Display
- 54.9 cm (21.6")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 50 W
- Brand
- Samsung
- Category
- Monitor
- Model
- SyncMaster 223BW
- Part numbers
- SM223BW, 223BW
- Also known as
- Samsung SyncMaster 223BW computer monitor 54.9 cm (21.6") 1680 x 1050 pixels Black
Specifications
26 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.9 cm (21.6") |
| Display resolution | 1680 x 1050 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 3000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.276 x 0.276 mm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 514.6 mm |
| Depth (with stand) | 219.3 mm |
| Height (with stand) | 422 mm |
| Weight (without stand) | 4.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 606 x 488 x 158 mm |
| Package weight | 7.4 kg |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | DDC 2B |
