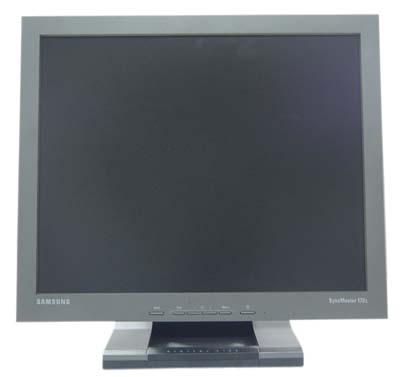

SyncMaster 172S
Model SyncMaster 172SPart no. M017ESDSZ
24 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- I/O ports15 pin D-sub
- Panel mounting interface100 x 100 mm
- Power consumption (typical)42 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- I/O ports
- 15 pin D-sub
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 42 W
- Brand
- Samsung
- Category
- Monitor
- Model
- SyncMaster 172S
- Part number
- M017ESDSZ
- Also known as
- Samsung SyncMaster 172S computer monitor 43.2 cm (17") 1280 x 1024 pixels Silver
Specifications
24 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 25 ms |
| Contrast ratio (typical) | 350:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 120° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 56 - 75 Hz |
| Pixel frequency | 135 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 15 pin D-sub |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 42 W |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 385 mm |
| Depth (without stand) | 396 mm |
| Height (without stand) | 216 mm |
| Weight (without stand) | 4.7 kg |
Other features
| Specification | Value |
|---|---|
| Certification | TCO'99 |
| Bundled hardware | VGA cabel Power adapter Wall mount |
