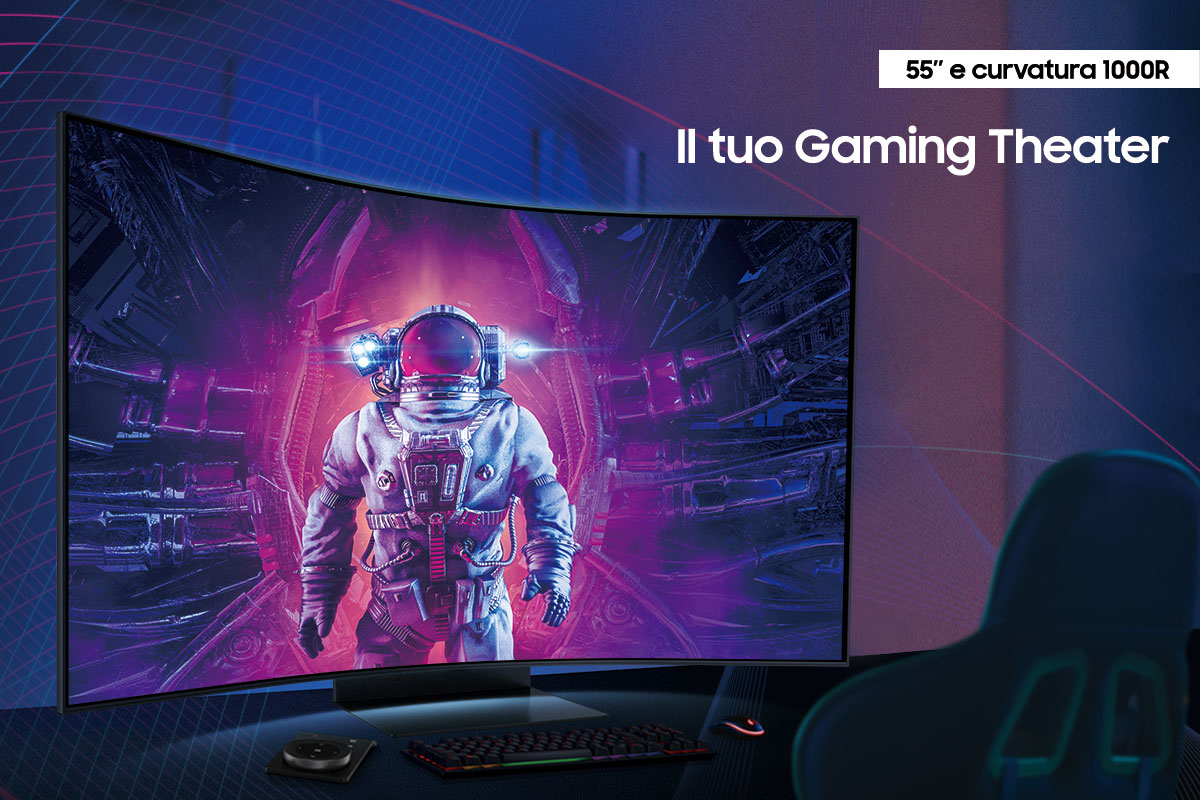

Samsung Odyssey ARK

Odyssey ARK

Model Odyssey ARKPart no. LS55BG970NUXENEAN 8592978421311

84 specifications Checked today

Display139.7 cm (55")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 139.7 cm (55")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Samsung
Category: Monitor
Model: Odyssey ARK
Part number: LS55BG970NUXEN
EAN / UPC: 8592978421311, 8806094408072
Also known as: Samsung Odyssey ARK computer monitor 139.7 cm (55") 3840 x 2160 pixels 4K Ultra HD Black

Specifications

84 specifications in 13 groups

Display

Specification	Value
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	4K Ultra HD
Panel type	VA
Display brightness (typical)	600 cd/m²
Response time	1 ms
Screen shape	Curved

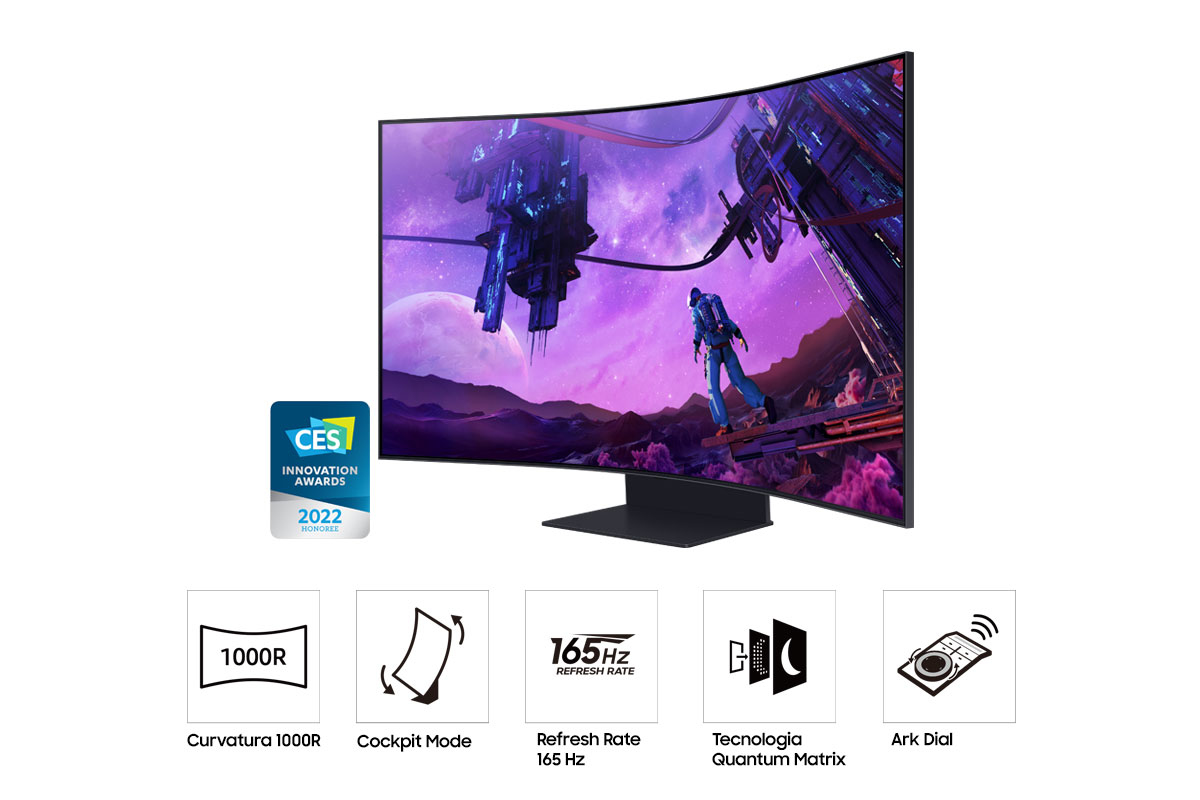

Screen curvature rating	1000R
Contrast ratio (typical)	1000000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1 billion colours
Viewable size, horizontal	121 cm
Viewable size, vertical	68 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Quantum HDR 2000

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium Pro
ConnectShare (USB)	Yes
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	4
Built-in camera	No
Adaptive Sound Control (ASC)	Yes

Design

Specification	Value
Market positioning	Gaming
Product colour	Black

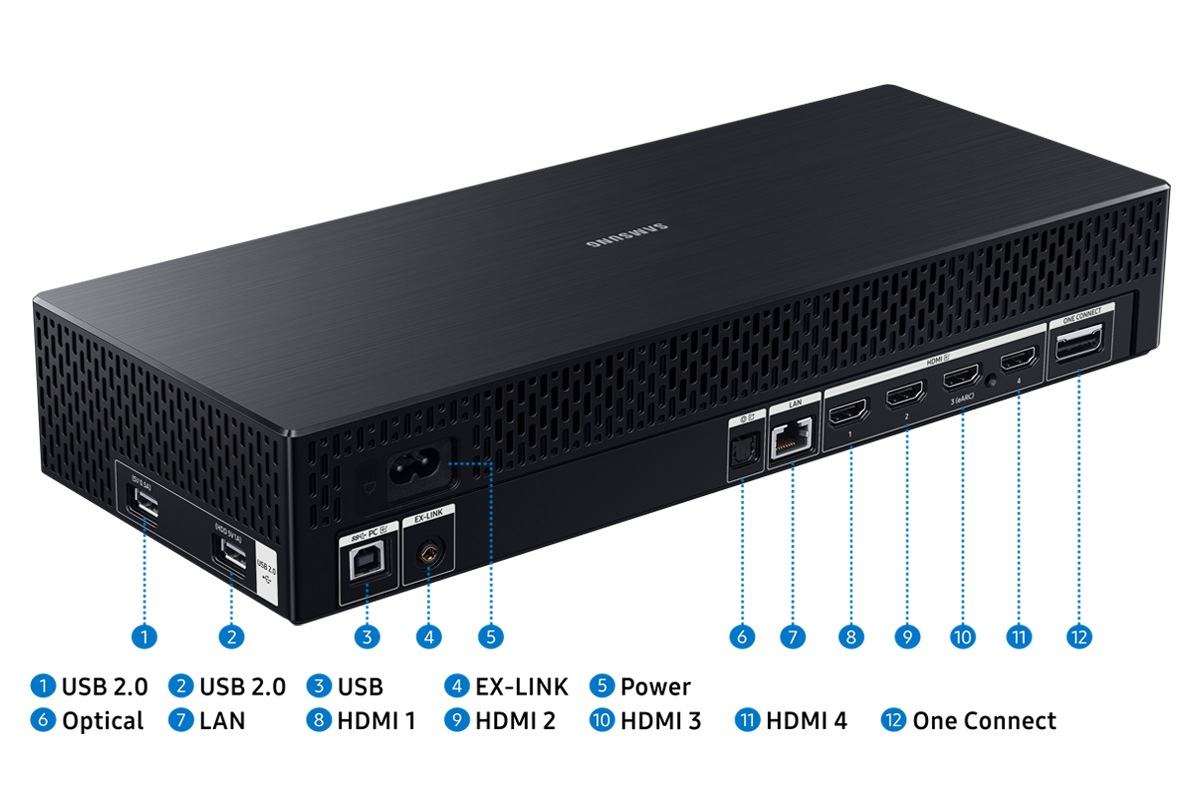

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	2
HDMI	Yes
HDMI ports quantity	4
HDMI version	2.1
Headphone out	Yes
HDCP	Yes
HDCP version	2.2
AC (power) in	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.2
Ethernet LAN	Yes

Ergonomics

Specification	Value
VESA mounting	No
Height adjustment	Yes
Pivot	Yes
Pivot angle	-90 - 90°
Tilt adjustment	Yes
Tilt angle range	-13 - 10°

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	84 kWh
Energy consumption (HDR) per 1000 hours	205 kWh
Power consumption (typical)	84 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%

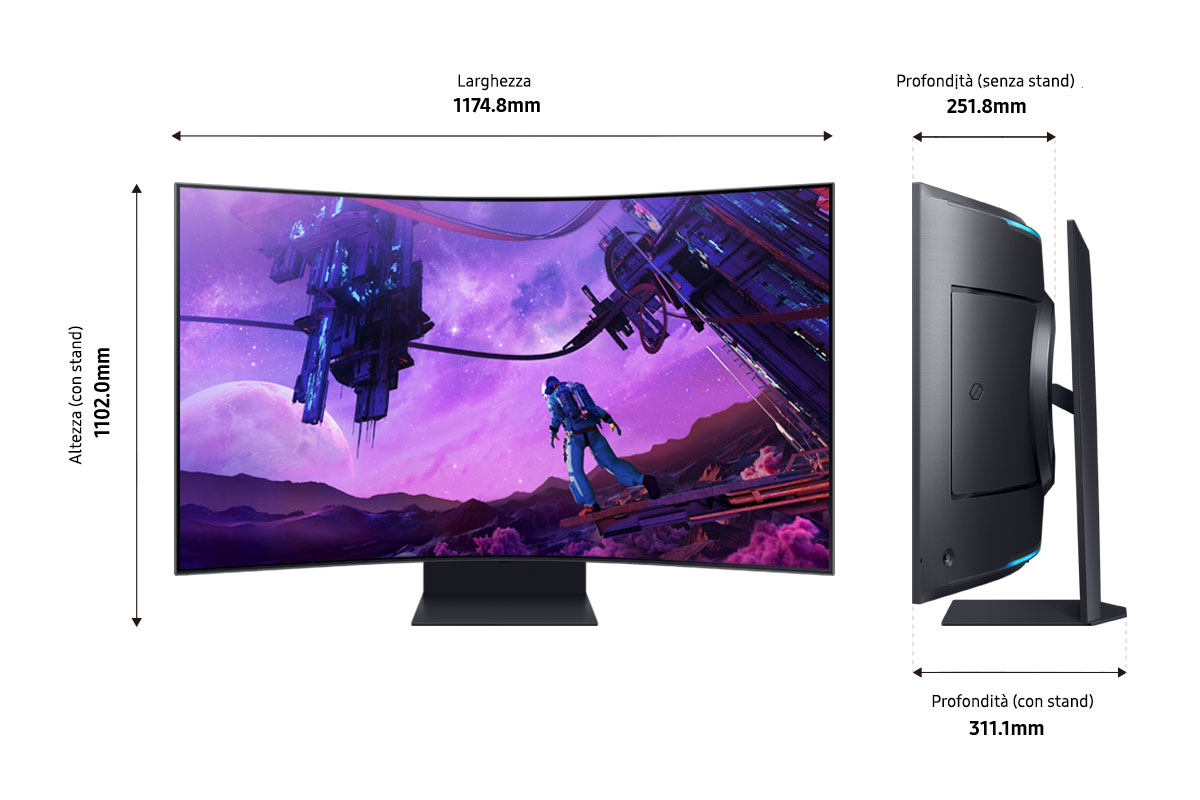

Weight & dimensions

Specification	Value
Width (with stand)	1174.8 mm
Depth (with stand)	379 mm
Height (with stand)	1102 mm
Weight (with stand)	41.5 kg
Width (without stand)	1174.8 mm
Depth (without stand)	251.8 mm
Height (without stand)	704.8 mm
Weight (without stand)	21.1 kg

Packaging data

Specification	Value
Package width	1362 mm
Package depth	317 mm
Package height	922 mm
Package weight	53.8 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, HDMI
Remote control included	Yes

Other features

Specification	Value
Sound mirroring	Yes
Screen mirroring	Yes
SmartThings app support	Yes
Tap view	Yes
Digital signal format system	DVB-T
